Remove the 6 mounting screws.
06-03
Screws
FITER PCB
DIODE BRIDGE
INVERTER PCB

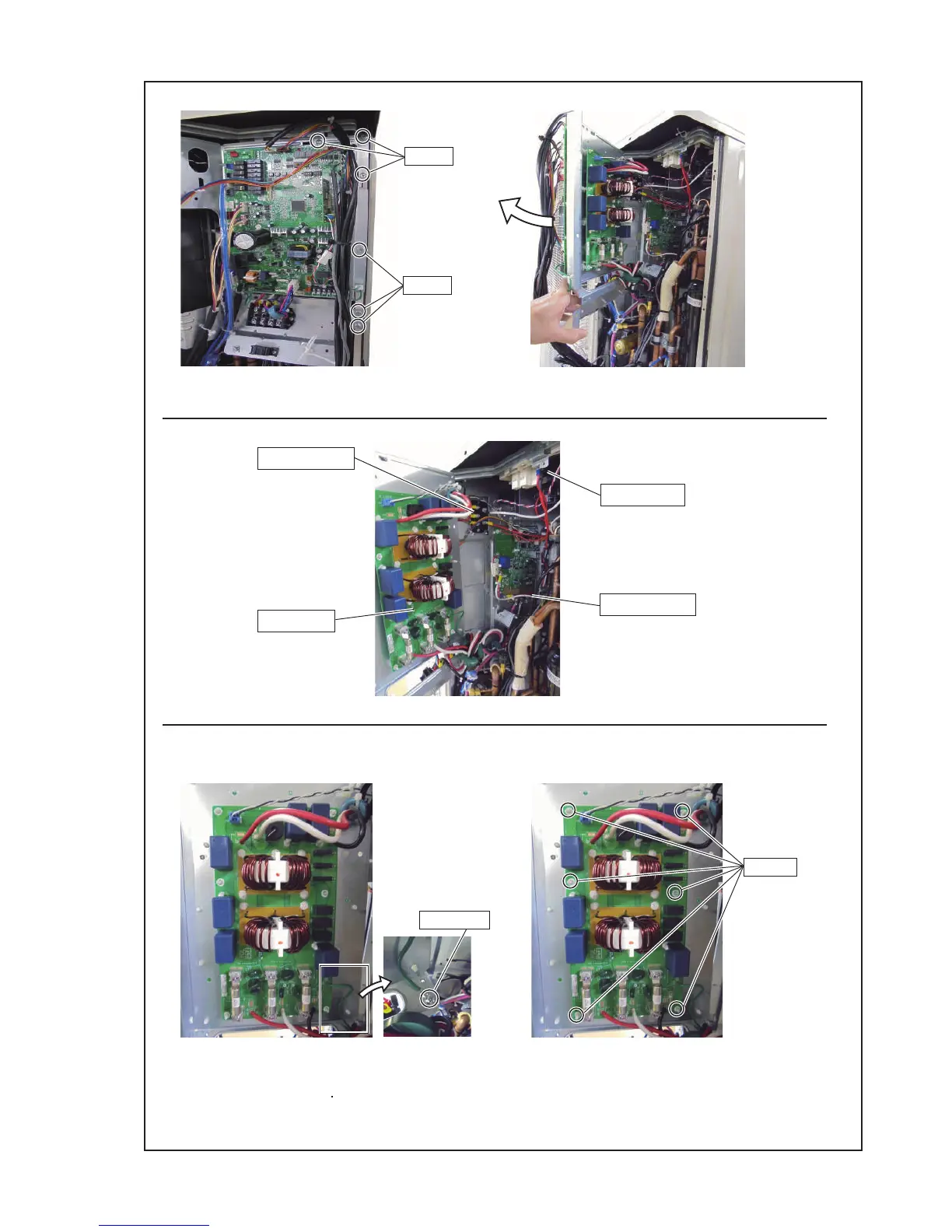

5. INVERTER PCB, FIL
TER PCB,
DIODE BRIDGE and POWER PCB
removal
Open the CONTROL
BOX (MAIN).
Remove the spacers.
(6 places)
Remove the connectors and Earth
screws.
Earth screw
Spacers
5
-1. FIL
TER PCB removal
Note the tightening torque
at the installation.
Tightening torque is 2.5 + 0.2N m.
(except for the earth screw)
-
Screws
POWER PCB
242
244
