2. Method of remove the Motor Assembly (UTZ-025B/ 080B/ 100B/ 025C/ 080C/ 100C)
05

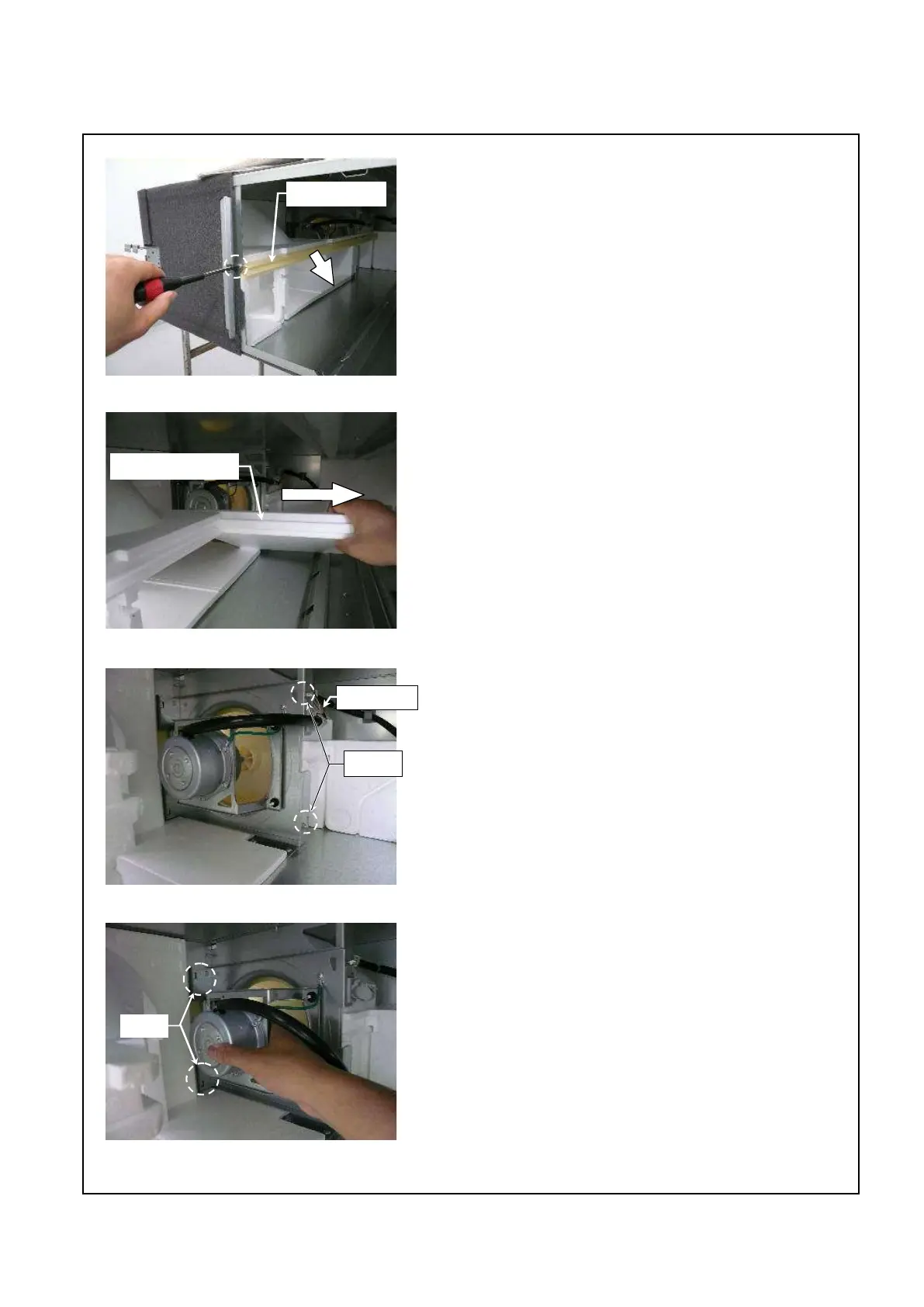

3: Pull the partition board A out to the direction of arrow.
1: Remove the filter and the Heat Exchange Element.
Refer to the attached "Method of remove the Heat
Exchange Element and the filter".
2: First remove the screw (1 piece) and then remove
the Grooved Rail.
5: Unhook the Motor ASSY.
4: Turn two pieces of screw on the Motor ASSY
and remove the wired connector.
Connector
Screw
Grooved Rail
Partition Board A
Hook
To Next Page
