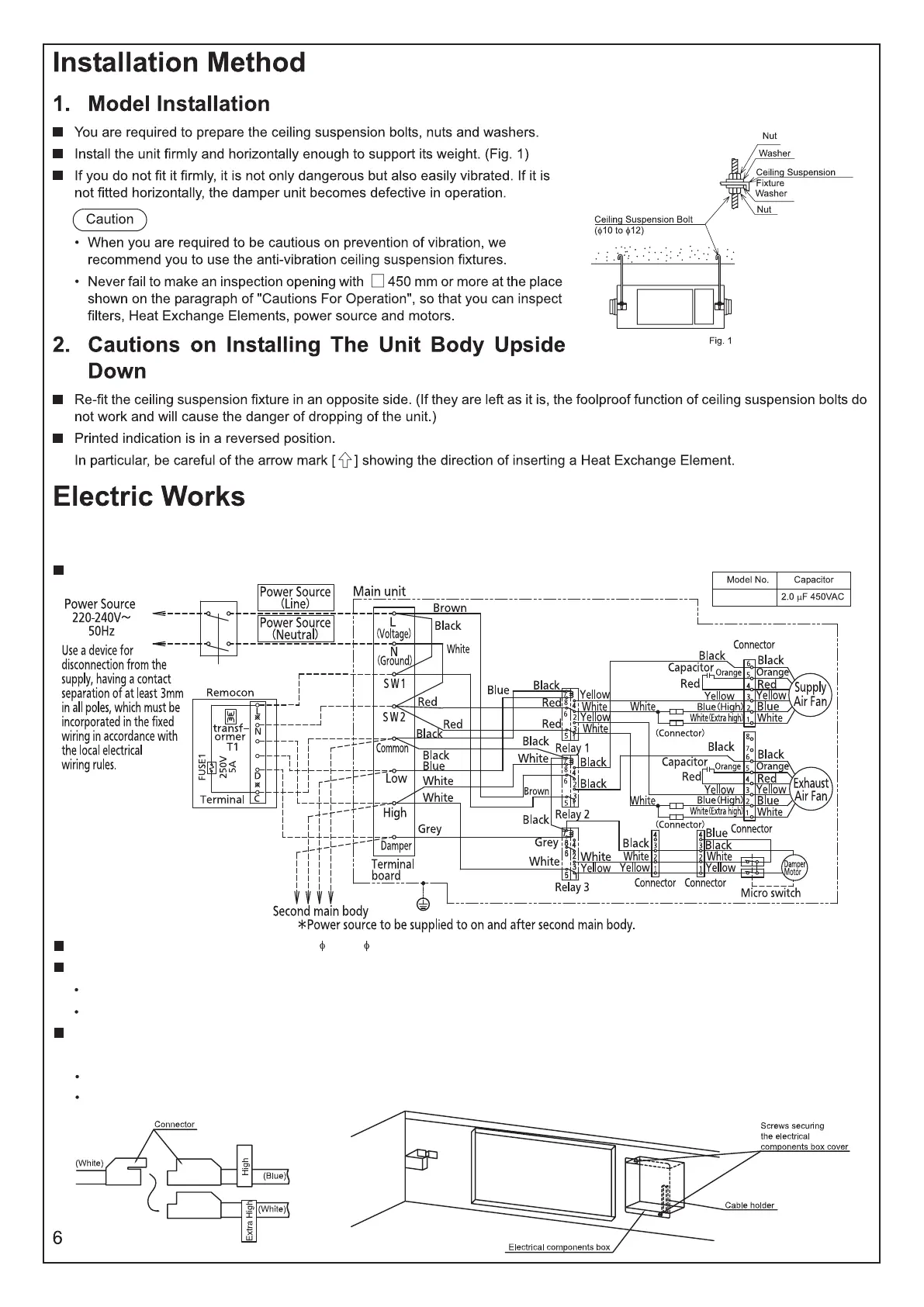

Ask a specialized electrical construction operator for advice regarding wiring in accordance with "Technical Standards for Electrical
Equipment"and"Interior Wiring Regulation".
Connect wires/cables indicated by broken lines.
For power supply,use a VVF cable with 1.6 or 2.
Take the following steps on connect wires/cables:
Remove two screws fixing the cover of the electrical components box,open the cover ,and connect wires/cables correctly.
Secure the cable drawn from the terminal board firmly with the cable holder.
If a large volume of air is requierd or a long duct is used ,switch the wire connection from Low to Extra high according to the
following steps:
Remove two screws securing the cover of the electrical components box, and open the cover .
In the electrical components box,change the connection of fan motor leads from High to Extra high.
UTZ-BD025C
Lo
Hi
