Assembly instructions of refrigerator
door handle:
1. Find the mounting studs in the
refrigerator. Thread by hand into
the receivers on the door face.
Tighten snug using an appropriate
screw driver.
2. Slide the handle over the mounting
studs - attempt to engage both studs
at the same time for ease of installation.
Do not force as damage could occur.
Ensure the threaded set screw holes
are facing a direction which is less
easily viewed.
3. Using an Allen / hex key, tighten
the set screws through the threaded
holes on the handles until handles
are firmly secured to the door face.
Assembly instructions of the
freezer drawer handle:
Attach the freezer handles in the
same manner as the fridge door
handles. Refer to the diagram to
ensure you are installing the
appropriate handle for each door /
drawer as they are different.

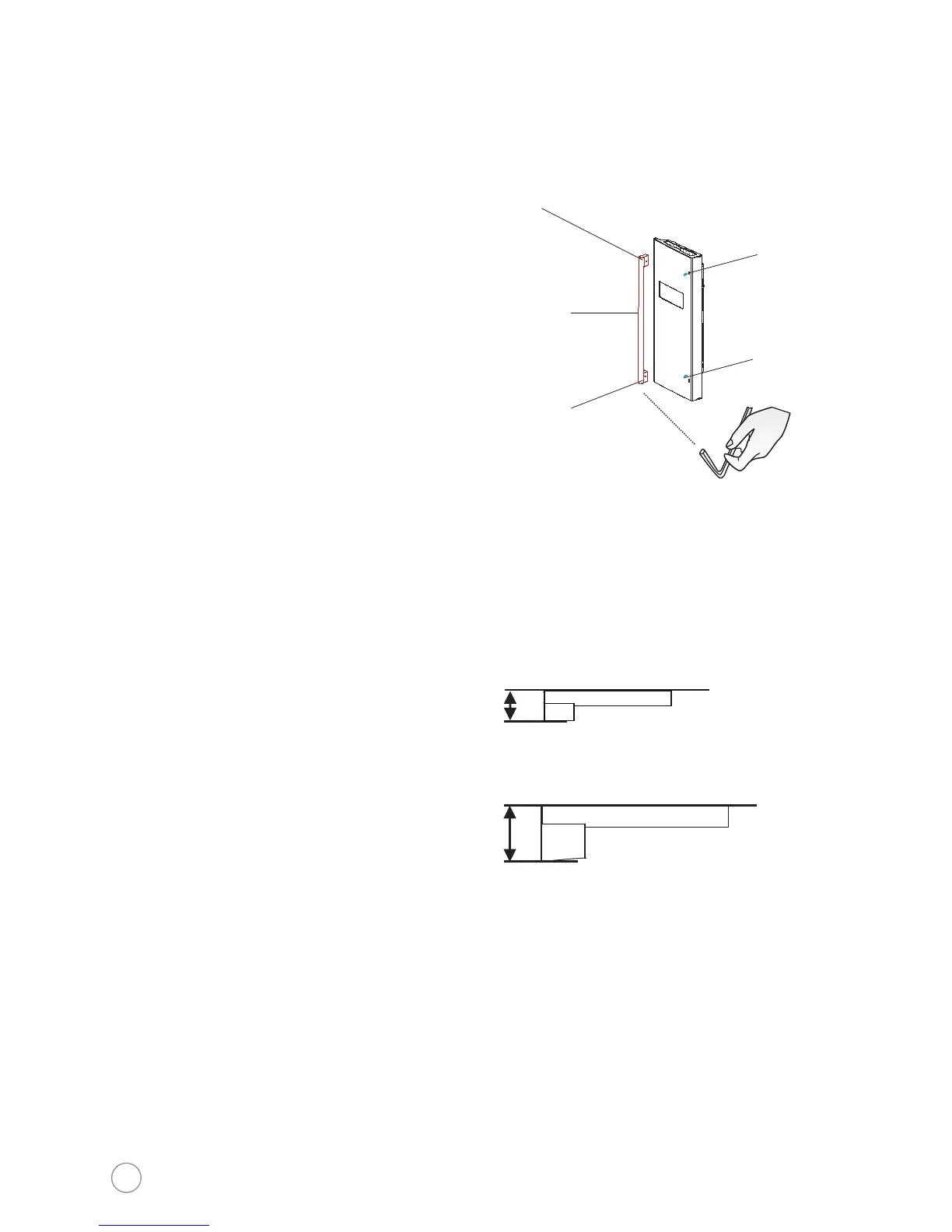

Handle Installation
Handle Installation
Difference between the chilling and refrigeration
handle: lie them flat, the one with higher chordal
height is the refrigeration handle
Freezer drawer handle
Refrigeration door handle
78
61
Inner socket head cap
screw for handle fixing
refrigerator
door handle
Inner socket head cap
screw for handle fixing
Bolt
Bolt
