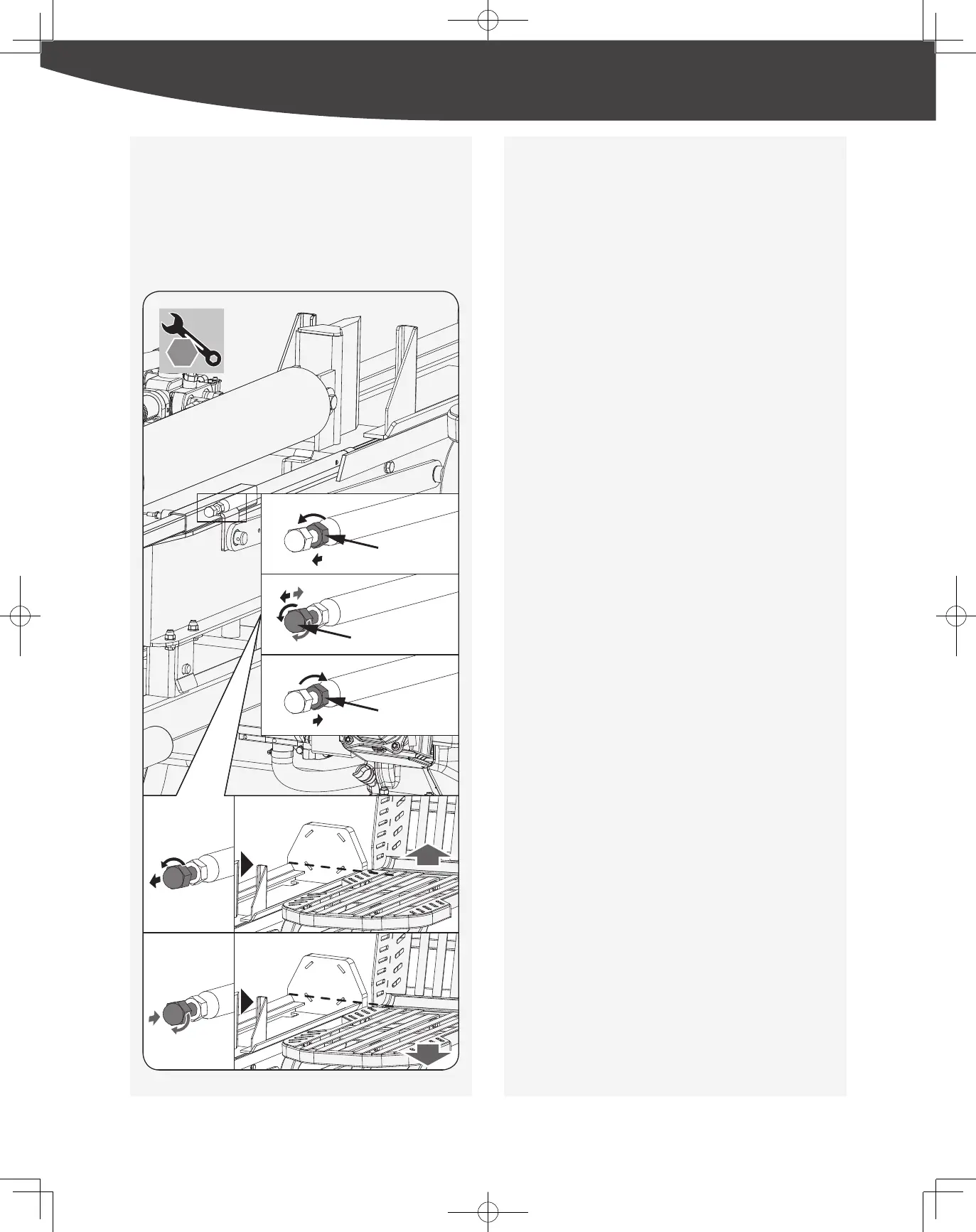

1. Loosen the lock nut, adjust the table angle adjustment bolt
backward to increase the length of the ejector rod, and the table
tilts upward; On the contrary, adjust the table angle adjustment bolt
forward to shorten the length of the ejector rod, and the table will
tilt down. When the height of the table and beam is aligned, lock the
nut tightly. (See Figure 23.)
Log Lift Table Attachment Height Adjustment
Table Angle Adjustment Bolt M10x40 (x1)
(x1)
LockNut M10
(x1)
LockNut M10
16 mm
13 mm
10 mm
24 mm
18 mm
19 mm
Figure 23
25
|
Assembly
