Operation
|

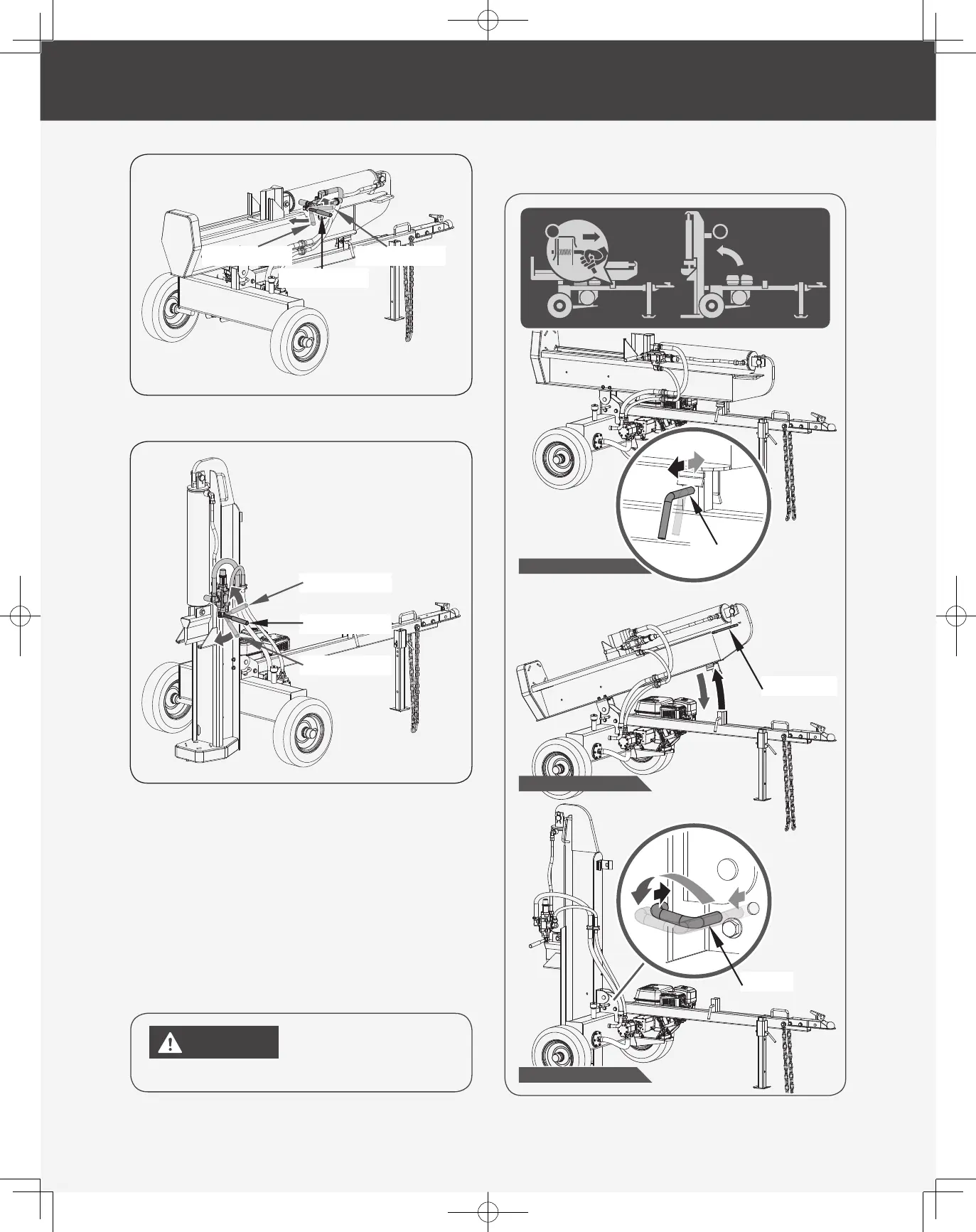

Horizontal Position
CONVERSION BETWEEN HORIZONTAL SPLITTING POSITION
AND VERTICAL SPLITTING POSITION
STUCK LOG PROCEDURE
If a log does not split completely and becomes stuck on the wedge, never
attempt to remove it by modifying the splitter or adding attachments to the
splitter.
Move the control lever to the Reverse positon and allow the cylinder to
retract until the stuck log contacts the stripper plates. Continue to retract
the cylinder until the log is dislodged from the wedge.
Figure 25b
Figure 26
Figure 25a
1 2
Lock Pin
Lock Pin
Vertical Position
Reverse PositionForward Position
Neutral Position
Reverse Position
Neutral Position
Forward Position
Lifting Handle
Rotating Position
Do not use the unit if the stripper
plates are bent or damaged. Bent or
damaged stripper plates must be repaired or replaced before use.
DANGER
WARNING
CAUTION
NOTE
30
