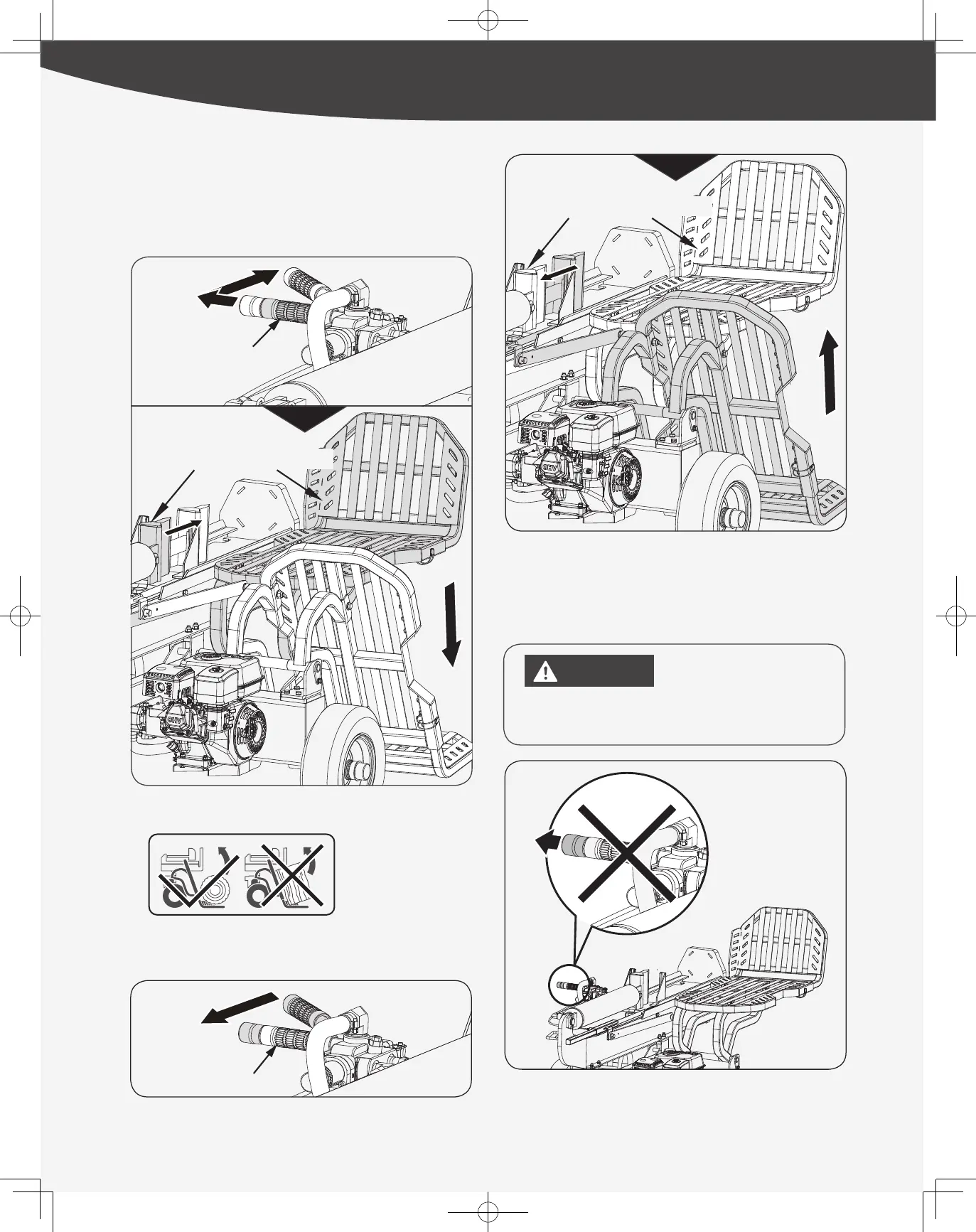

1. When the log lift table attachment is flush with the beam, pull the control
lever of the control valve outward while pushing it forward. then the wedge
moves forward, and at the same time, the log lift table attachment will
go downward. When it lands, release the control lever. (See Figure 27a.)
2. Make sure wedge and log lift table stop moving, load the log on the table.
4. Move the log from log table to the beam.
5. Push the control lever forward, the wedge will go forward to split the
log. Give the control lever a backward thrust, then release the lever, the
wedge will go back to the start position.
6. Repeat the operate from Step 1-5 to complete the log lifting and splitting
again.
Log Lift Table Attachment Operation (Sold Separately)
Log Lift Attachment
Handle Grip
Wedge
Log Lift Attachment
Handle Grip
Wedge
Log Lift Attachment
Handle Grip
Wedge
Log Lift Attachment
Handle Grip
Wedge
|
Operation
3. Give the control lever a backward thrust, wait until the wedge starts to
move, release the control lever, and then the log lift table attachment
starts to rise. (See Figure 27b.)
When the wedge is extended and not
fully return back, it is prohibited to pull
the control lever outwards, otherwise the lift log table attachment
may suddenly drop, causing unexpected risks such as falling logo
and so on. (See Figure 28.)
