Maintenance

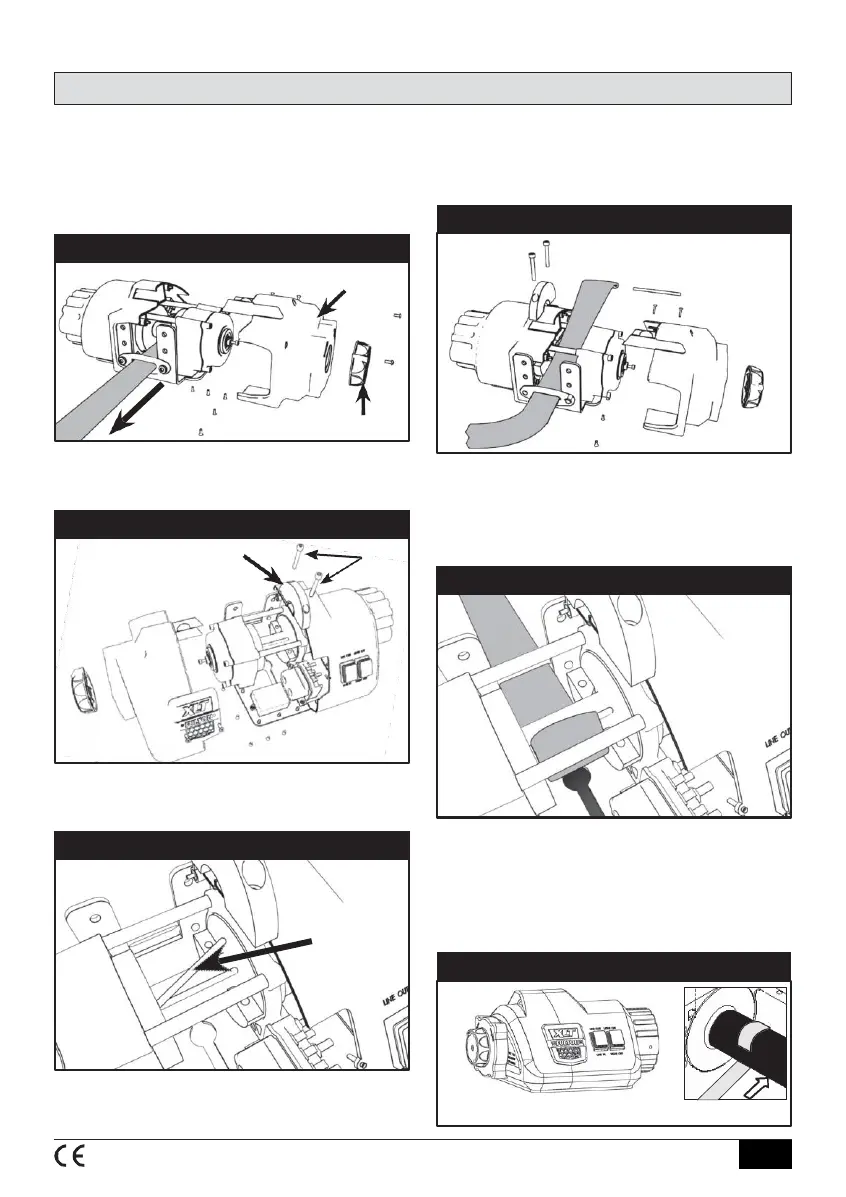

Figure 11 - Replacing The Strap
4. Remove the two bolts from the split collar.
5. Remove the split collar.
Figure 14 - Install NewStrap
Figure 15 - Install Retaining Pin & Split Collar
6. Remove the worn strap and the strap
retaining pin.
7. Insert the strap through the Hawse fairlead and insert
the strap retaining pin through the strap loop.
8. Insert the strap retaining pin and strap into the
groove on the winch drum.
9. Replace the split ring collar and torque bolts to
24 ft.-lbs.
10. Replace the side cover.
11. Replace the clutch knob. Torque to 12 ft.-lbs.
12. Wind strap onto drum by pushing and holding the
“LINE IN” button until the strap is spooled onto the
drum. Keep tension on the strap while it is winding.
Figure 13 - Remove Strap RetainingPin
Retaining
Pin
Figure 16 - Replace Cover & ClutchKnob
Be sure that the strap is under-wound.
Figure 12 - Remove SplitCollar
3.1 Strap Replacement
1. Disengage the clutch knob.
2. Un-spool the entire strap.
3. Remove the clutch knob and side cover as shown.
Removable Cover
Clutch Knob
©2021 Horizon Global Americas Inc. • F4088-00 REV D (7871) 08/2021
E13
