FULTON XLT 7.0 - Features and Ratings; Winch Performance Factors; Winch Specifications; Installation Instructions

WARNING
Features and Ratings
Table 1 - Winch Ratings / Specifications
XLT 7.0
XLT 10.0
Max.
Recommended Boat Weight
*
7,000 lbs.
Max.
Recommended Boat Weight
*
10,000 lbs.
Wireless Remote Control Yes Wireless Remote Control Yes
Light Yes Light Yes
Power Source 12V Power Source 12V
Max. Amp Draw 160 amp Max. Amp Draw 200 amp
Strap 2” x 15’ Strap 2” x 15’
Brake
Mechanical
Brake
Mechanical
Clutch (free-spooling)
Turn Knob
Clutch (free-spooling)
Turn Knob
Controls
Remote
/ Switch
on Winch
Controls
Remote
/ Switch
on Winch
Current draw (Amperage) and line speed vary according to the load, boat position, trailer position,
trailer configuration, battery charge level, the angle of the ramp, how submerged the trailer is -
related to the boat, and other factors.
Monitor operation closely for changes in sound or winch speed to avoid overloading your winch.
As the boat gets closer to the bow stand, the strap will build up to a larger diameter on the drum,
reducing the efficiency of the winch.
Installation Instructions
BEFORE INSTALLING AND USING YOUR POWERED WINCH, READ AND
FOLLOW ALL MOUNTING INSTRUCTIONS AND SAFETY MESSAGES
Mounting
To prevent accidental activation of the winch and serious injury, complete the winch installation
and attach the hook before installing the wiring and applying power
1. Before Installation
1.1 Inspect Parts
Instruction/Owners Manual
Winch Assembly
Clutch Knob
Power Leads
Wireless Remote
Strap and Hook
Hawse Fairlead
Mounting Hardware

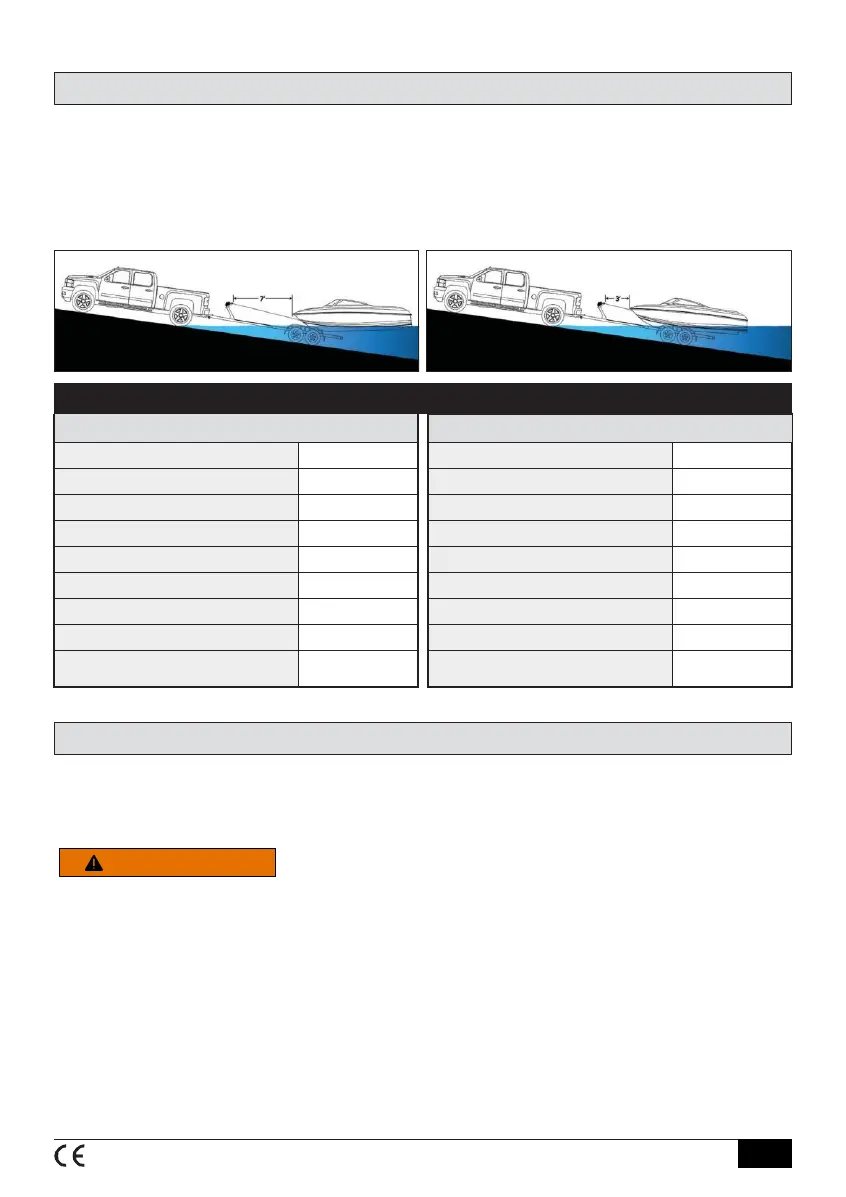

Approximate distance for the boat to first
contact the trailer, while it is still mostly floating
Approximate distance for the boat to come out
of the water and be pulled on the trailer by the
winch, while it is no longer mostly floating
* Refers to the 1
st
layer capacity in marine applications. Refer to the “Best Practices” page for more details.
©2021 Horizon Global Americas Inc. • F4088-00 REV D (7871) 08/2021
E5
