FUNAI A8C70EP - Waveforms

9-1
LC6PWF

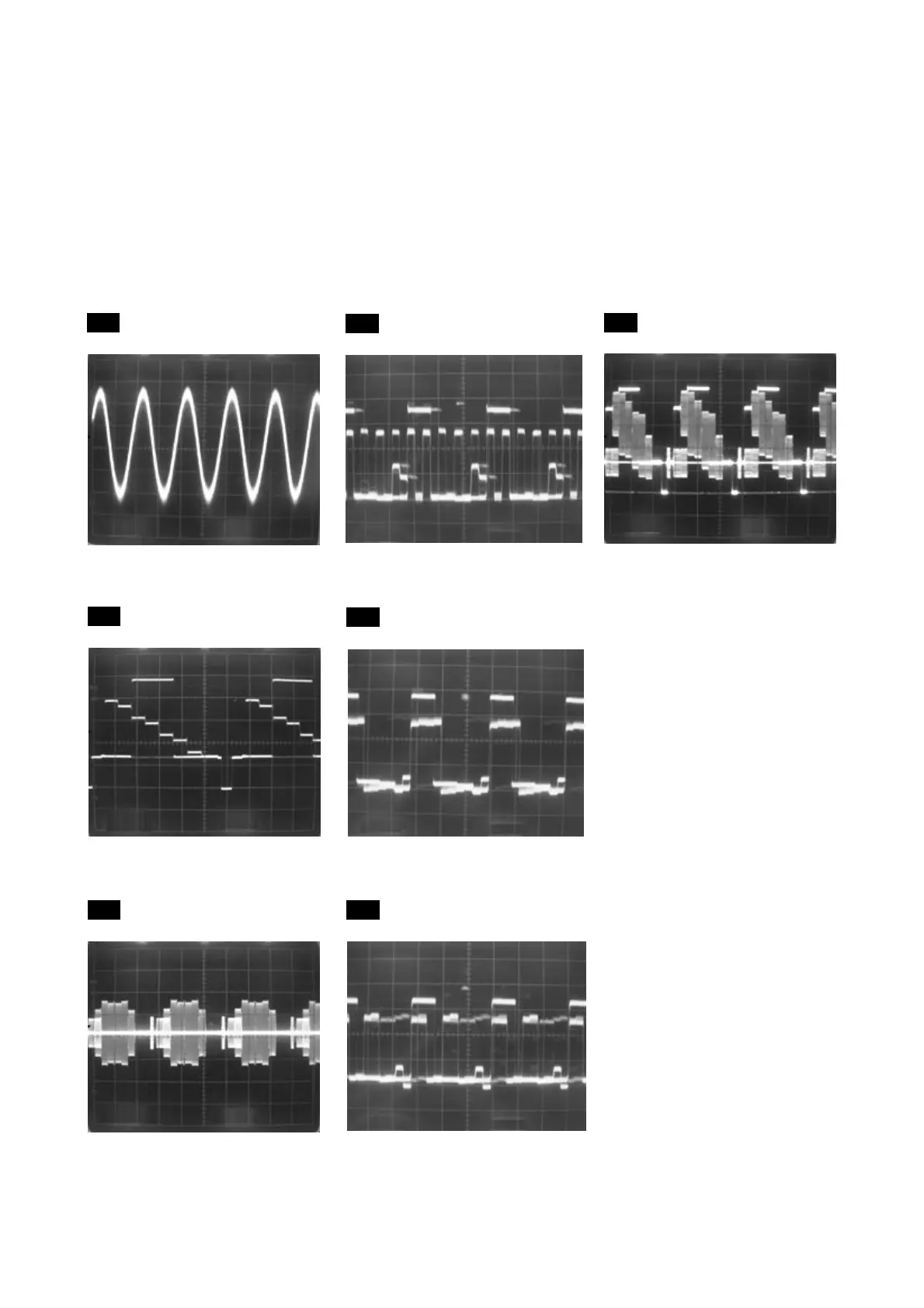

WAVEFORMS
Input: PAL Color Bar Signal (with 1kHz Audio Signal)
WF1 ~ WF7 = Waveforms to be observed at
Waveform check points.
(Shown in Schematic Diagram.)
WF1 Pin 14 of IC801
AUDIO 0.1V 0.5ms
WF2 Pin 23 of CN101A
S-VIDEO-Y 0.2V 10 µ s
WF3 Pin 25 of CN101A
S-VIDEO-C 0.2V 20 µ s
WF4 Pin 5 of CN102A
B 0.5V 5 µ s
WF7 Pin 1 of CN102A
WF5 Pin 4 of CN102A
G 0.5V 20 µ s
VIDEO 0.2V 20
µ s
WF6 Pin 3 of CN102A
R 0.5V 10 µ s
VIDEO-B 0.5V
20
µ s
VIDEO-G 0.5V
20
µ s
VIDEO-R 0.5V
20
µ s
