FUNAI D8A-A4110DB - Page 16

1-6-4 E8G00DC
[14] Jack-B CBA
(S-15)
Jack Plate
Desolder
from bottom
(S-11)
Lead with blue stripe
(S-12)
(S-14)
(S-13)
(S-11)
[12] Main CBA
[13] Jack-A CBA
[10] Deck
Assembly
[11] DVD Open/Close CBA
FE Head
Cylinder
Assembly
ACE Head
Assembly

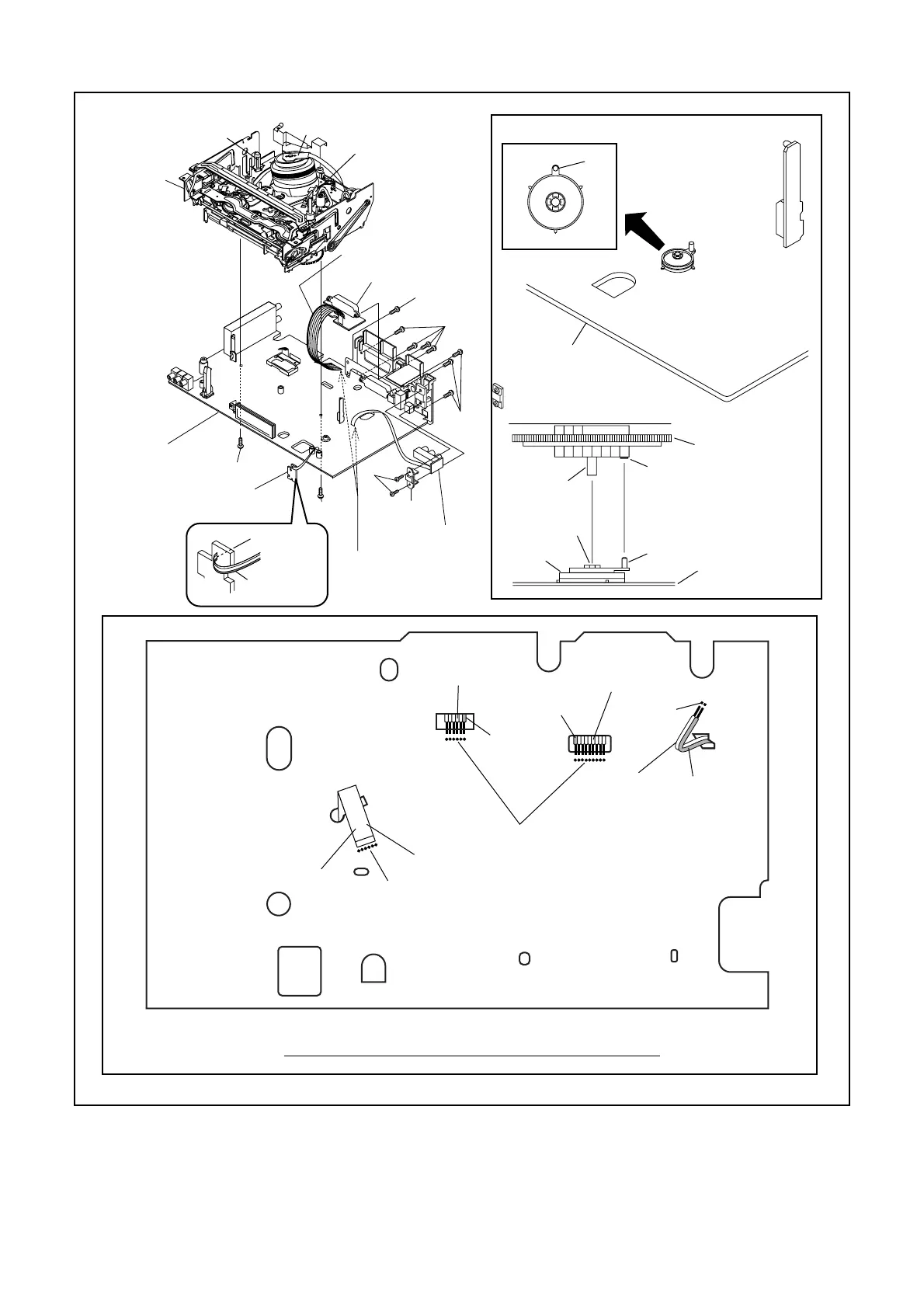

Fig. D6
Desolder
Lead with
blue stripe
From
FE Head
BOTTOM VIEW
Lead connections of Deck Assembly and Main CBA
Desolder
From
Capstan
Motor
Assembly
Printing side
Desolder
From
Cylinder
Assembly
From
ACE Head
Assembly
Lead with
blue stripe
Lead with
blue stripe
Desolder
Lead with
red stripe
[12] Main CBA
SW507
LD-SW
LD-SW
Pin
Hole
Hole
Shaft
Cam Gear
[12] Main CBA
[10] Deck Assembly
Pin
