FUNAI DPVR-4600 - Page 14

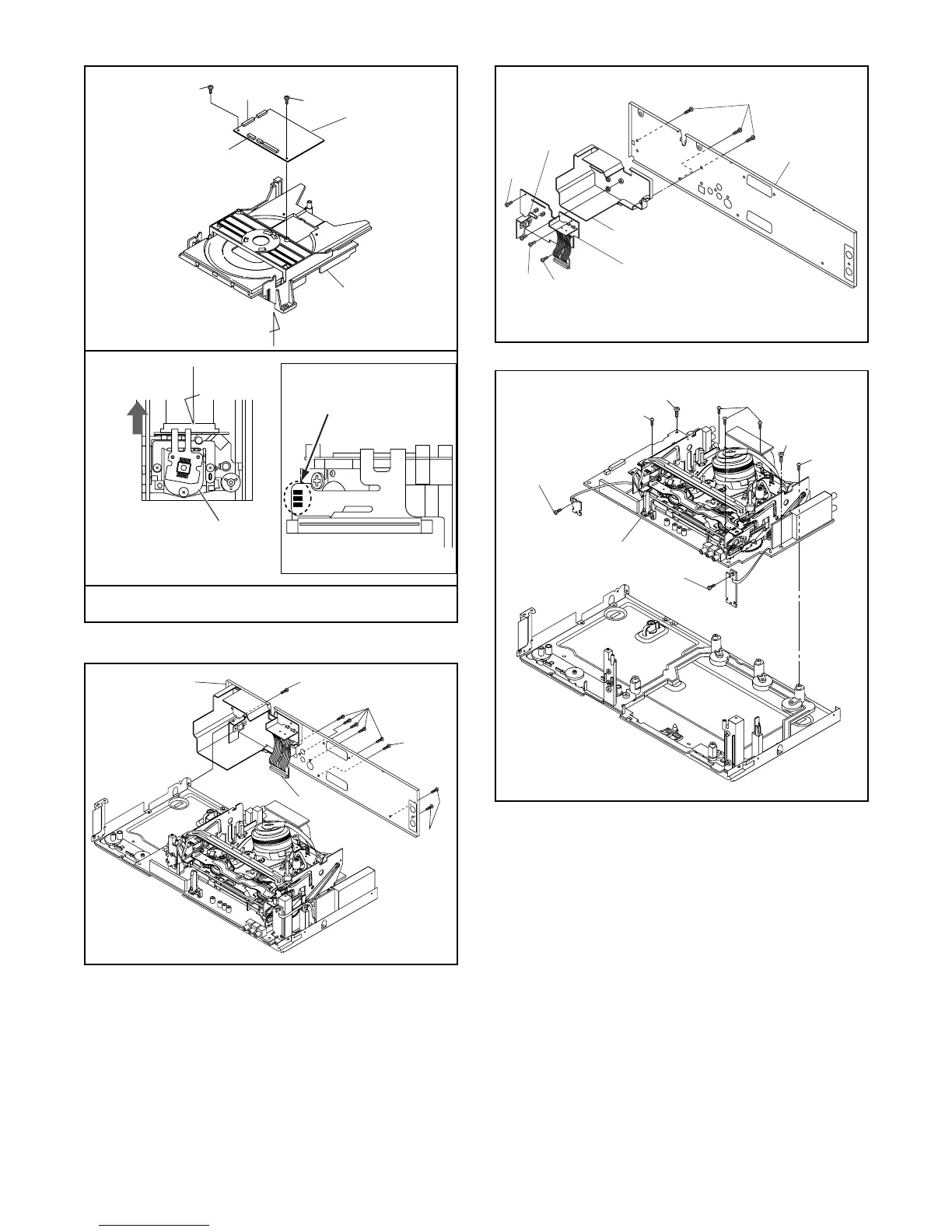

1-6-3 H9500DC
A
View for A
Pickup Unit
B
Short the three short
lands by soldering
View for B
Slide
(S-5)
CN201
[5] DVD Main
CBA
DVD Mecha
(S-5)
CN301
Fig. D4
(S-7)
(S-6)
(S-7)
[6] Rear Unit
(S-7)
CN003
Fig. D5
[9] Rear Panel
[7] Power Supply CBA
[8] PCB Bracket
(S-9)
(S-8)
(S-8)
(S-8A)
(S-8A)
Fig. D6
(S-11A)
(S-11A)
[10] VCR Chassis Unit
(S-10)
(S-10)
(S-10)
(S-11)
(S-11)
Fig. D7
