10-6
A03P0SCINP

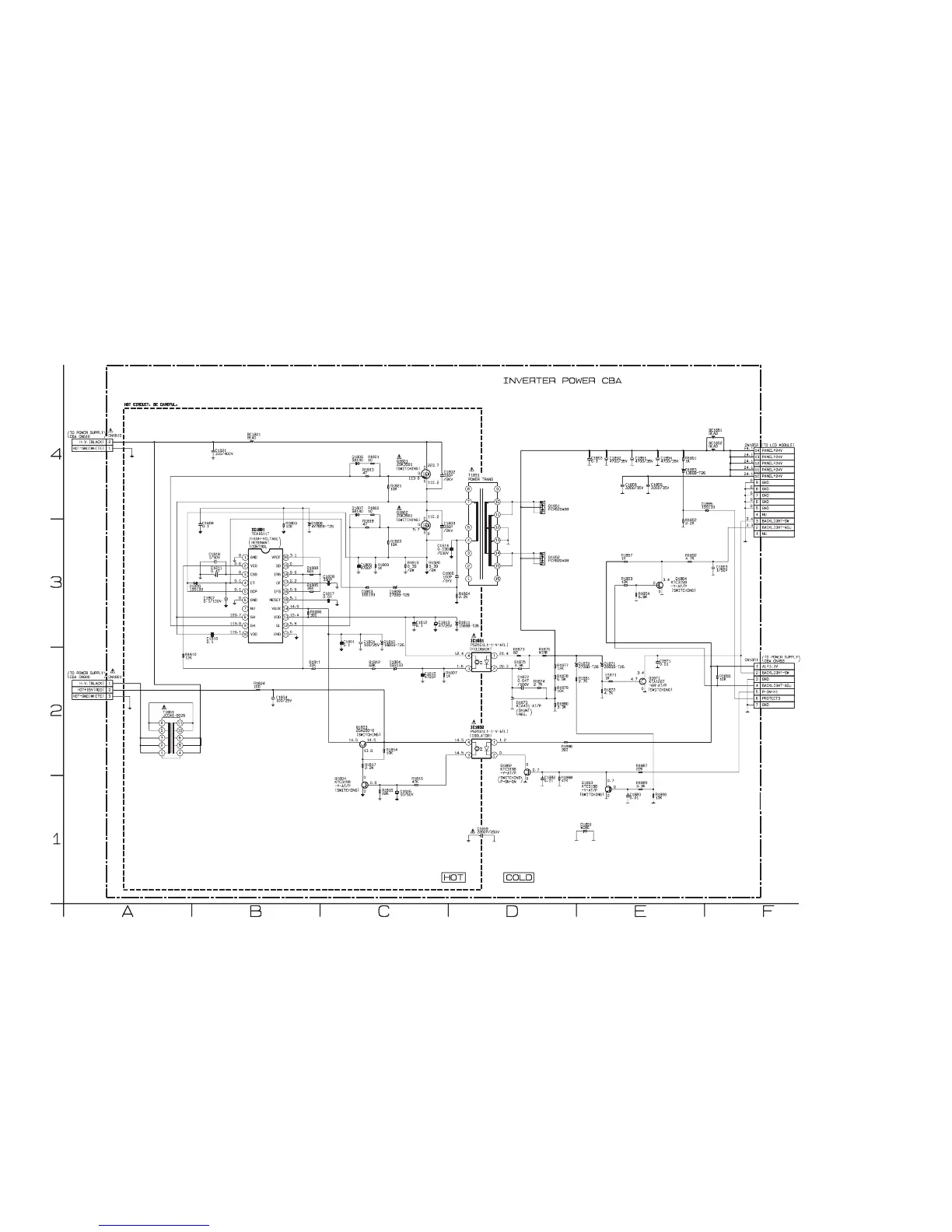

Inverter Power Schematic Diagram
NOTE:
The voltage for parts in hot circuit is measured using
hot GND as a common terminal.
