Funbikes QD03K - Final Assembly Steps; Chain Cover Installation; Number Board Mounting; Handlebar Assembly

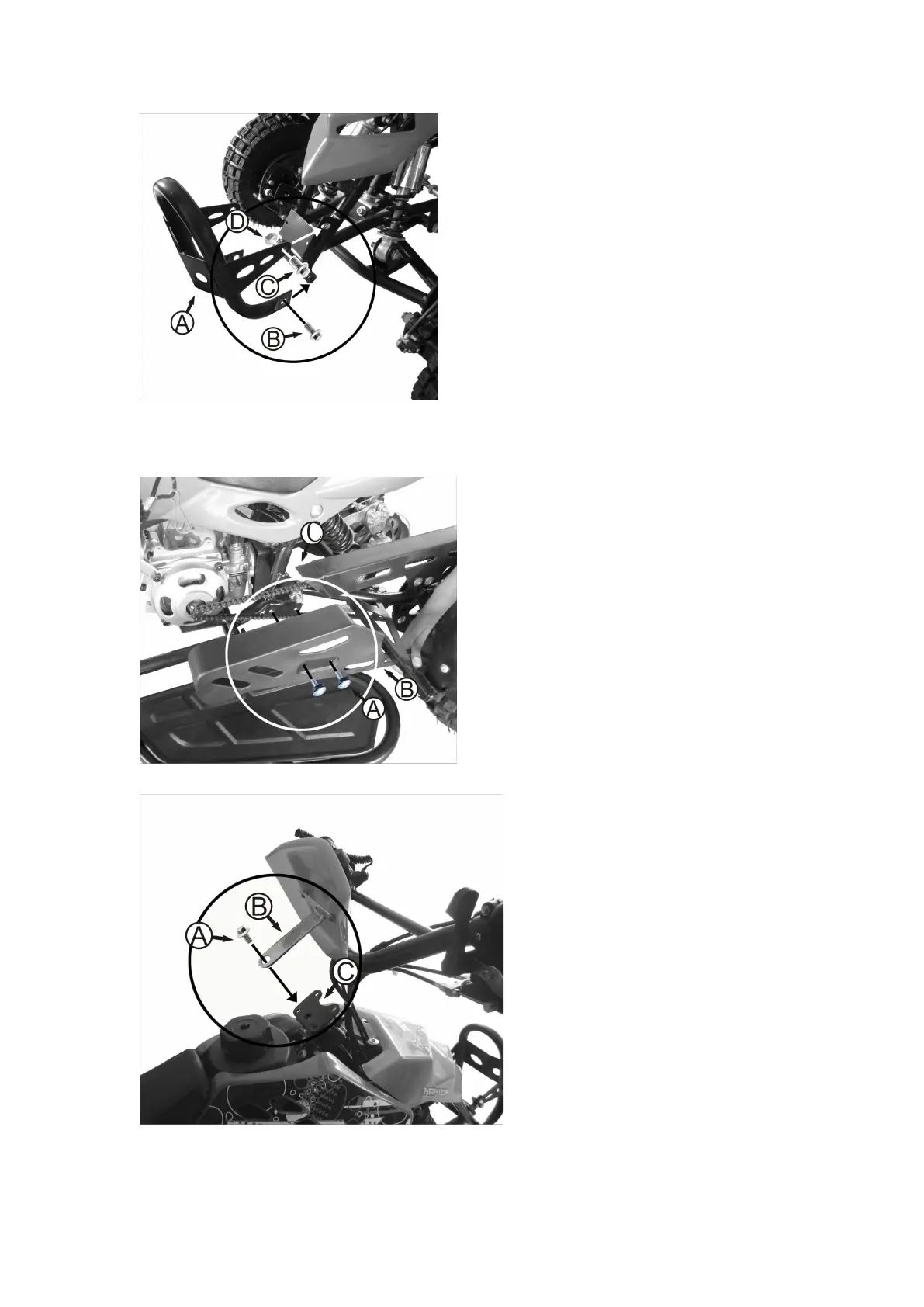

A: Bumper
B: Bolt M8×16 2pcs
C: Bolt M8×16 2pcs
D: Nut M8 4pcs
1. Align the bottom mounting hole of bumper
(A) to the frame bottom joint and mount the
bolt (B), NOT tighten the bolt to keep the
bumper free move.
2. Turn upwards the bumper to align the
upper mounting hole of bumper to the
frame upper joint, then mount the bolt (C)
and twist the nut (D).
3. Tighten the bolt (B) and nut(D) securely
with10mm and 13mm open end wrench
ASEEMBLY CHAIN COVER
A: Bolt M6×16 2pcs
B: Front chain cover
C: Rear chain cover
1.Put the front part of chain cover (B)
combine with the rear part of chain cover
(C) and make sure the chain is well
covered.
2 .Install the 2pcs bolt (A) into the bracket
and tighten it securely with allen wrench
5mm.
ASSEMBLY NUMBER BOARD
A: Bolt M8×16 1pcs
B: Number board bracket
C: Steering rod plate
1. Place the bracket (B) on the
steering rod plate (C) with the hole
in alignment.
2. Install the bolt (A) and tighten it
with 10mm open end wrench
ASSEMBLY HANDLEBAR
