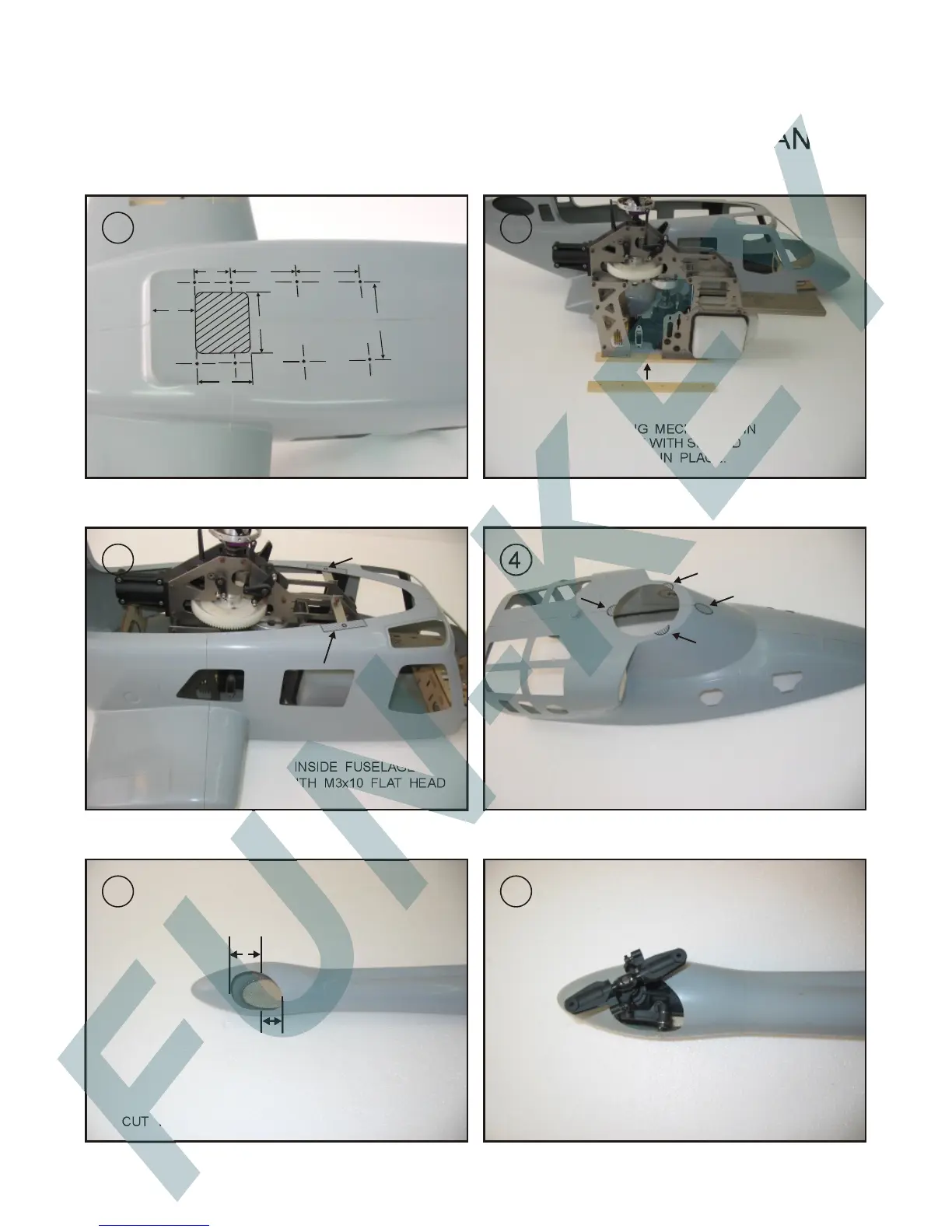

INSTALLATION OF CENTURY PREDATOR MECHANISM
BELL 222
ENGINE SIZE:60
P.5
CUT VENTILATING HOLE AND MECHANISM
MOUNTING HOLES (3.5 MM) AS SHOWN.
CENTURY PREDATOR
MOUNTING MECHANISM IN
FUSELAGE WITH SHAPED
HARDWOOD IN PLACE.
10x50 MM PLYWOOD LOCATION
(INSIDE FUSELAGE)
CUT AWAY MARKED PORTION FOR SWATCH PLATE.
CUT HOLE FOR STARTING PROBE.
20 MM
CUT TAIL HATCH FOR GEAR-BOX AS SHOWN.
34 MM
43 MM
35 MM 65 MM 65 MM
60 MM
79 MM
50 MM
1
3
5
2
4
6
GLUE 10x50 MM PLYWOOD INSIDE FUSELAGE.
MOUNTING PLATE WITH M3x10 FLAT HEAD
SCREWS AND LOCK-NUTS.
ALUM.
