17 MM
12.5 MM
203.5 MM
83.5 MM
8 MM
17 MM
65 MM
55 MM
HIROBO FREYA
CUT VENTILATING HOLE AND MECHANISM
MOUNTING HOLES (3.5 MM) AS SHOWN.
P.6

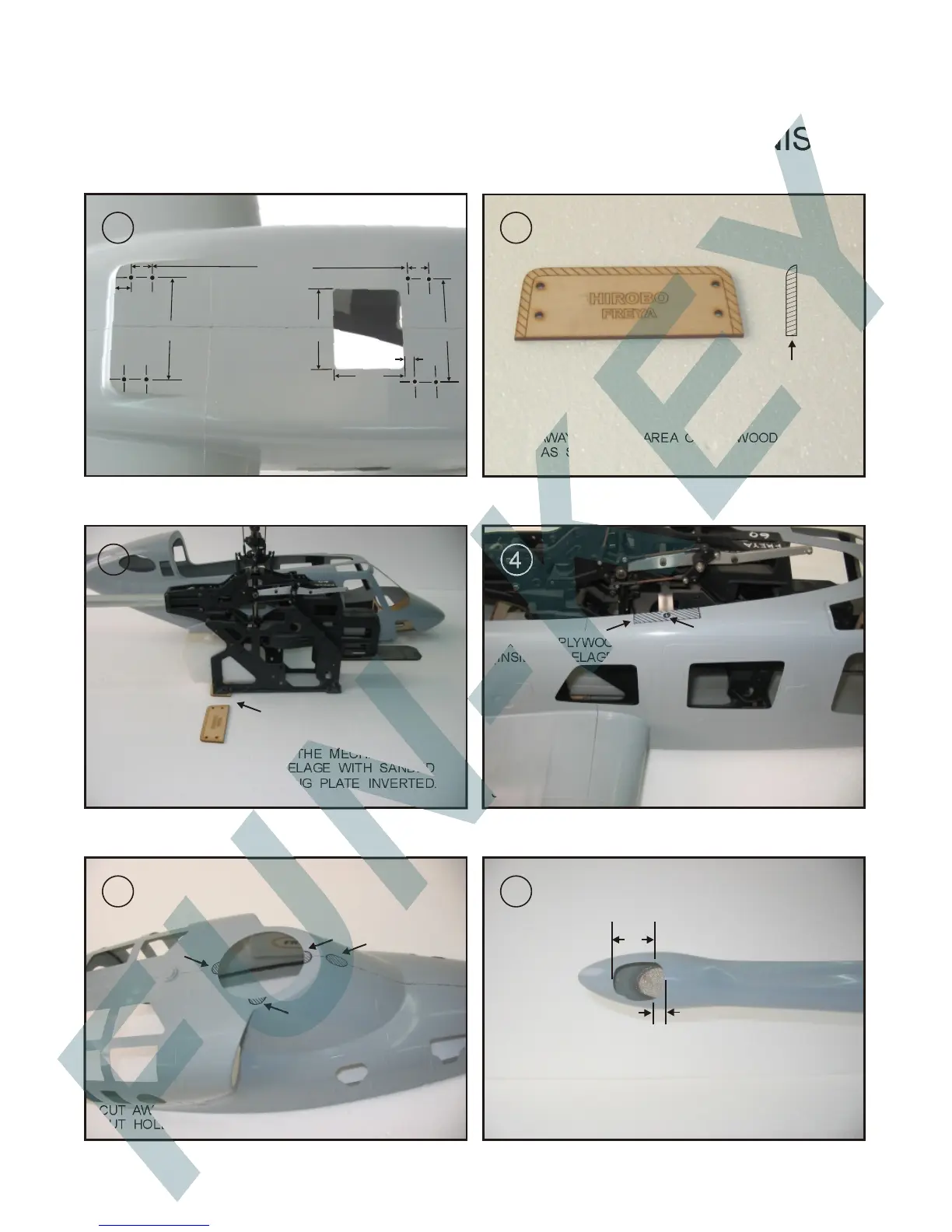

INSTALLATION OF HIROBO FREYA MECHANISM
BELL 222
ENGINE SIZE:60
SAND AWAY SHADED AREA ON PLYWOOD MOUNTING
PLATE AS SHOWN.
CROSS SECTION
MOUNT THE MECHANISM
IN FUSELAGE WITH SANDED
MOUNTING PLATE INVERTED.
CUT AWAY MARKED PORTION FOR SWATCH PLATE.
CUT HOLE FOR STARTING PROBE.
10x50 MM PLYWOOD LOCATION
(INSIDE FUSELAGE)
GLUE 10x50 MM PLYWOOD INSIDE FUSELAGE.
MOUNTING PLATE WITH M3x10 FLAT HEAD
SCREWS AND LOCK-NUTS.
ALUM.
CUT TAIL HATCH FOR GEAR-BOX AS SHOWN.
10 MM
38 MM
83.5 MM
1
3
5
2
4
6
