FUNKY MONKEY BARS Boxing Bag - Ninja Grips Frame Adjustments; Lower Legs and Assemble Bar

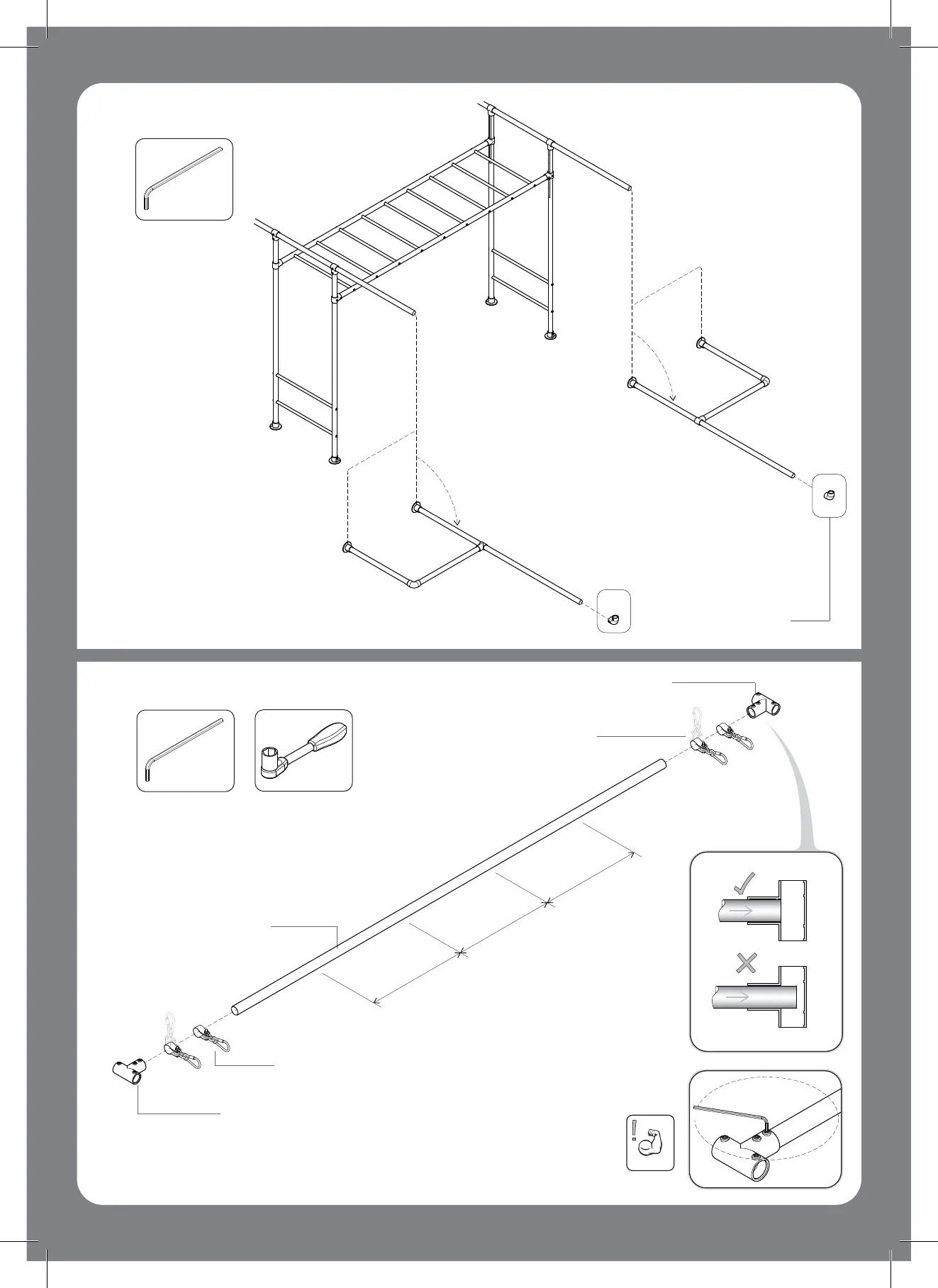

Page 10
600
600
600
1. On flat level ground slide and evenly space swing hooks
along accessory tubes, fully tighten swing hook bolts.
2. Slide extra long tees onto ends as per detail
and fully tighten all grub screws.
6
ASSEMBLE ACCESSORIES BAR
2x Swing Hooks
NOTE : Swing Hooks
vertical for Position A
1x Accessories Tube
50Dia x 2950mm
Ensure accessories tube is not
over inserted into extra long tees
& is level with through hole.
Fully tighten all grub screws
and swing hook bolts.
+ 360
o
1x Extra Long Tee
D-104L
1x Extra Long Tee
D-104L
NOTE:
For selected position A ( step 1)
DO NOT remove elbows from top of
lowered leg assemblies.
5
LOWER LEGS TO GROUND - REMOVE ELBOW
Position B only - refer to note
1. Lower leg assemblies
to the ground.
2. Remove elbows
(Position B only)
2x Swing Hooks
NOTE : Swing Hooks
vertical for Position A
