All tubes must be fully inserted
until contact is made with
adjoining tube.

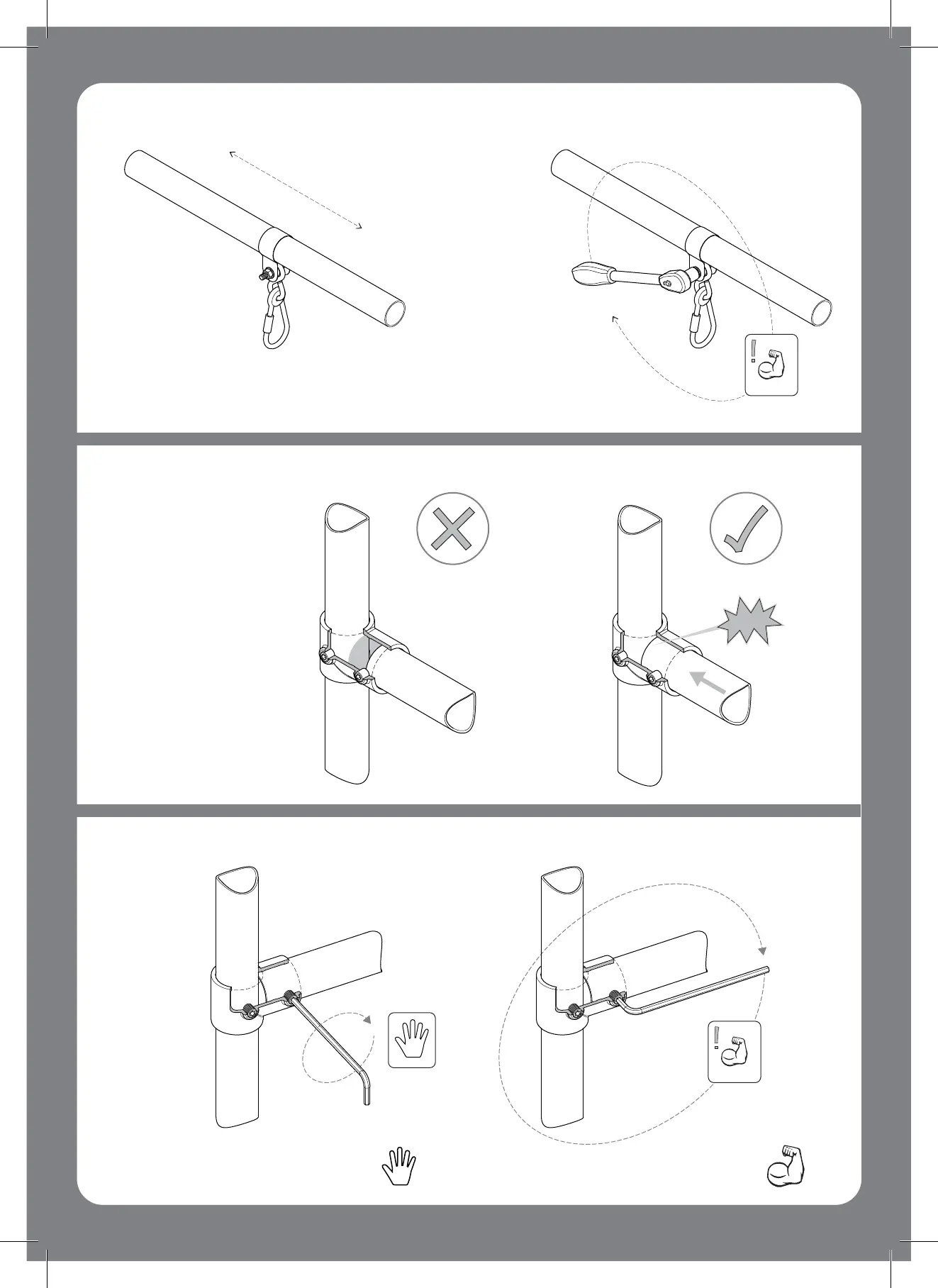

CORRECT INSERTION INTO FITTINGS - (indicative diagram shown)
CORRECT TIGHTENING METHOD OF GRUB SCREWS - (indicative diagram shown)
Gap.
No gap.
CLUNK
1. With long end of allen key, hand
tighten grub screw as much as possible.
2. Using other end of the allen key do one full
360 degree turn as a minimum, use muscles!
o
+ 360
CORRECT TIGHTENING OF SWING HOOKS - (indicative diagram shown)
1. Slide the swing hook along the
tube until the desired location.
2. Fully tighten bolt on swing hook
to clamp tightly onto tube. Failure
to do so can result in serious injury.
Page 3
ASSEMBLY TIPS
