FUNKY MONKEY BARS Boxing Bag - Dip Bar Assembly; Inventory Check; Select Location of Dip Bar

3x
Base Plate
D-131
3x
Peg
FITTINGS & HARDWARE
TUBES
The Dip bar add-on accessory can be
attached to any of the 4 outside poles- A-D.
This could be a swing leg or adjustable leg.
It can also be positioned parallel or
perpendicular to the frame.
In either case a twirly whirly must
be removed from the selected
leg.
ASSEMBLY INSTRUCTIONS - DIP BAR
1

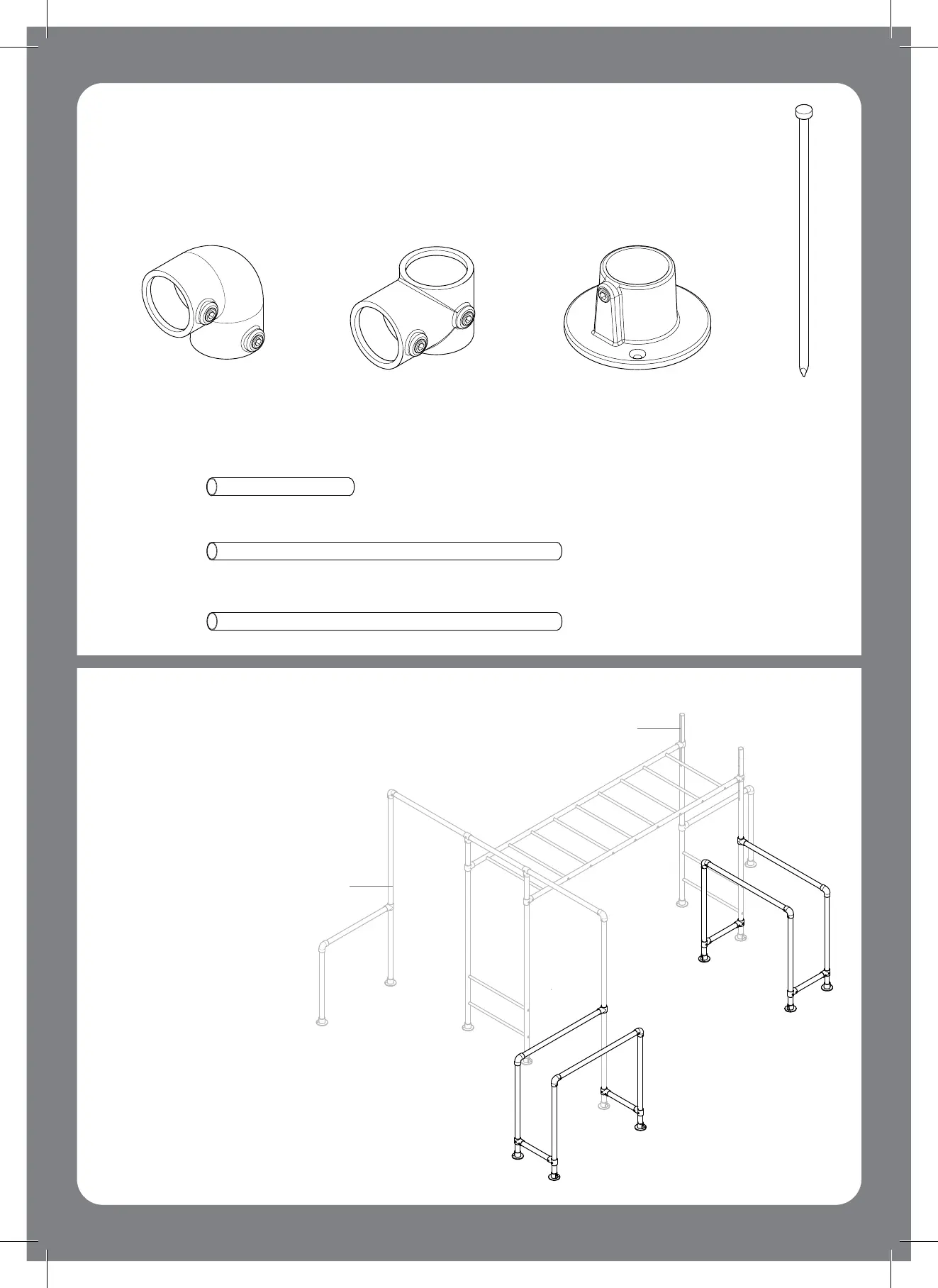

CHECK INVENTORY - (not to scale)
Check that you have the following
items before assembling your
Funky Monkey Bars® Dip Bar Add-on.
Page 30
SELECT DESIRED LOCATION OF DIP BAR
(Assembly options shown on Chimp frame)
2
3x
Elbow
D-125
5x
Short Tee
D-101
50Dia. x 450mm
3x
Dip Vertical Tube
2x
Brace Tube
2x
Dip Horizontal
Black Tube
50Dia. x 1085mm
50Dia. x 1085mm
A
B
C
D
Adjustable leg.
(A & B)
Swing leg.
(C & D)
