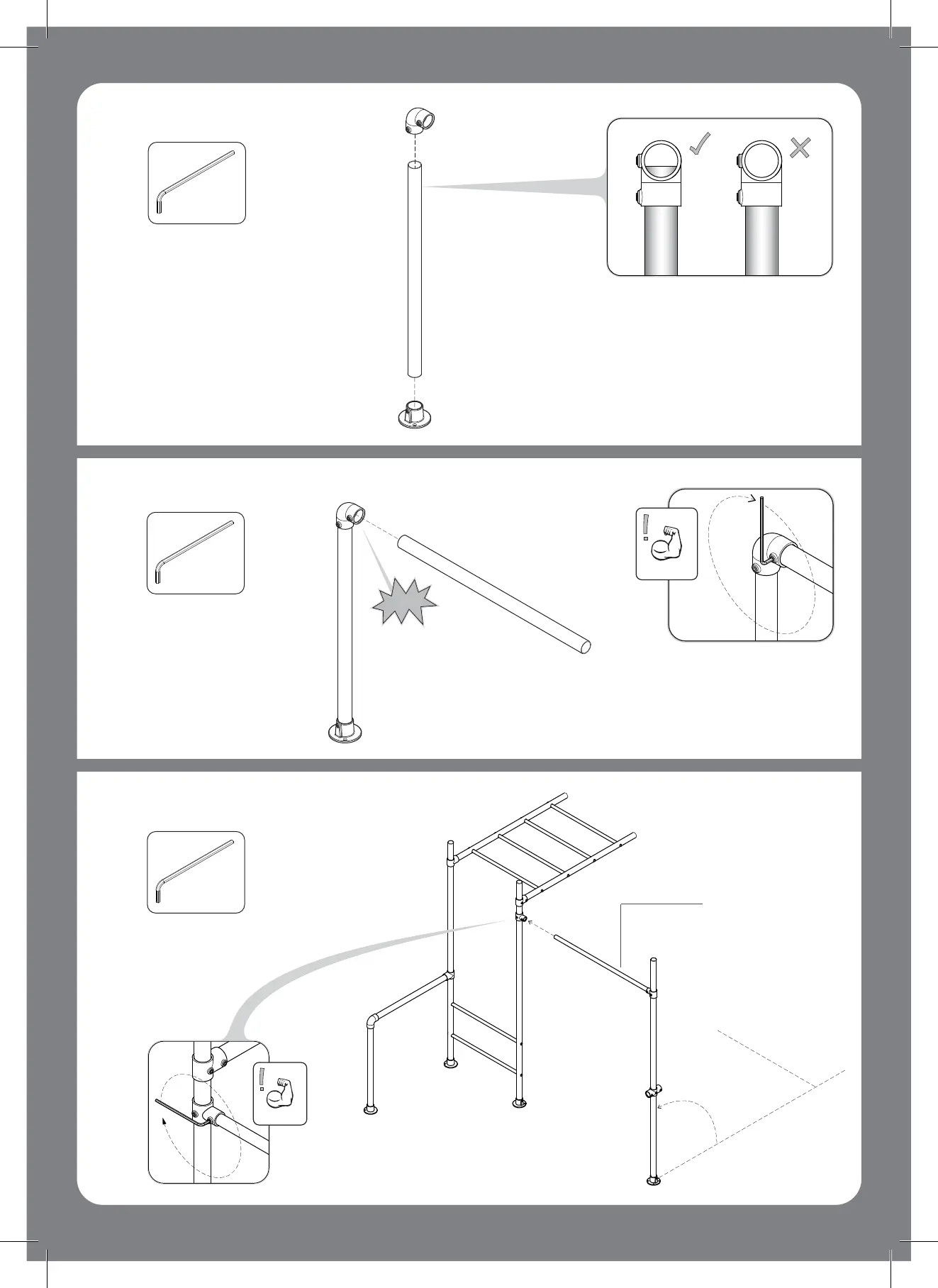

FUNKY MONKEY BARS Boxing Bag - Gym Bar Installation; Assemble Twirly Tubes and Attach Gym Bar

1. Fully insert twirly whirly tube
into elbow and base plate.
2. Fully tighten all grub screws.
8
9
1x
Twirly Tube
50Dia x 900mm
1x
Elbow
D-125
1x
Base Plate
D-131
ASSEMBLE VERTICAL TWIRLY TUBE
ATTACH HORIZONTAL TWIRLY TUBE
Fully insert twirly tube then
firmly tighten all grub screws.
1x
Twirly Tube
50Dia x 900mm
Insert Twirly Tube fully into Elbow.
CLUNK
+ 360
o
Insert gym bar tube into the reducing
tee on the adjustable leg.
Ensure gym bar is level
and fully tighten
all grub screws.
10
ATTACH GYM BAR (chin up bar)
Gym bar assembly from
step 7.
Tighten all grub screws.
Page 28
+ 360
o
