27

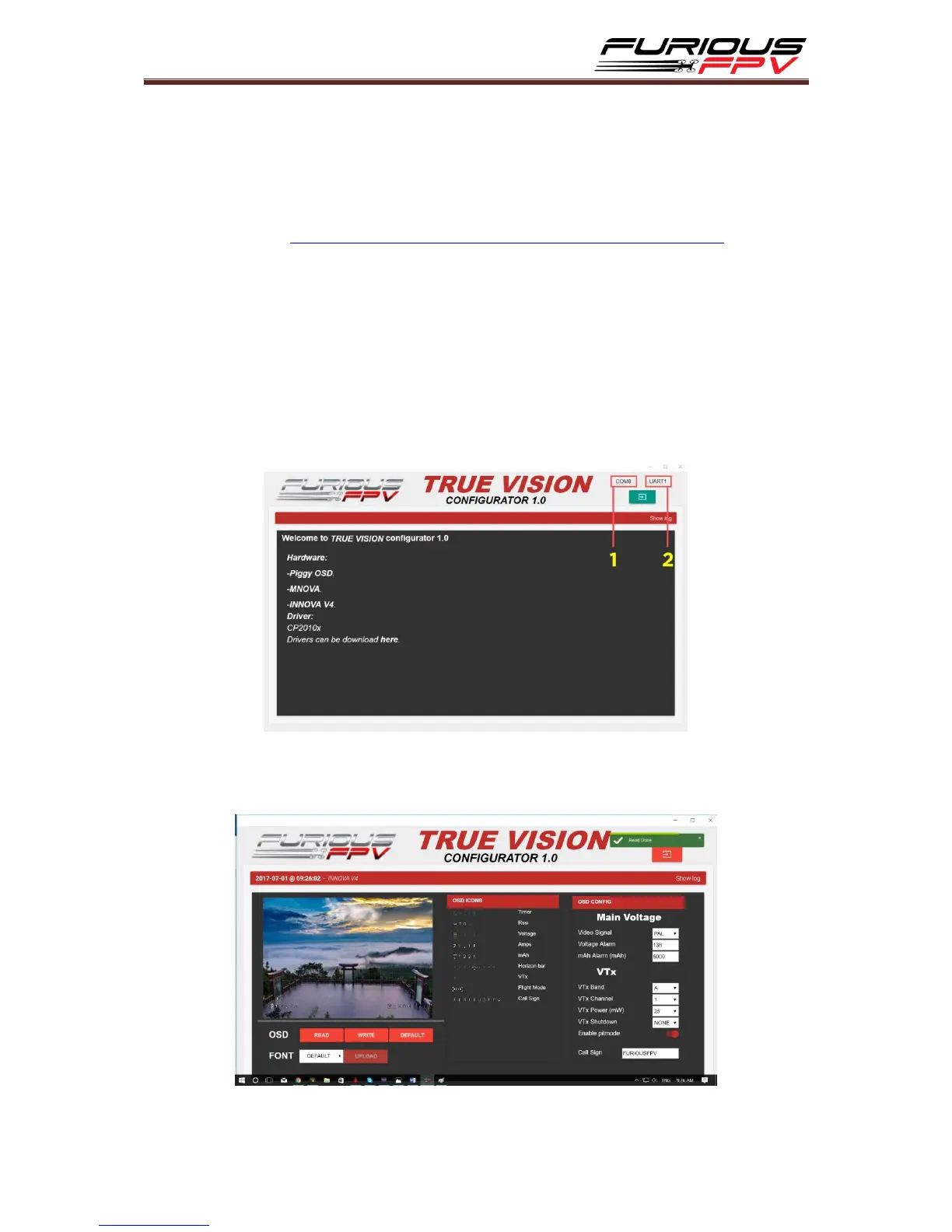

Guideline configuration OSD with TRUE VISION
CONFIGURATOR V1.0
Serial Pass Through don’t need CLI in Betaflight
DOWNLOAD: Guideline install and configuration TRUE VISION CONFIGURATOR
STEP 1: Connect Fortini F4 (connected with VTX/OSD) with PC via USB cable. Then plug
battery for FC.
STEP 2: Open True Vision Configurator on google chrome.
STEP 3: Please select Port COM (1) correlative with your device, then select UART 1 (2) using
for OSD.
STEP 4: Plug Battery for Fortini F4, then click Connect icon on True Vision interface to
connect and configuration OSD layout and setting.
STEP 5: After configuration device please click WRITE to save your configuration.
To Next Page
