SPECIFICATIONS
Current rating: 15 amps, 1800 watts at 120 VAC
Input Voltage: 0 to 135 VAC without damage
Meter Accuracy: Voltmeter: +/- 1VAC; Ammeter: +/- 0.1 amps
Spike Protection Modes: Line to Neutral, Neutral to Ground,
Line to Ground
Clamping Voltage, all modes: Initial turn-on at 200 volts; TVSS
rating of 400 volts peak at 500 amps,
L-N, N-G, L-G (tested to UL-1449)
Response time: 1 nanosecond
Maximum surge current: 6,500 amps
Maximum spike energy: 80 joules per mode; 240 joules total
Noise attenuation: Differential mode: Greater that 40 dB;
Common mode: greater that 60 dB;
Both 1 to 200 MHz
Mechanical:
Dimensions: 1.75" H x 19" W x 8" D.
Weight: 6 lbs (2.7 kg).
Construction: Steel chassis, zinc chromate plating;
.125" brushed and black anodized aluminum
front panel; glass epoxy circuit boards.
Power consumption: 12 watts

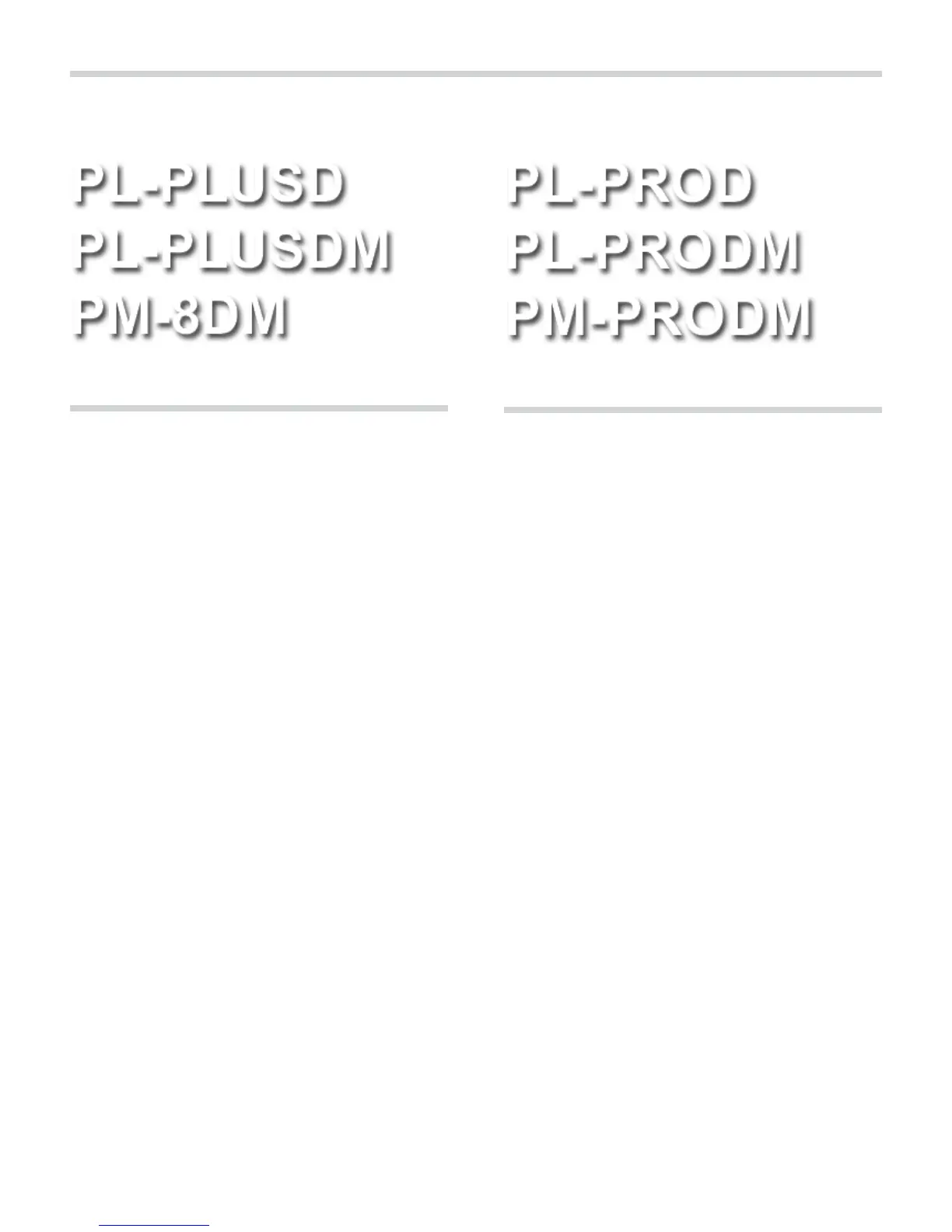

Safety Information: The PL-PLUSD, PL-PLUSDM,
and PM-8DM are N.R.T.L.-C listed.
9
SPECIFICATIONS
Current rating: 20 amps, 2400 watts at 120 VAC
Input Voltage Range: 0 to 250 VAC without damage
Meter Accuracy: Voltmeter: +/- 1VAC; Ammeter: +/- 0.1 amps
Spike Protection Modes: Line to Neutral, Neutral to Ground,
Line to Ground
Clamping Voltage, all modes: Initial turn-on at 200 volts;
TVSS rating 400V peak at 500 amps,
L-N, L-G, N-G, (tested to UL1449)
(TVSS rating 400V peak, L-N;
680V peak, L-G, N-G)
Response time: 1 nanosecond
Maximum surge current: 11,000 amps (8 x 20mS pulse)
Maximum spike energy: 550 joules total
Noise attenuation: Differential mode: Greater that 40 dB;
Common mode: greater that 60 dB;
Both 1 to 200 MHz
Dimensions: 1.75" (4.45 cm) H x 19" (48.25 cm) W x 10" (25 cm) D.
Weight: 6 lbs (2.7 kg)
Construction: Steel chassis, zinc chromate plating;
brushed and black;Anodized aluminum
front panel; glass epoxy printed circuit boards.
Power consumption: 12 watts
Safety Information: The PL-PROD, PL-PRODM,
and PM-PRODM are N.R.T.L.-C listed.
