1. MOUNTING

1-2

• Make sure that the ground wire is

connected between the earth termi-

nal on the chassis and the ship’s

earth.

• Fasten the USB cable with the cable

tie (supplied) to the cable routing

peg.

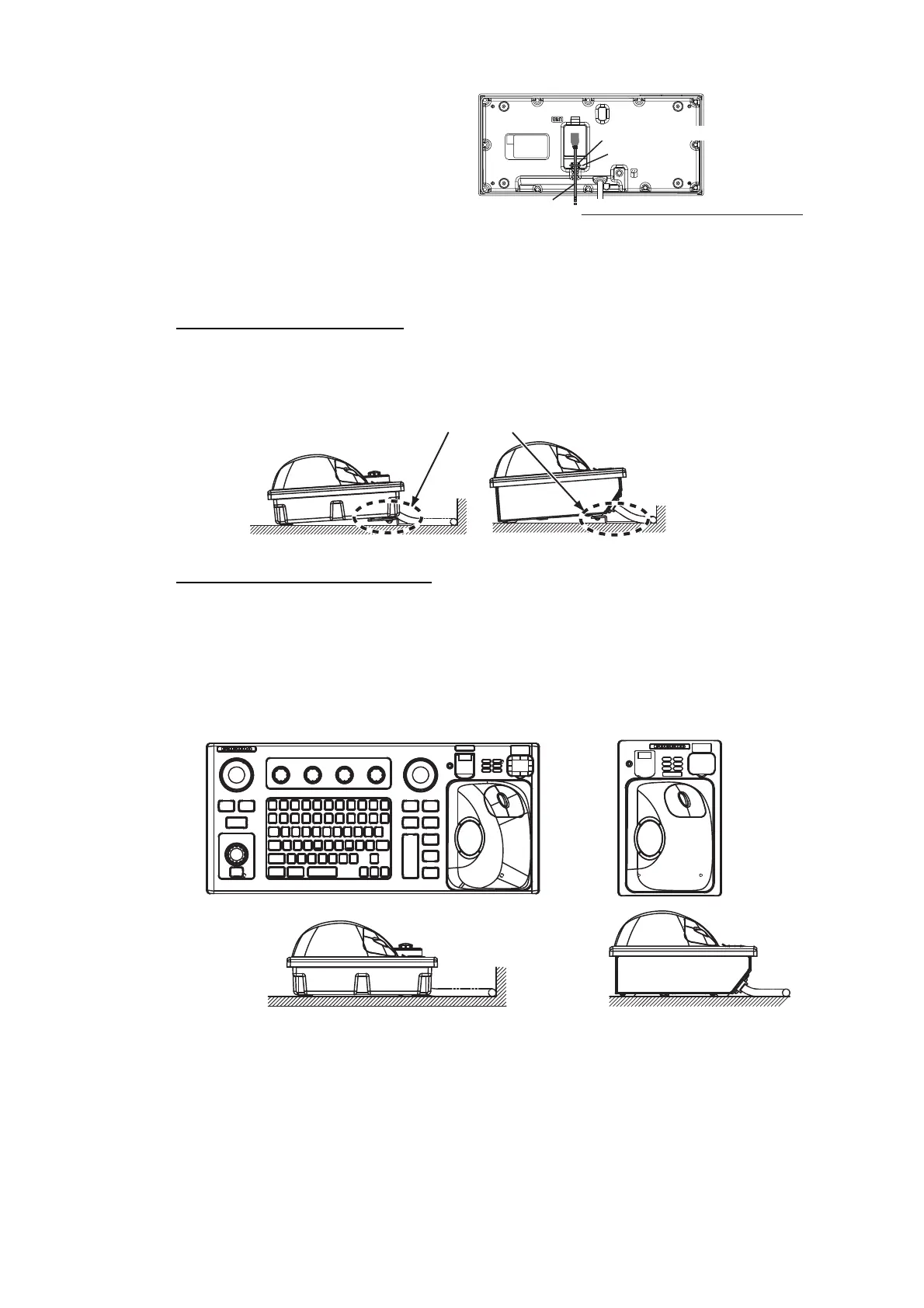

1.2.1 Desktop Mounting

Fixing with KB fixing metal

1. Fix the KB fixing metal to the bottom of the control unit.

2. Fix the unit with self-tapping screws (5x20, local supply).

Fixing without KB fixing metal

1. Drill four mounting holes of 5 mm (RCU-024) or 4 mm (RCU-026) diameter refer-

ring to the outline drawing at the back of this manual.

2. Fix the control unit with four screws (RCU-024: M4, RCU-026: M3) from under

side of the desktop. (The M4 screws with a sufficient length for the thickness of

the desktop should be provided locally.)

USB cable

Ex. ECDIS control unit, bottom view

Cable tie

Cable routing peg

KB fixing metal

RCU-026RCU-024

RCU-026RCU-025
