Differences from MCU-002
The MCU-004 keys work almost the same as the MCU-002 except for the following unique keys and features.

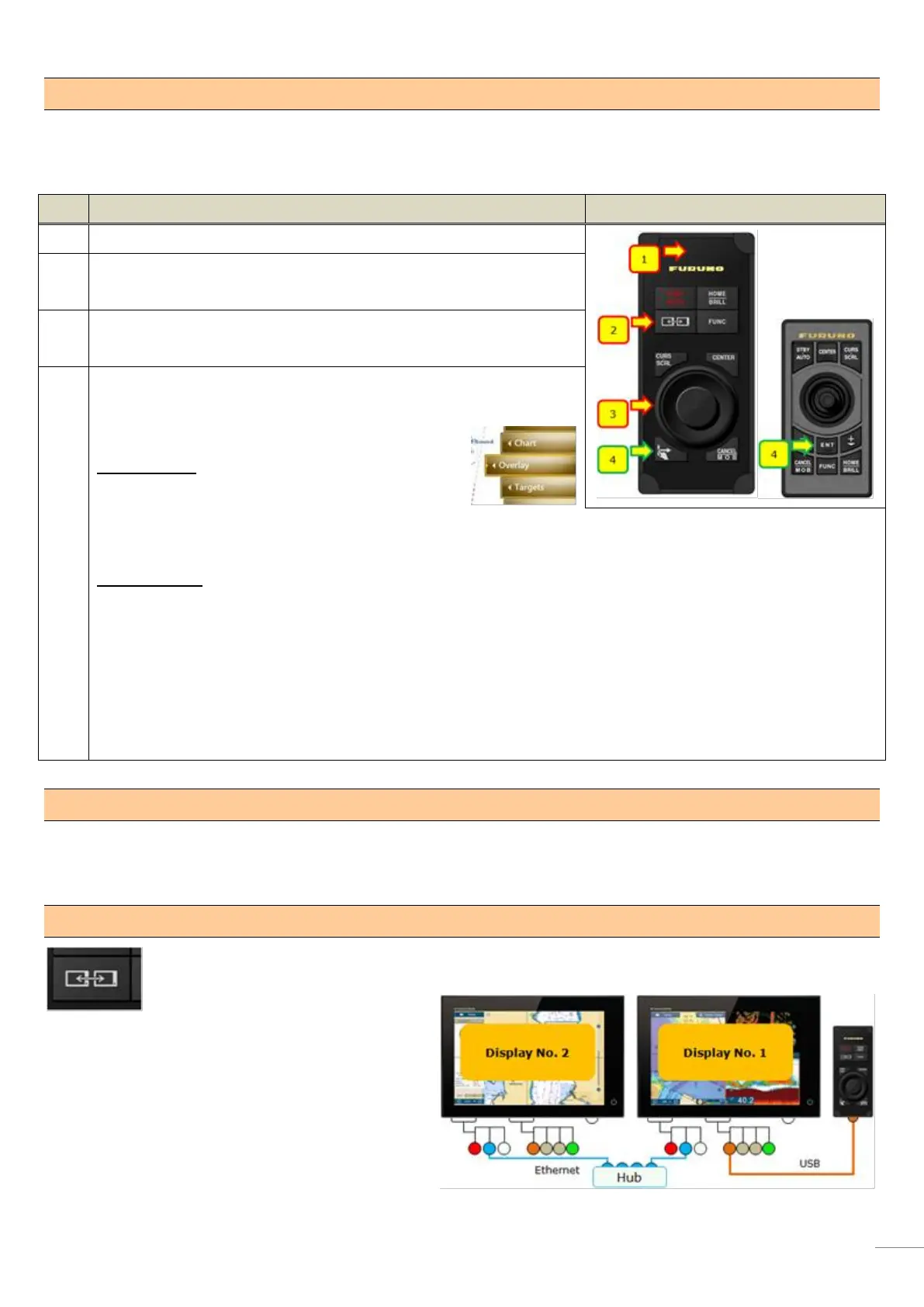

Uniqueness with MCU-004 – Overview
The [Switch Disp.] key switches an active display when there are
multiple MFDs in the network.
A big rotary knob offers a friendly operation like you rotate the
RotoKey™ of TZT9/14/BB.
The [Edge] key works differently between TZT9/14/BB and
TZTL12F/15F.
TZT9/14/BB
It works the same as the [ENT] key of MCU-002
such as showing RotoKey™ menus and selecting the RotoKey™ or contextual menus.
TZTL12F/15F
It activates the edge-swipe functions. Instead of swiping the screen from the top, bottom, right, or left edge,
press the [Edge] key and move the joystick in the same direction as you edge-swipe with your finger.
[Edge] + Joystick [Up] : Layer
[Edge] + Joystick [Down] : Quick Access page
[Edge] + Joystick [Right] : Data Box
[Edge] + Joystick [Left] : Universal setting options
(1) Buzzer
A buzzer is built in. When an alarm is generated on the display, the sound will come out from the MCU-004.
(2) Switch Disp.
The [Switch Disp.] key switches an active display when there are multiple MFDs in the network.
In the example at right, there are two (2) displays.
The MCU-004 is connected to the Display No. 1. By
default, the MCU-004 controls the Display No. 1.
Pressing the [Switch Disp.] key, the MCU-004 can
control the Display No. 2.
