3. Installing MCU-004

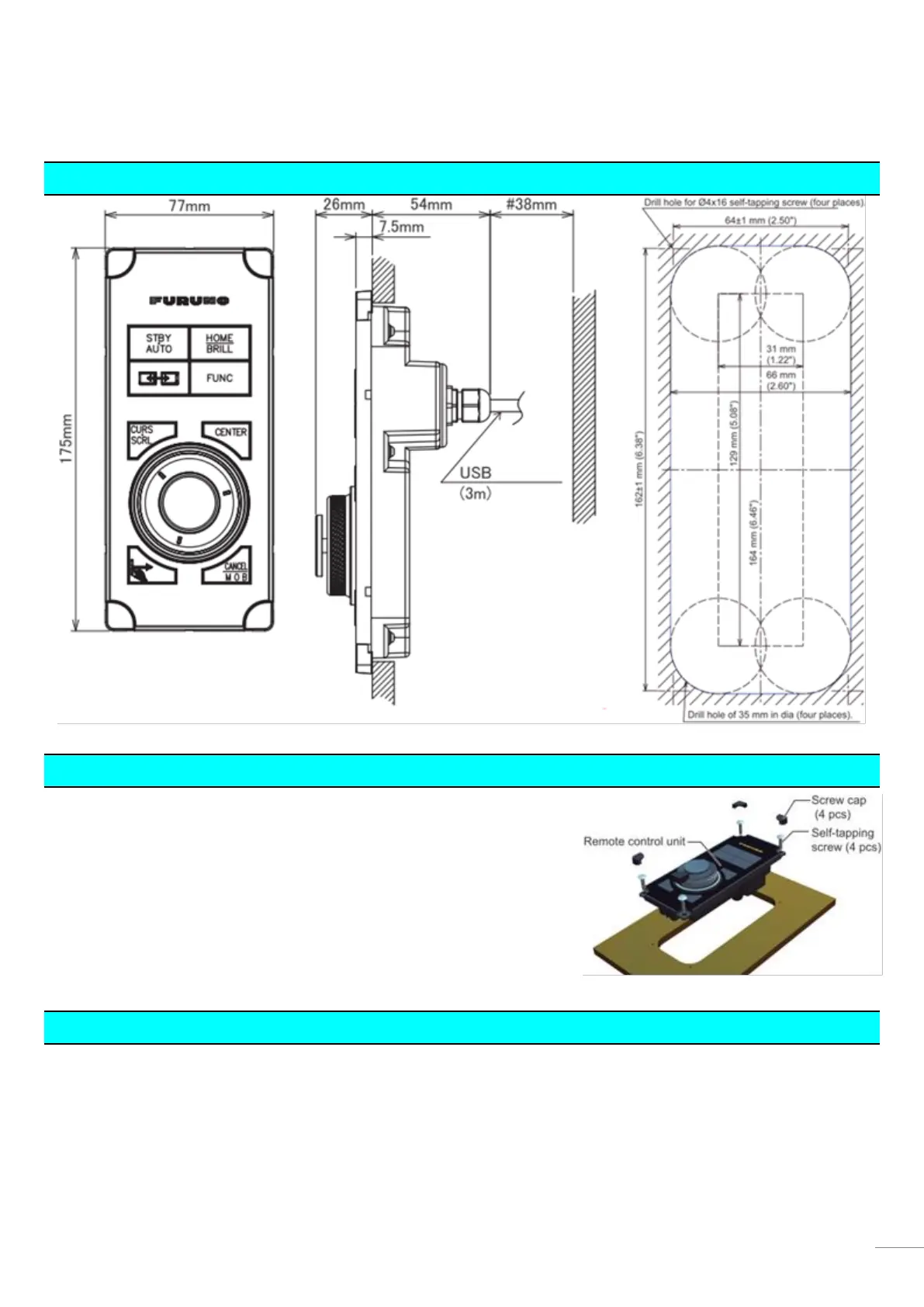

3-1 Dimensions
3-2 Flush Mounting
The MCU-004 can be flush mounted on a console from the front side as
shown in the illustration at right.
(Extracted from User’s Guide)
3-3 Interconnection
The MCU-004 can be used with the TZT9/14/BB and TZTL12F/15F by USB connection. Connect the MCU-004 to the USB
port of the TZT9/14/BB and TZTL12F/15F as shown in the following examples.
