Fusion MS-NRX200i Instruction Manual

8
Secure the remote control to the mounting surface using the
included screws.
9
Install the decorative bezel around the edges of the remote
control.
10
Route the NMEA 2000 cable away from sources of
interference and connect it to the NMEA 2000 network or the
Fusion remote control network.
More Information
Specifications
Specification Measurement
Operating voltage From 10.8 to 16 Vdc negative ground
Electrical input current 110 mA at 12 Vdc
NMEA 2000 Load Equivalency
Number (LEN)
3 (150 mA)
Operating temperature From 0 to 50°C (from 32 to 122°F)
Storage temperature From -20 to 70°C (from -4 to 158°F)

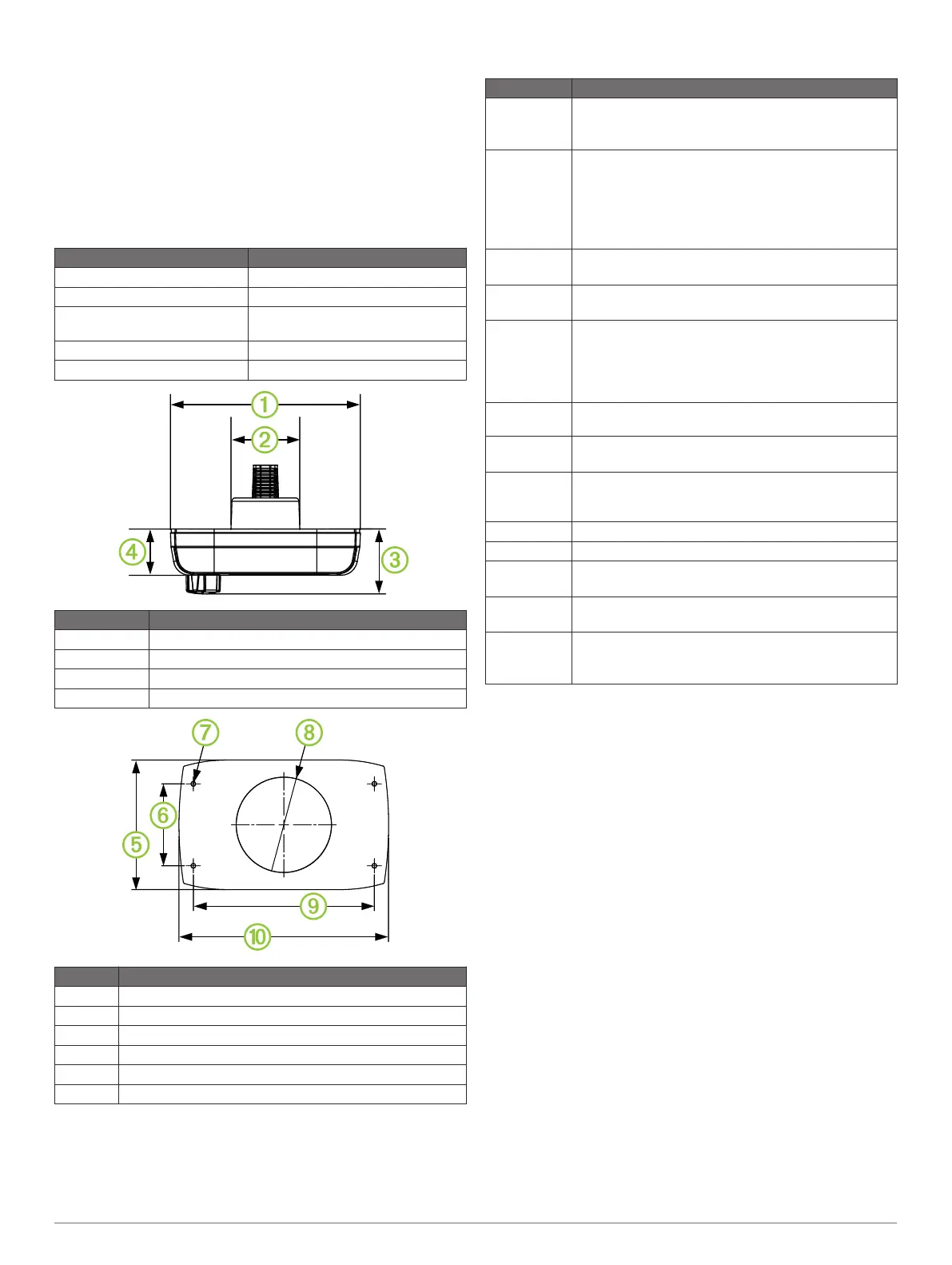

Item Measurement
À
110 mm (4
3
/
8
in.)
Á
40 mm (1
5
/
8
in.)
Â
30 mm (1
3
/
16
in.)
Ã
17.5 mm (
11
/
16
in.)
Item Measurement
Ä
68 mm (2
11
/
16
in.)
Å
43 mm (1
11
/
16
in.)
Æ
2.5 mm (
3
/
32
in.) (pilot hole bit)
Ç
50 mm (2 in.) (hole saw)
È
95 mm (3
3
/
4
in.)
É
110 mm (4
3
/
8
in.)
Supported NMEA 2000 PGN Information
PGN Number Data Field
127250 Heading sensor reference:
• 0: True
• 1: Magnetic
128259 Water speed reference:
• 00: Paddle wheel
• 01: Pitot tube
• 02: Doppler log
• 03: Correlation log (ultrasound)
• 04: Electromagnetic (EM) log
128267 Water depth:
• Offset add or subtract
129025 Position:
• Latitude and longitude
129026 Course Over Ground (COG) and Speed Over Ground
(SOG)
COG reference:
• 0: True
• 1: Magnetic
129029 Global Navigation Satellite System (GNSS) position
data
129284 Navigation data:
• ETA date
130306 Wind data reference:
• 0x02 : Apparent wind (relative to the vessel
centerline)
130310 Water temperature and air pressure
130311 Water temperature and air pressure
130312 Temperature and temperature source:
• - 00 : Sea temperature
130314 Actual pressure and pressure source:
• 00 : Atmospheric pressure
130577 Direction data and COG reference:
• 0: True
• 1: Magnetic
Registering Your Fusion MS-NRX200i
Help us better support you by completing our online registration
today.
• Go to www.fusionentertainment.com.
• Keep the original sales receipt, or a photocopy, in a safe
place.
Getting the Owner's Manual
You can get the latest owner's manual and translations of
manuals from the web.
1
Go to www.fusionentertainment.com/marine.
2
Select your product.
3
Select Manuals & Downloads.
4
Select a manual.
2 Fusion MS-NRX200i Installation Instructions

Fusion MS-NRX200i Specifications

General

Brand	Fusion
Model	MS-NRX200i
Category	Remote Control
Language	English
