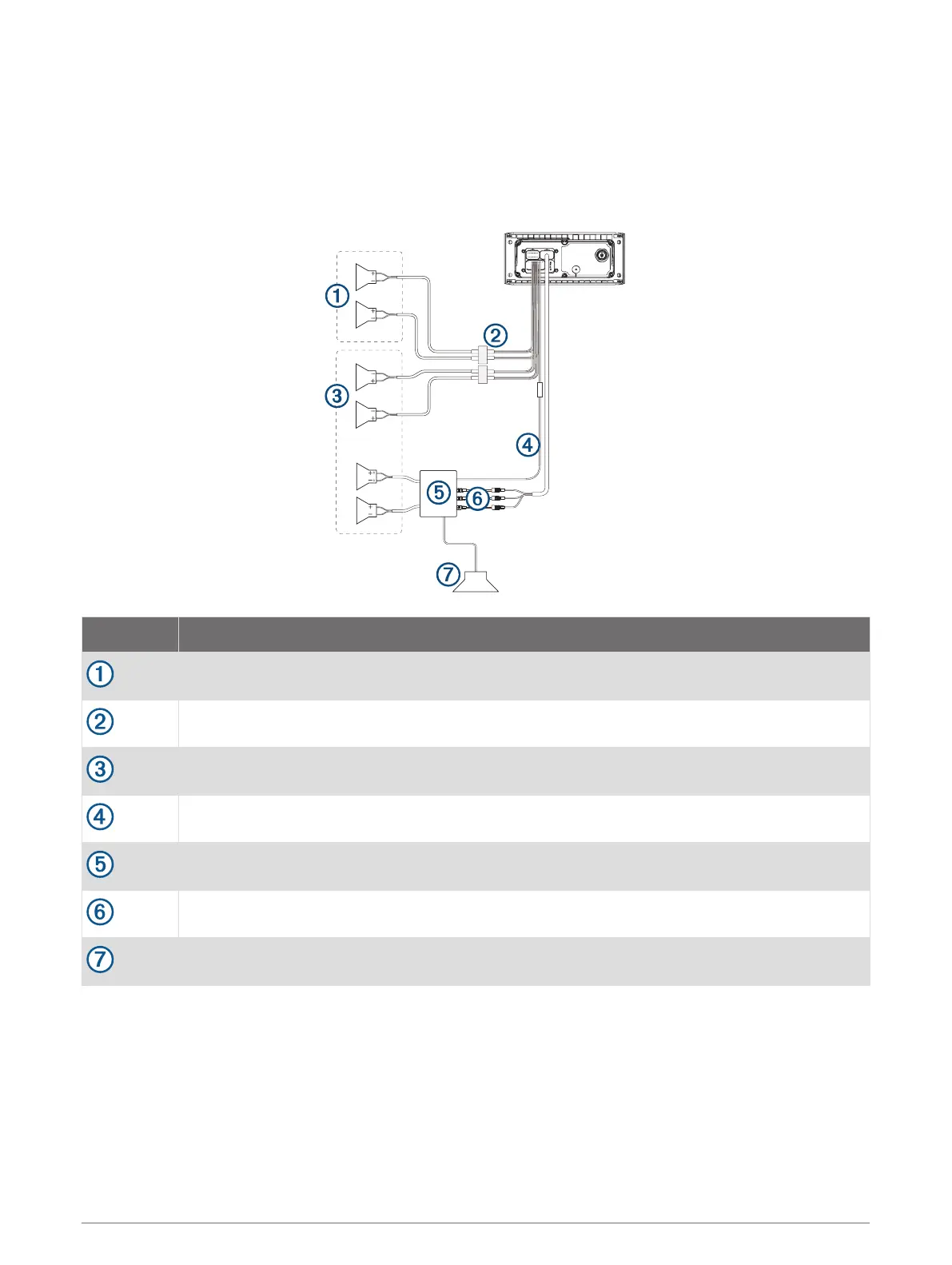

Complete System Wiring

This diagram illustrates a system installation with an external amplifier and subwoofer connected to the stereo

using a line out. You can connect an amplifier and subwoofer only to zone 1 on the stereo.

NOTE: You can also connect speakers to the speaker wires for the internal stereo amplifier while using an

external amplifier connected to the line out. Adjusting the volume affects speakers connected to the internal

amplifier and speakers connected to the line out. This may result in uneven volume levels.

Item Description

Zone 2 speakers

Water-tight connection

Zone 1 speakers

Amplifier-on signal wire

Powered amplifier

Zone 1 line out and zone 1 subwoofer out

Zone 1 subwoofer

Fusion MS-RA60 Installation Instructions 7
