7. The carbon element goes in
first.

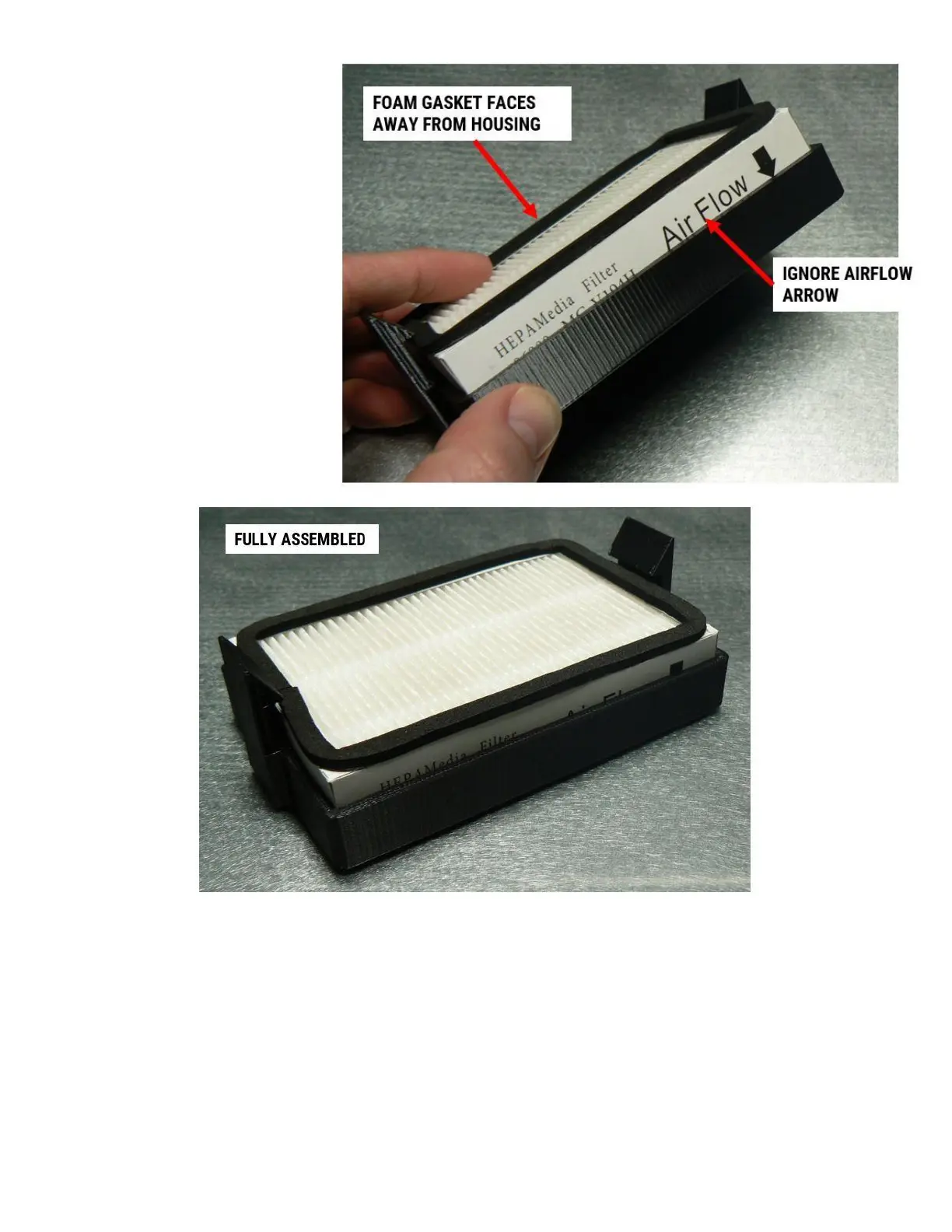

8. IGNORE the airflow direction
arrow on the filter; install it
as shown so that the foam
lip sticks out of the carrier.
9. Position the assembly over the filter base and gently press down on both ends to engage the
latches.
10.Make sure the latches are fully engaged by manually moving the X axis rail past the filter to the front
of the machine. If the carrier collides with the idler pulley it's not installed correctly
