FUTABA 6EXP - Flow Chart HELI Mode Functions

32
3TICK-ODE
MODE
key
MODE key
PCM mode onry
SELECT key
DATA INPUT
lever
[CH 2-5]
[CH 2-5]
[CH 2-3]
[2-4]
[2-4]
[2-4]
[2-4]
[Model 2-5]
[CH 2-5]
(press MODE and SELECT keys for one second)
*1. Press the DATA INPUT lever
for 0.5 seconds
*2. Press the DATA INPUT lever
for about two seconds
*1
*1
*1
*1
*1
*1
*2

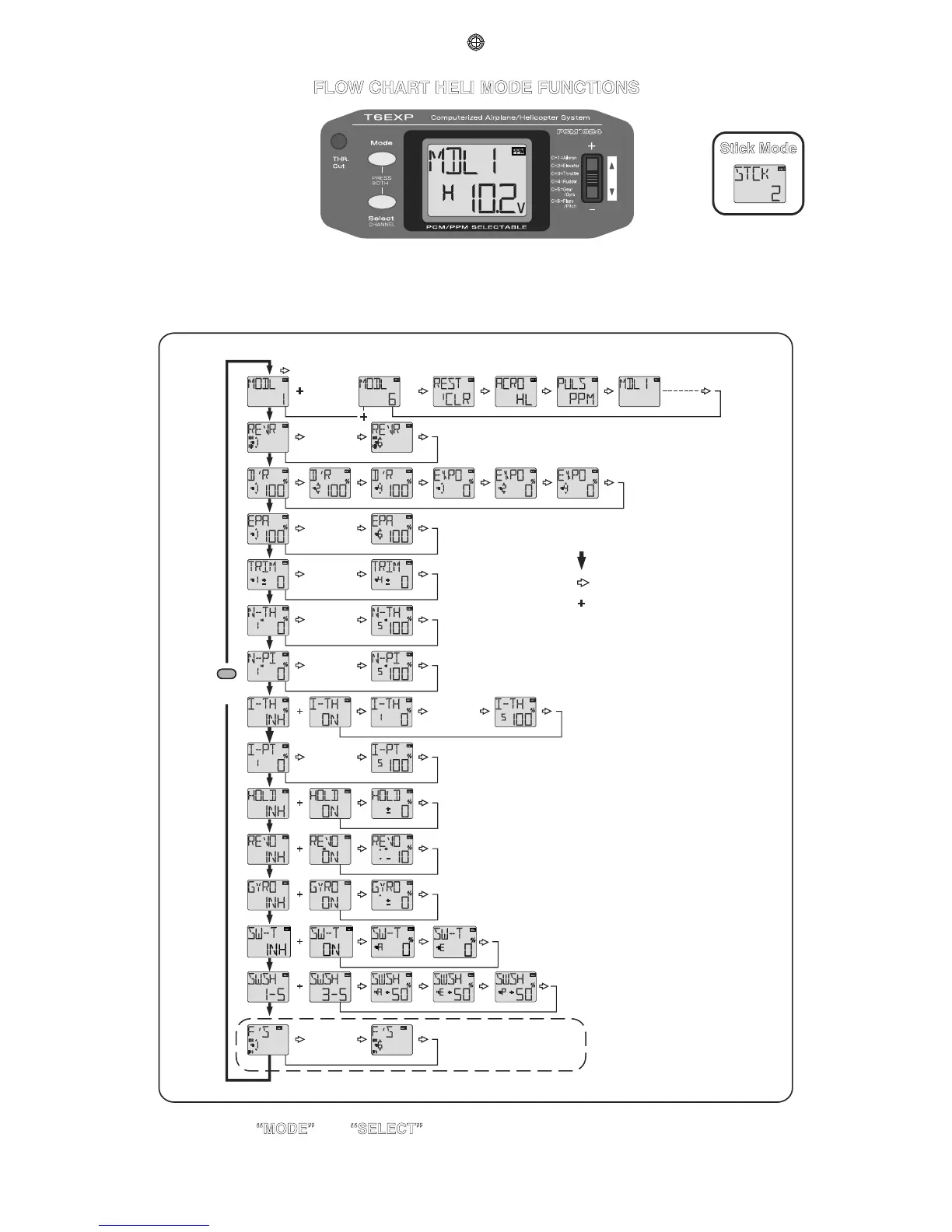

FLOW CHART HELI MODE FUNCTIONS
(Screen at Startup)
To enter or leave Programming Mode,
press MODE and SELECT keys
simultaneously for one second.
To change the Stick Mode, turn on
the transmitter holding MODE and
SELECT keys down simultaneously.
Use the DATA INPUT lever to display
the desired stick mode.
Simultaneously Press the
“MODE” and “SELECT” keys and hold them down for one second to enter the programming
mode. Press the keys again (or turn off the transmitter) to exit the programming mode.
