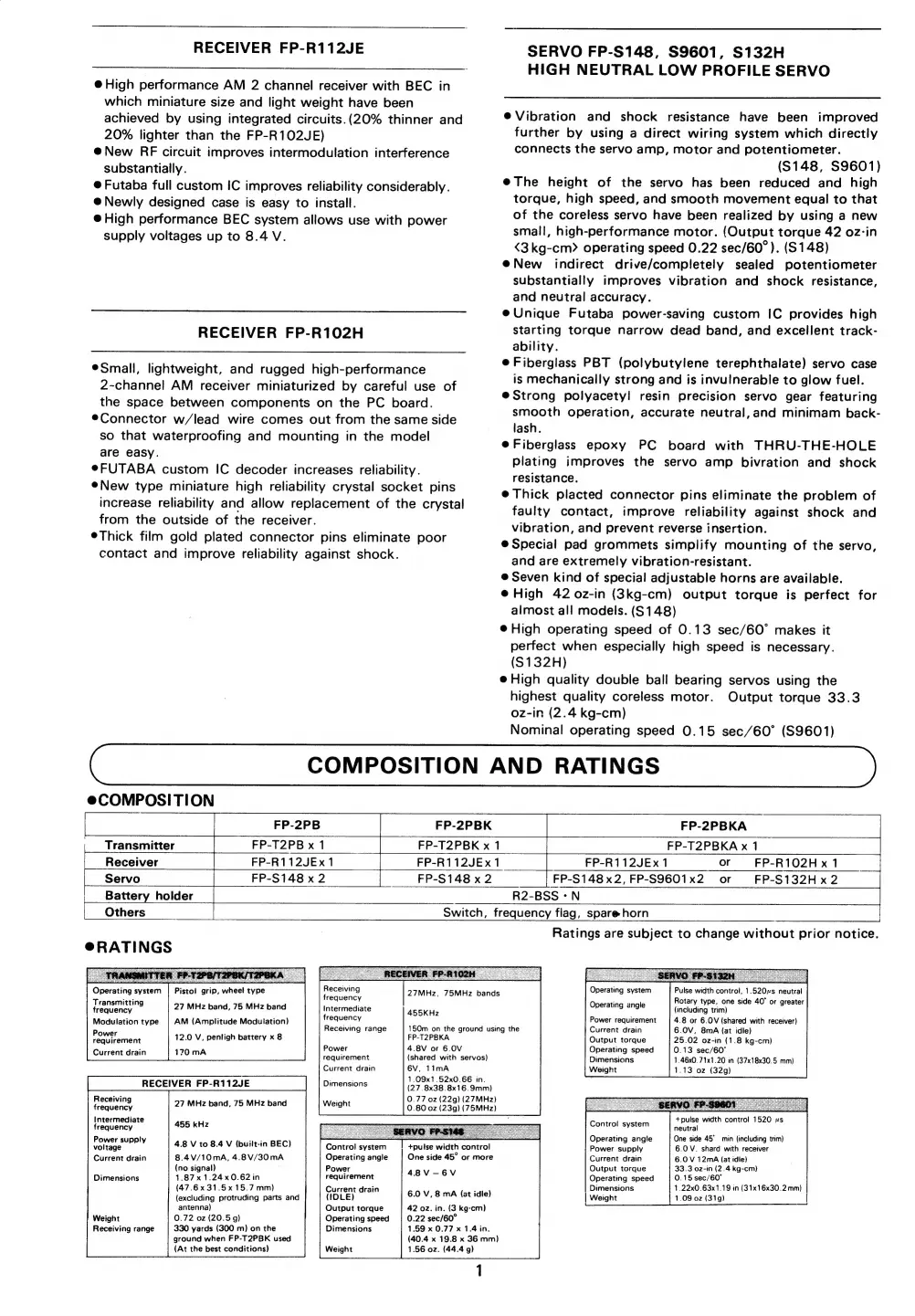

FUTABA FP-2PB User Manual

RECEIVER FP-R112JE
@ High performance AM 2 channel receiver with BEC in
which miniature size and light weight have been
achieved by using integrated circuits.(20% thinner and
20% lighter than the FP-R102JE)
@New RF circuit improves intermodulation interference
substantially.
@ Futaba full custom IC improves reliability considerably.
@ Newly designed case is easy to install.
@ High performance BEC system allows use with power
supply voltages up to 8.4 V.
RECEIVER FP-R102H
eSmall, lightweight, and rugged high-performance
2-channel AM receiver miniaturized by careful use of
the space between components on the PC board.
e Connector w/lead wire comes out from the same side
so that waterproofing and mounting in the model
are easy.
e FUTABA custom IC decoder increases reliability.
eNew type miniature high reliability crystal socket pins
increase reliability and allow replacement of the crystal
from the outside of the receiver.
eThick film gold plated connector pins eliminate poor
contact and improve reliability against shock.
COMPOSITION AND RATINGS
SERVO FP-S148, S9601, S132H
HIGH NEUTRAL LOW PROFILE SERVO
e Vibration and shock resistance have been improved
further by using a direct wiring system which directly
connects the servo amp, motor and potentiometer.
(S148, S9601)
e The height of the servo has been reduced and high
torque, high speed, and smooth movement equal to that
of the coreless servo have been realized by using a new
small, high-performance motor. (Output torque 42 oz:in
<3 kg-cm> operating speed 0.22 sec/60°). (S148)
e New indirect drive/completely sealed potentiometer
substantially improves vibration and shock resistance,
and neutral accuracy.
e Unique Futaba power-saving custom IC provides high
starting torque narrow dead band, and excellent track-
ability.
è Fiberglass PBT (polybutylene terephthalate) servo case
is mechanically strong and is invulnerable to glow fuel.
@Strong polyacety! resin precision servo gear featuring
smooth operation, accurate neutral, and minimam back-
lash.
e Fiberglass epoxy PC board with THRU-THE-HOLE
plating improves the servo amp bivration and shock
resistance.
è Thick placted connector pins eliminate the problem of
faulty contact, improve reliability against shock and
vibration, and prevent reverse insertion.
@ Special pad grommets simplify mounting of the servo,
and are extremely vibration-resistant.
@ Seven kind of special adjustable horns are available.
e High 42 0z-in (3kg-cm) output torque is perfect for
almost all models. (S148)
è High operating speed of 0.13 sec/60° makes it
perfect when especially high speed is necessary.
(S132H)
e High quality double ball bearing servos using the
highest quality coreless motor. Output torque 33.3
oz-in (2.4 kg-cm)
Nominal operating speed 0.15 sec/60° (S9601)
e COMPOSITION
FP-2PB FP-2PBK FP-2PBKA
Transmitter FP-T2PB x 1 FP-T2PBKA x 1
Receiver FP-R112JEx 1 FP-R112JEx 1 FP-R112JEx 1 or FP-R102H x 1
Servo FP-S148 x 2 FP-S148x2, FP-S9601x2 or _FP-S132Hx 2
Battery holder R2-BSS - N
| Others Switch, frequency fiag, spare horn
Ratings are subject to change without prior notice.
®RATINGS
Receiving
frequency
Intermediate 455KHz
frequency
Receiving range
Operating system | Pistol grip, wheel type
Transmitting
frequency 27 MHz band, 75 MHz band
Modulation type | AM (Amplitude Modulation)
Power :
requirement 12.0 V, pentigh battery x 8
Current drain 170 mA
FP-T2PBKA
Power 4.8V or 6.0V
requirement
Current drain 6V, 11mA
Dimensions
RECEIVER FP-R112JE
Receiving
frequency
Intermediate
frequency 455 kHz
Power supply
voltage
Current drain
27 MHz band, 75 MHz band Weight
4.8 V to 8.4 V (built-in BEC)
8.4V/10mA, 4.8 V/30 mA
(no signal)
1.87x 1.24x0.62 in
(47.6x 31.5x 15.7 mm)
(excluding protruding parts and
antenna)
Weight 0.72 oz (20.5 4g)
Receiving range 330 yards (300 m) on the
ground when FP-T2PBK used
(At the best conditions)
Controli system
Operating angle
Power
requirement 48V—-6V
Current drain
(IDLE)
Dimensions
Output torque
Operating speed
Dimensions
27MHz, 75MHz bands
150m on the ground using the
(shared with servos)
1.09x1.52x0.66 in.
(27 .8x38.8x16.9mm)
0.77 oz (22g) (27MHz)
0.80 oz (23g) (75MHz)
p
One side 45° or more
6.0 V, 8 mA (at idle)
42 02. in. (3 kg-cm)
0.22 sec/60°
1.59 x 0.77 x 1.4 in.
(40.4 x 19.8 x 36 mm)
Weight 1.56 oz. (44.4 g)
perating system Pulse width control, 1.520us neutral
Rotary type, one side 40° or greater
(including trim)
4.8 or 6.0V (shared with receiver}
6.0V, 8mA (at idle)
25.02 oz-in (1.8 kg-cm)
Operating angle
Power requirement
Current drain
Output torque
Operating speed 0.13 sec/60°
Dimensions 1.46x0.71x1.20 in (37x18x30.5 mm)
Weight 1.13 oz (32g)
+pulse width control 1520 us
neutral
One side 45° min (including trim)
6.0 V. shard with receiver
6.0 V 12mA (at idle}
33.3 oz-in (2.4 kg-cm)
Control system
Operating angle
Power supply
Current drain
Output torque
Operating speed 0.15 sec/60°
Dimensions 1.22x0.63x1.19 in (31x16x30.2 mm)
| Weight 1.09 oz (31g) _|
