TRANSMITTER FP-T2PB/T2PBK/T2PBKA
@ Nomenclature

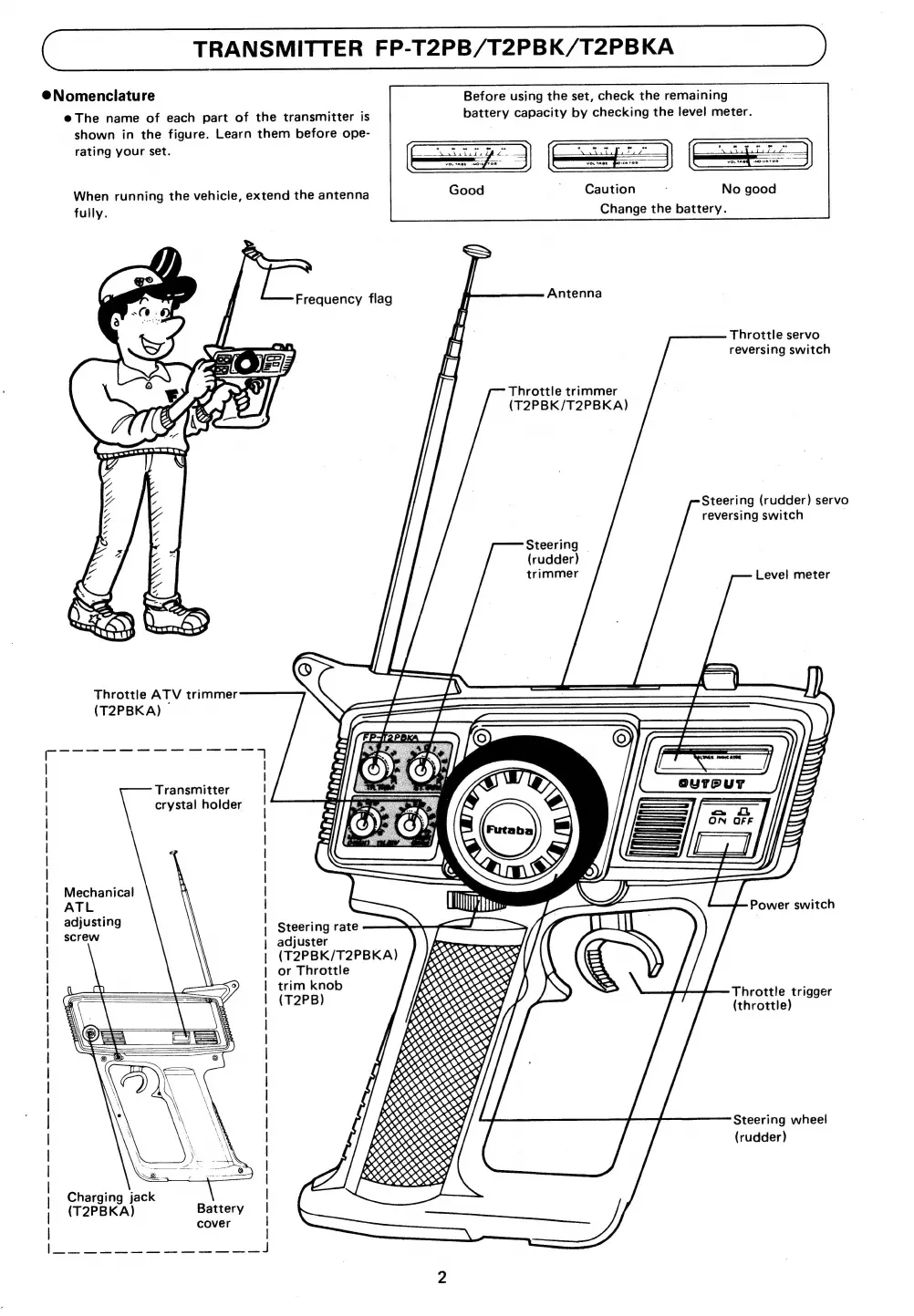

è The name of each part of the transmitter is
shown in the figure. Learn them before ope-
rating your set.
Before using the set, check the remaining
battery capacity by checking the level meter.
Caution
Change the battery.
When running the vehicle, extend the antenna
fully.
Frequency
flag
Antenna
i Throttle servo
la reversing switch
Throttle trimmer
(T2PBK/T2PBKA)
Steering (rudder) servo
reversing switch |
Steering ©
(rudder)
trimmer Level meter
Throttle ATV trimmer
(T2PBKA)
Transmitter
\ crystal holder
Mechanical
ATL
adjusting
Steering rate mas
adjuster
(T2PBK/T2PBKA)
or Throttle
trim knob
(T2PB)
Throttle trigger
(throttle)
Steering wheel
(rudder)
Charging jack
(T2PBKA) Battery
cover
