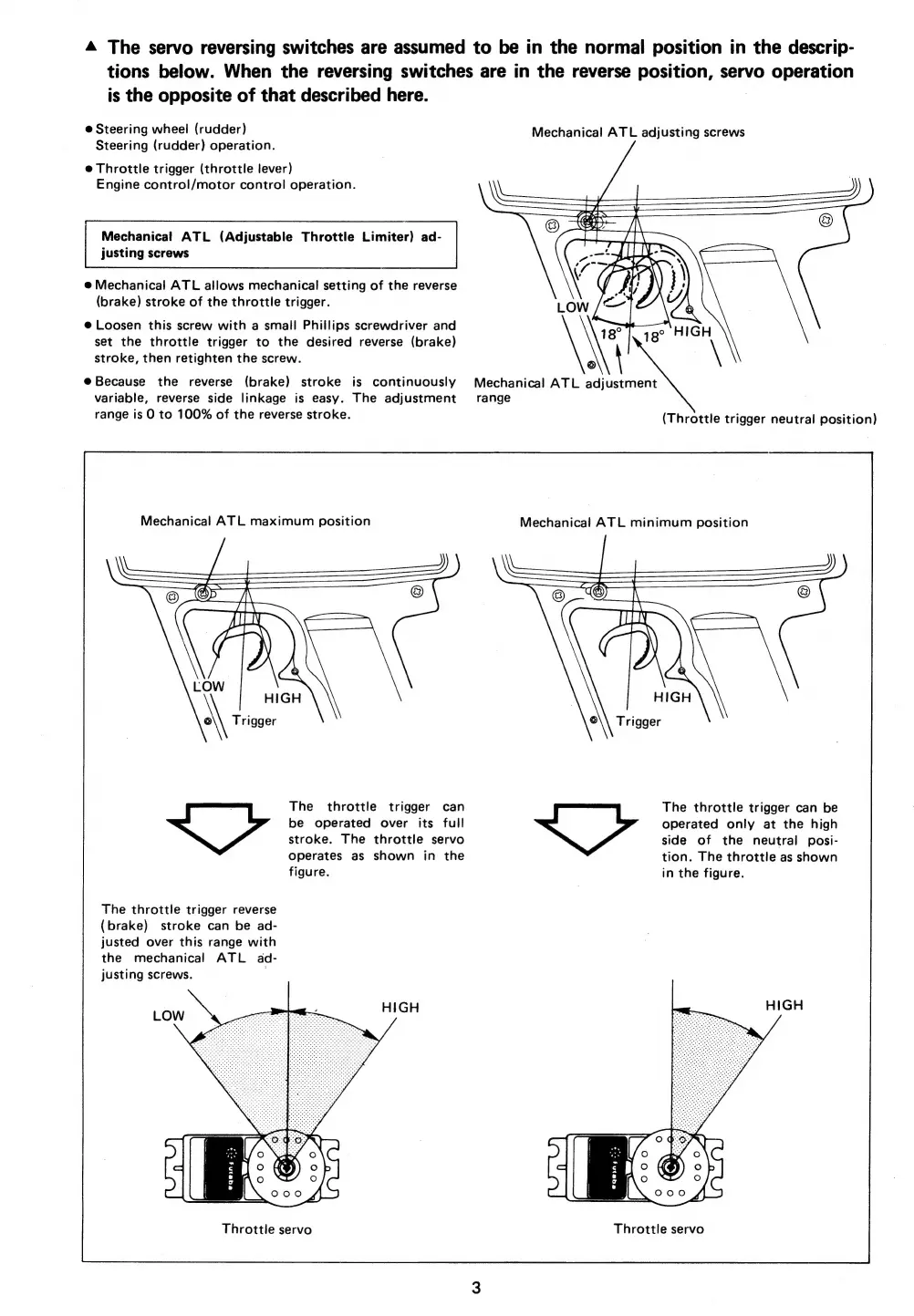

4 The servo reversing switches are assumed to be in the normal position in the descrip-
tions below. When the reversing switches are in the reverse position, servo operation
is the opposite of that described here.
@ Steering wheel (rudder)
Steering (rudder) operation.
è Throttle trigger (throttle lever)
Engine control/motor control operation.
Mechanical ATL (Adjustable Throttle Limiter) ad-
justing screws
e Mechanical ATL allows mechanical setting of the reverse
(brake) stroke of the throttle trigger.
@ Loosen this screw with a small Phillips screwdriver and
set the throttle trigger to the desired reverse (brake)
stroke, then retighten the screw.
e Because the reverse (brake) stroke is continuously
variable, reverse side linkage is easy. The adjustment
range is O to 100% of the reverse stroke.
Mechanical ATL maximum position
HIGH
Trigger
The throttle trigger can
be operated over its full
stroke. The throttle servo
operates as shown in the
figure.
The throttle trigger reverse
(brake) stroke can be ad-
justed over this range with
the mechanical ATL ad-
justing screws. |
Throttle servo
Mechanical ATL adjusting screws
range
1
Mechanical ATL AN
(Throttle trigger neutral position)
Mechanical ATL minimum position
A
©
25
HIGH
Trigger
The throttle trigger can be
operated only at the high
side of the neutral posi-
tion. The throttle as shown
in the figure.
-tn
aye
eye
~
g
a
8
g
e
Throttle servo
