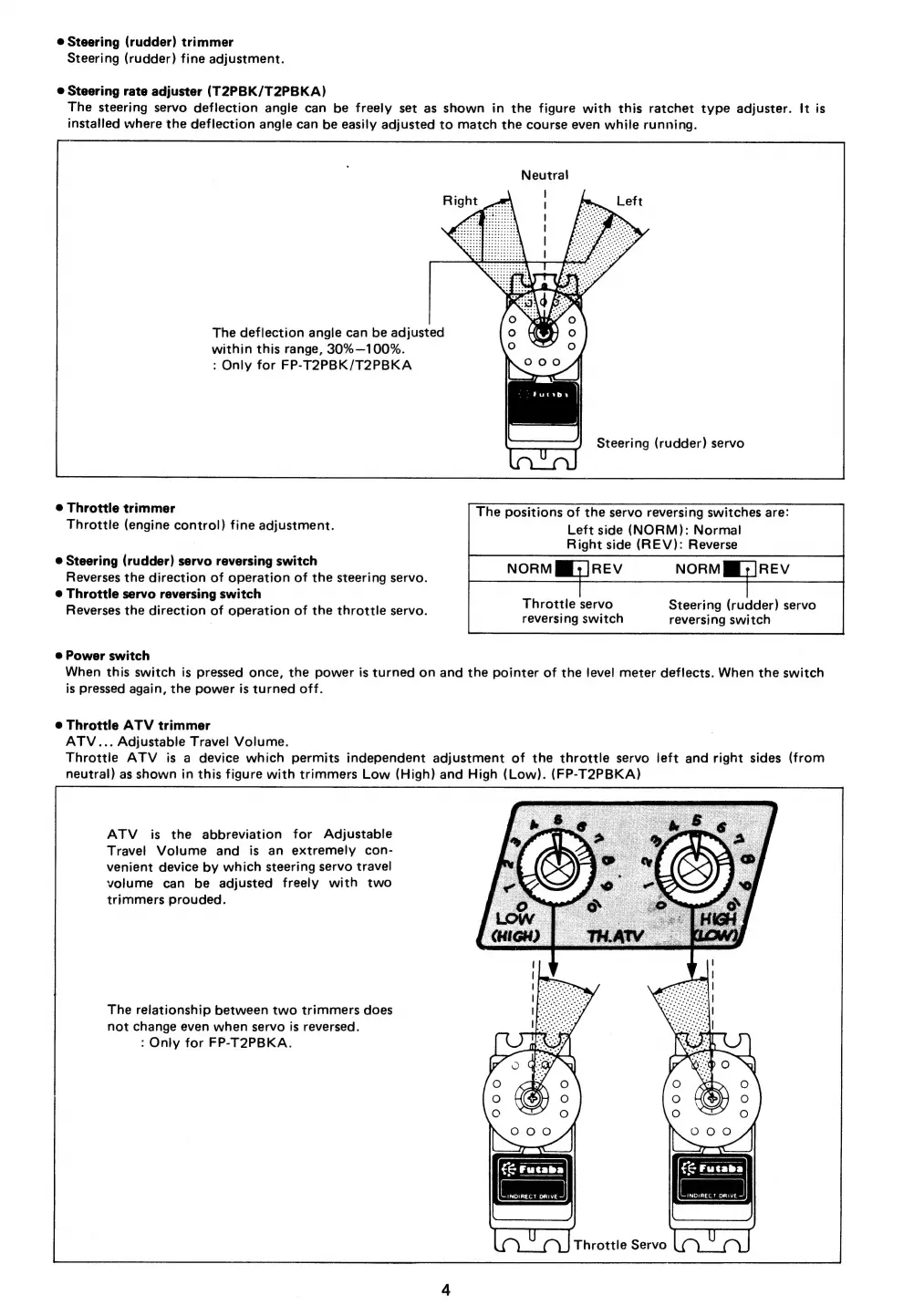

FUTABA FP-2PB - Steering Trim Adjustment; Steering Rate Adjuster; Throttle Trimmer; Servo Reversing Switches

© Steering (rudder) trimmer
Steering (rudder) fine adjustment.
© Steering rate adjuster (T2PBK/T2PBKA)
The steering servo deflection angle can be freely set as shown in the figure with this ratchet type adjuster. It is
installed where the deflection angle can be easily adjusted to match the course even while running.
Neutral
The deflection angle can be adjusted
within this range, 30%—100%.
: Only for FP-T2PBK/T2PBKA
Steering (rudder) servo
© Throttle trimmer
Throttle (engine control) fine adjustment.
The positions of the servo reversing switches are:
Left side (NORM): Normal
Right side (REV): Reverse
NORM fi; REV NORM Bg? REV
Throttle servo Steering (rudder) servo
reversing switch reversing switch
© Steering (rudder) servo reversing switch
Reverses the direction of operation of the steering servo.
@ Throttle servo reversing switch
Reverses the direction of operation of the throttle servo.
è Power switch
When this switch is pressed once, the power is turned on and the pointer of the level meter deflects. When the switch
is pressed again, the power is turned off.
è Throttle ATV trimmer
ATV... Adjustable Travel Volume.
Throttle ATV is a device which permits independent adjustment of the throttle servo left and right sides (from
neutral) as shown in this figure with trimmers Low (High) and High (Low). (FP-T2PBKA)
ATV is the abbreviation for Adjustable
Travel Volume and is an extremely con-
venient device by which steering servo travel
volume can be adjusted freely with two
trimmers prouded.
The relationship between two trimmers does
not change even when servo is reversed.
: Only for FP-T2PBKA.
ee DRIVE J
eru
ues, save 1
Throttle Servo
