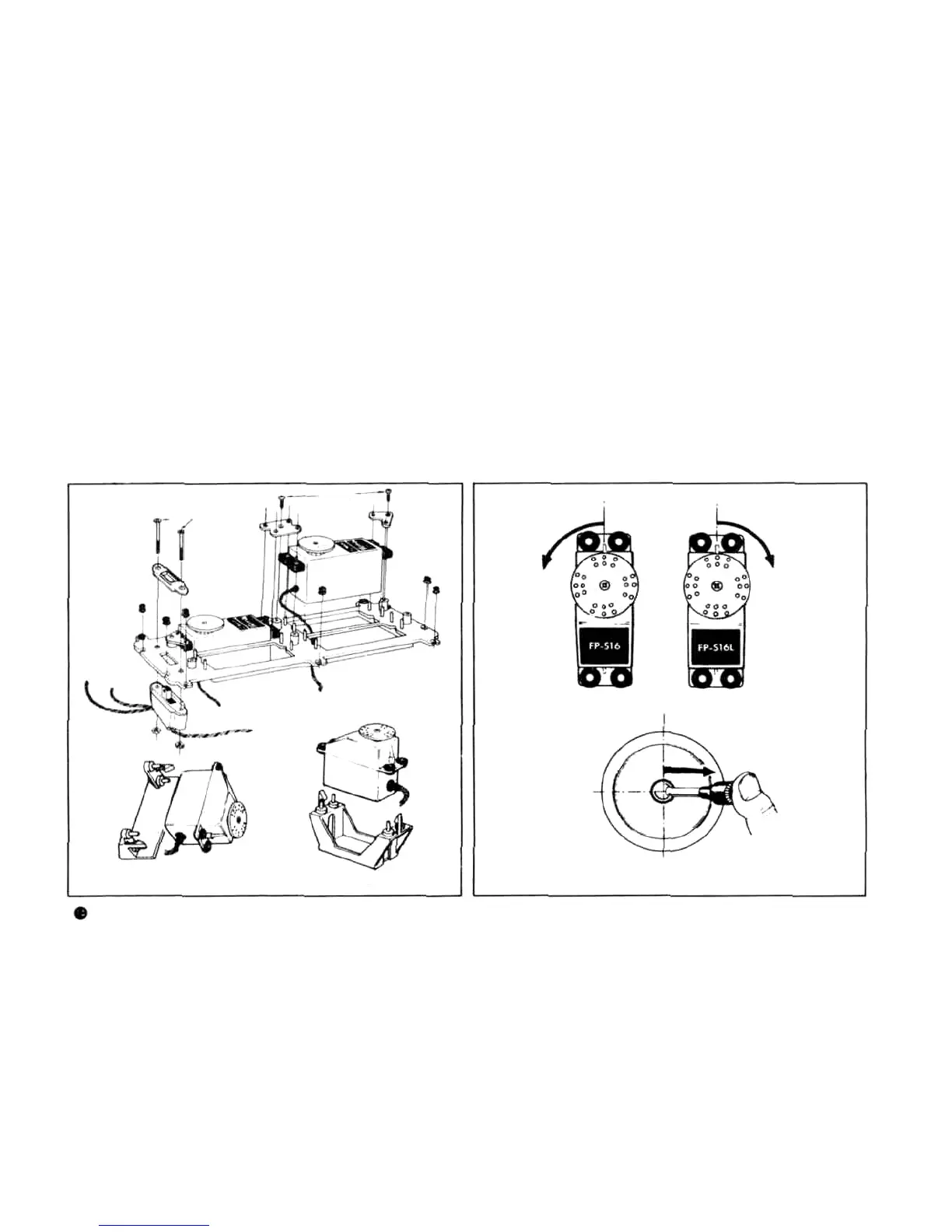

3. The use of a servo tray is extremely convenient when installing the servos. The method of installation is
illustrated in the figure. (Insert each connector fully.) Don't forget to confirm that the motion of the servo horns
and rods matches the direction of operation of the transmitter sticks. Use the reversible servo (L servo) as a
shoulder wing throttle servo or for rudder and nose gear operation.
• NOTE; The L servo cannot be used for aileron control. (The operation of the stick and rudder are opposite.)
Fig.
6
TYPE"H"
TYPE"V
STICK TO RIGHT
Pig.
7
NORMAL
(TO COUTER-
CLOCKWISE]
REVERSE
(TO CLOCKWISE)
2.3»18
2.6x6
