FDC_C-Series_Quick_Operation_User_Manual_UMQOC621A.doc Page 2 of 20
Quick Operation Manual C22/C62/C82/C83/C72/C42/R22

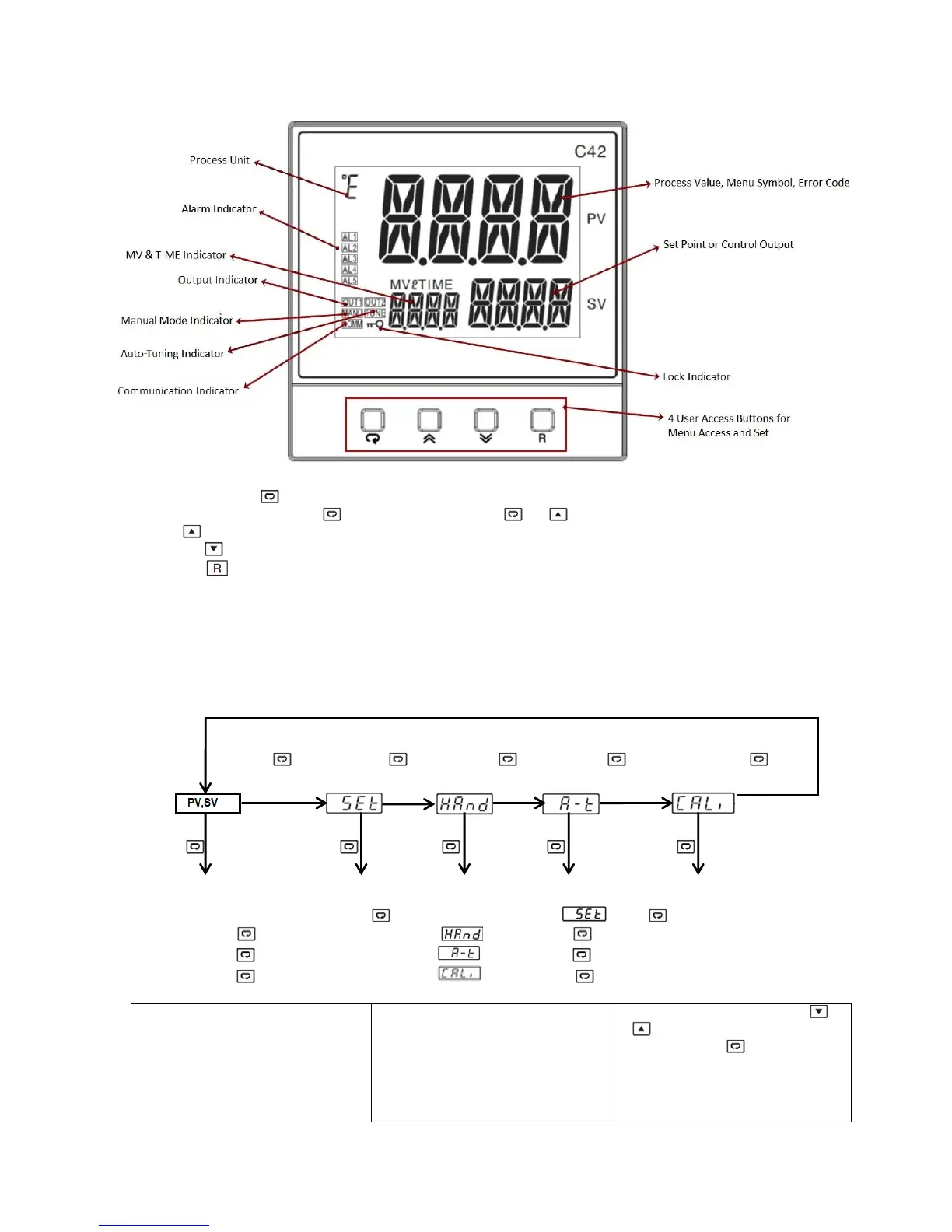

1. DISPLAY AND KEYS:
During power-up, the upper display will show PROG and the lower display will show the Firmware version for 6 seconds.
SCROLL/ENTER KEY:
This key is used to select a parameter to be viewed or adjusted.
Press
for the next parameter. Press and key for return to the previous parameter.
UP KEY:
This key is used to increase the value of the selected parameter.
DOWN KEY:
This key is used to decrease the value of the selected parameter.
RESET KEY:
This key is used to:
1. Revert the display to the home screen.
2. Reset a latching alarm once the alarm condition is removed.
3. Stop manual control mode, auto-tuning mode or calibration mode.
4. Clear an auto-tuning or communication error message.
5. Restart the dwell timer when the dwell timer has timed out.
6. Enter the manual control menu if failure mode occurs.
2. MENU FLOWCHART:
5 Sec 6.2 Sec 7.4 Sec 8.6 Sec 9.8 Sec
5 Sec 5 Sec 2~3 Sec
User Menu Setup Menu Manual Mode Auto-Tuning Mode Calibration Mode
SCROLL/ENTER KEY: 1. Press and hold
for 5 seconds, display will show . Press to enter the Setup Menu.
2. Press and hold
for 6.2 seconds, display will show . Press and hold for 5 seconds to enter Manual Mode.
3. Press and hold
for 7.4 seconds, display will show . Press and hold for 5 seconds to enter Auto-Tuning Mode.
4. Press and hold
for 8.6 seconds, display will show . Press and hold for 2~3 seconds to enter Calibration Mode.
2.1 User Menu: The below user menu
parameters are available depends on
user’s selection.
2.2 Setup Menu: The setup menu has
been categorized into eight categories
as below.
1. bASE: Basic Menu
2. oUT: Output Menu
3. ALRM: Alarm Menu
4. EI: Event Input Menu
2.2.1 Basic Menu (bASE): Use
or
key to get bASE in the lower
display, then use
key to enter basic
menu parameters.
To Next Page
