Future Design FDC-C22 User Manual

FDC_C-Series_Quick_Operation_User_Manual_UMQOC621A.doc Page 4 of 20

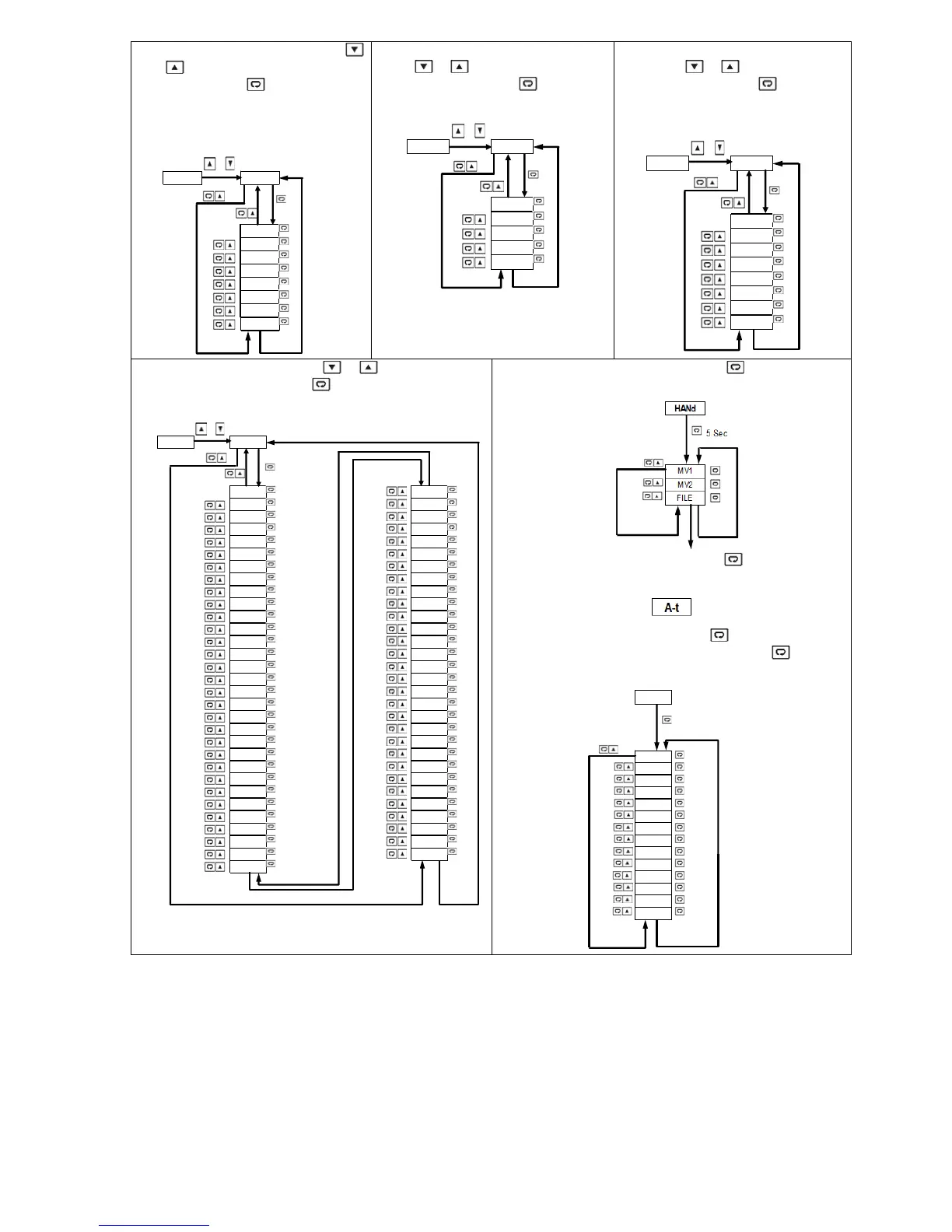

2.2.5 User Select Menu (SEL): Use
or
key to get SEL in the lower
display, then use
key to enter user
select menu parameters. Up to 8
parameters by selecting SEL1~SEL8
can be put in the User Menu.
or
SET SEL
SEL1
SEL2
SEL3
SEL4
SEL5
SEL6
SEL7
SEL8
2.2.6 Communication Menu (CoMM):
Use
or key to get CoMM in the
lower display, then use
key to enter
communication menu parameters.
or
SET CoMM
ADDR
BAUD
DAT A
PARI
STOP
2.2.7 Current Transformer Input Menu
(Ct): Use
or key to get Ct in the
lower display, then use
key to enter
current transformer input menu
parameters.
or
SET Ct
HBEN
HBHY
HB1T
HB2T
HSEN
HSHY
HS1T
HS2T
2.2.8 Profile Menu (PRoF): Use or key to get PRoF in
the lower display, then use
key to enter profile menu
parameters.
or
SET PRoF
PROF T SP7
RMPU RPT7
ST AR SKT7
END TSP8
PFR RPT8
HBLO SKT8
HBHI TSP9
HBT RPT9
CYCL SKT9
CYCR TSPA
ST EP RPTA
TIMR SKTA
ST AT T SPB
TSP1 RPTB
RPT1 SKTB
SKT1 TSPC
TSP2 RPTC
RPT2 SKTC
SKT2 TSPD
TSP3 RPTD
RPT3 SKTD
SKT3 TSPE
TSP4 RPTE
RPT4 SKTE
SKT4 TSPF
TSP5 RPTF
RPT5 SKTF
SKT5 TSPG
TSP6 RPTG
RPT6 SKTG
SKT6
2.3 Manual Mode Menu: Press and hold
key for 5 seconds
until MANU indicator flashes to enter manual mode menu.
2.4 Auto-Tuning Mode: Press and hold
key for 5 seconds
until TUNE indicator flashes to activate auto-tuning mode.
2.5 Calibration Mode: Press and hold
key for 2~3 seconds,
release it to enter calibration mode. Then press
Key for 5
seconds to perform calibration.
CALI
2 sec minimum,3 sec maximum
ADLO
ADHI
RTDL
RTDH
CJLO
CJHI
V1L
V1G
MA1L
MA1G
V2L
V2G
MA2L
MA2G
Note: Using Manual, Auto-Tuning, Calibration modes will break the control loop and change some of the previous setting data. Make
sure that the system is allowable to apply these modes.
