Future light MH-660 - Description of the Fixture; Control Board

30

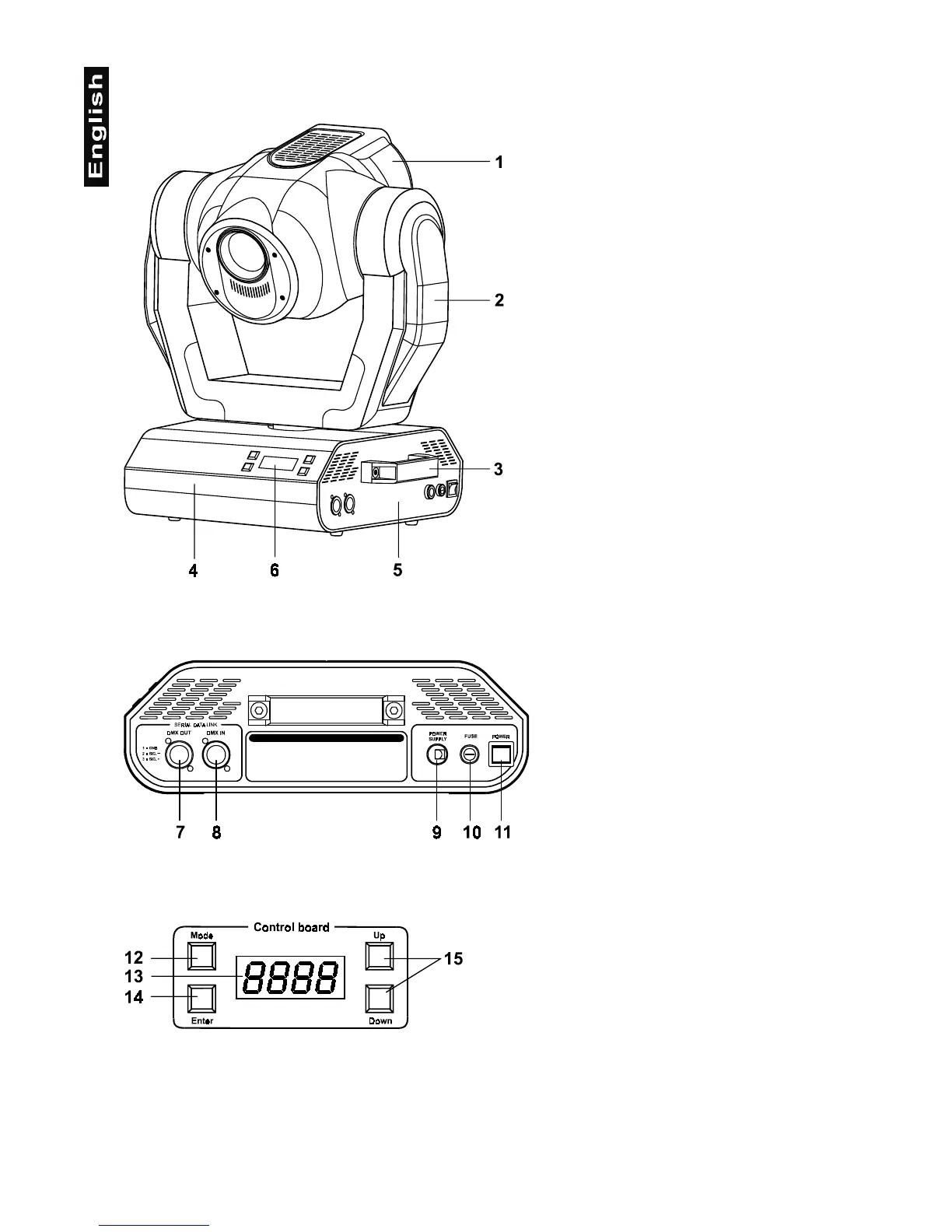

Description of the fixture
1
- Projector-head
2
- Yoke
3
- Carring handles
4
- Base
5
- Base - side panel
6
- Control Board
Base - side panel:
7
- DMX-output
8
- DMX-input
9
- Powercord
10
- Fuseholder
11
- Power-switch
Control Board:
12
- Mode-button
13
- Display
14
- Enter-button
15
- Up/Down-buttons
