49
Channel 6: Fan speed, On/Off lamp, reset
Channel 7: Colours
Channel 8: No function
Channel 9: Prism-wheel
Channel 10: Prism-rotation
Channel 11: Rotating gobos
Channel 12: Gobo rotation, gobo indexing
Channel 13: No function
Channel 14: Focus
Channel 15: Shutter, strobe
Channel 16: Dimmer
Pan/Tilt
Pan movement range 530°
Tilt movement range 280°
8/16 bit movement resolution
Automatic Pan / Tilt position correction
Maximum PAN-movement 530° in 2.65 s
Maximum TILT-movement 280° in 1.68 s
Rigging
Stands directly on the floor
Mounts horizontally or vertically with 2 clamps
2 truss orientation
Safety chain/cord attachment point
Temperatures
Maximum ambient temperature
t
a
: 45° C
Maximum housing temperature
t
B
(steady state): 80° C

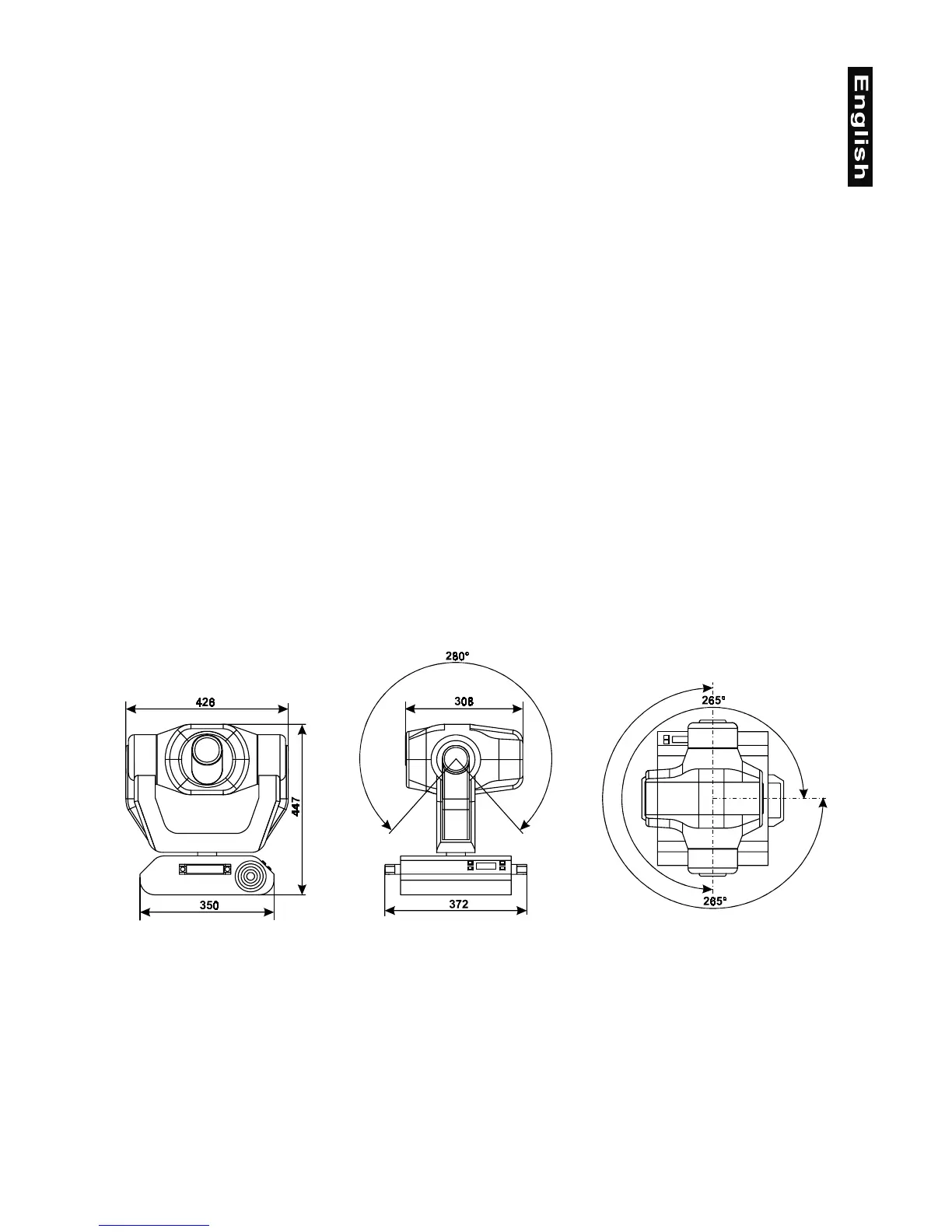

Dimensions and weight
Length of base (including handles): 372 mm
Width of yoke: 426 mm
Height (head horizontal): 447 mm
Weight (net): 16 kg
Shipping weight: 25 kg
