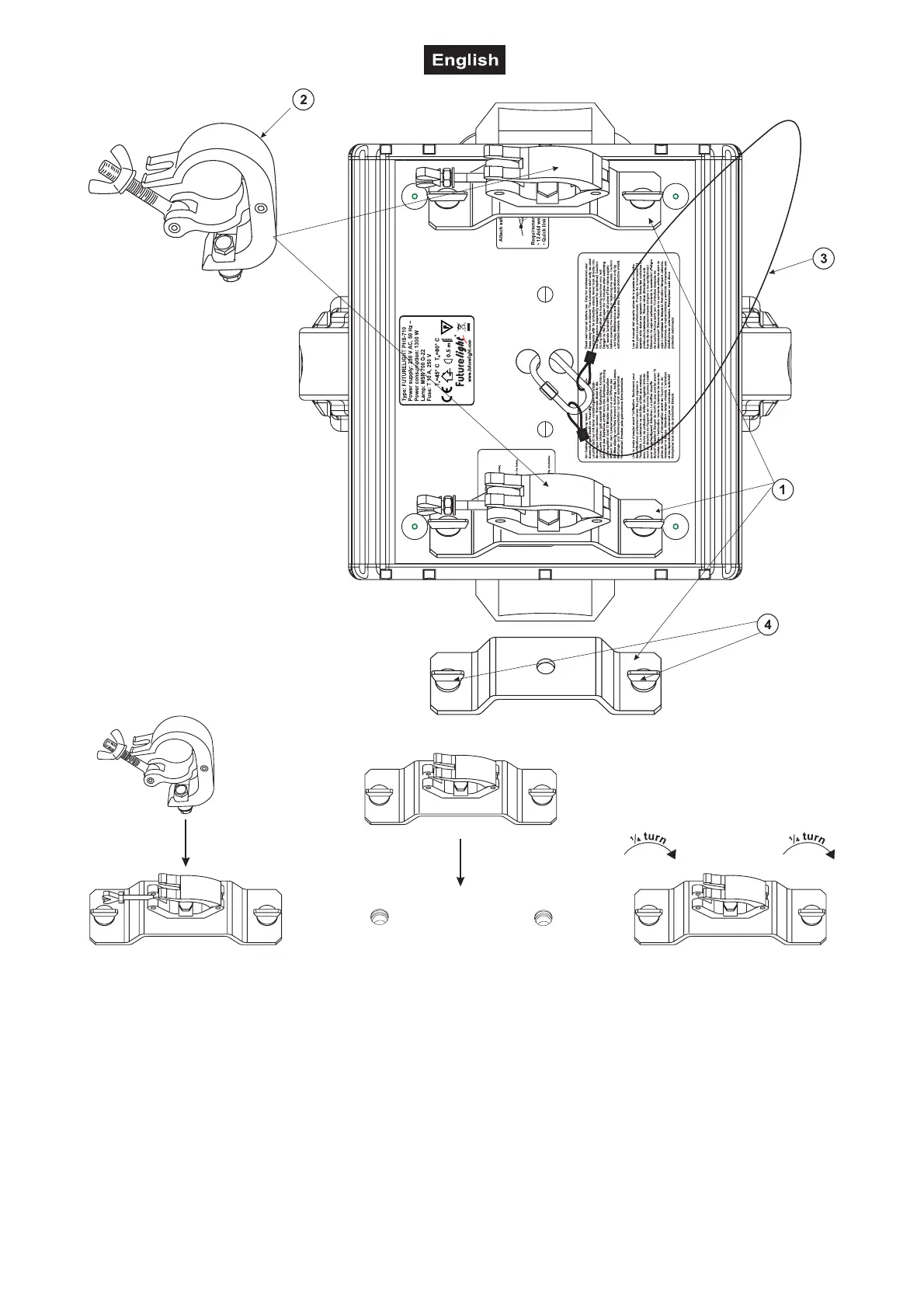

Screw one clamp each via a M12 screw and nut onto the Omega-holders.
Insert the quick-lock fasteners of the first Omega-holder into the respective holes on the bottom of the
device. Tighten the quick-lock fasteners fully clockwise. Install the second Omega-holder.
(1) Omega-holders
(2) Clamp
(3) Safety-rope
(4) Quick-lock fastener
