4. Setup
4.1 Function of the control channels - 16 bit protocol

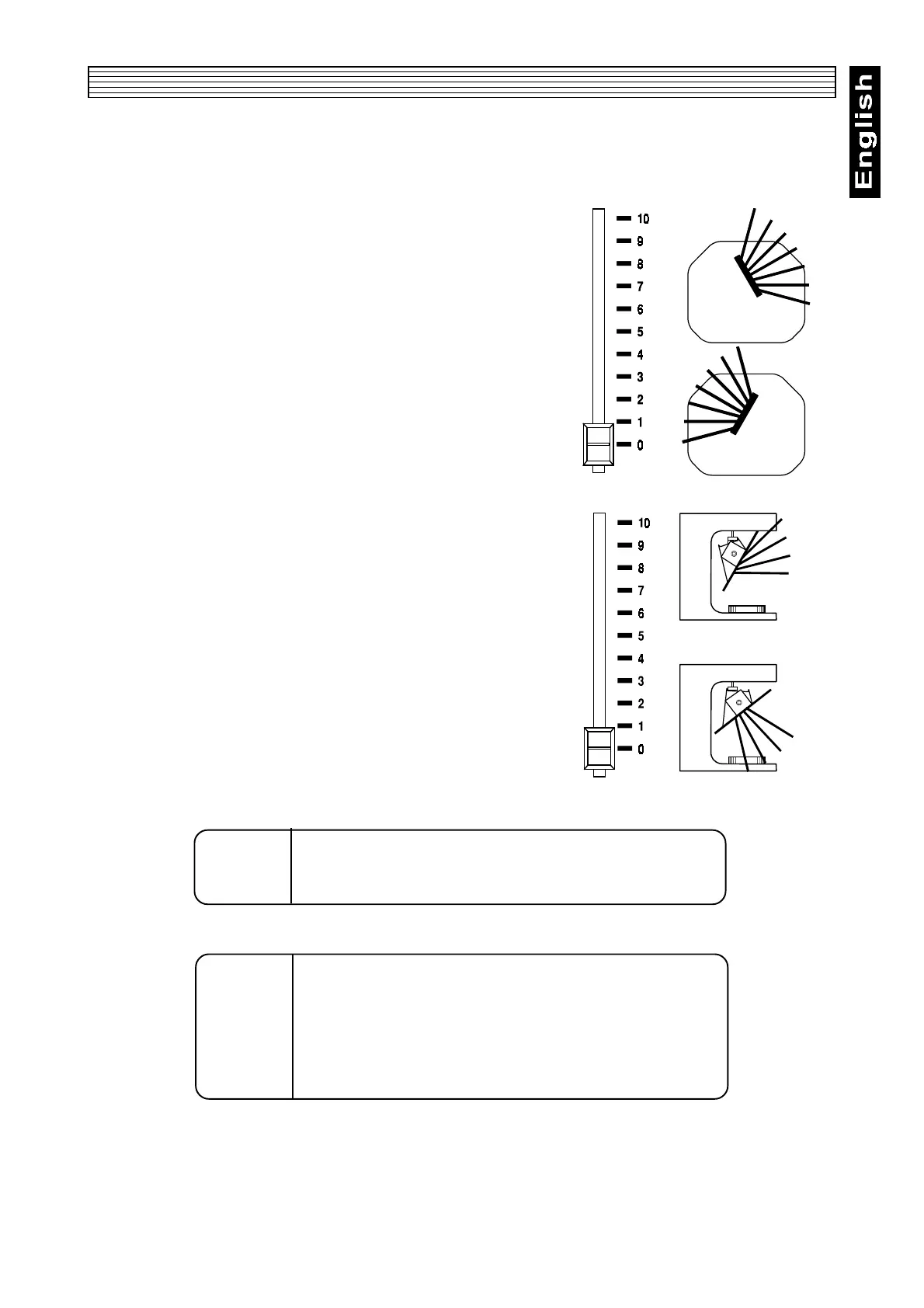

4.1.1 Channel 1 - Pan
Push slider up in order to move mirror horizontally (PAN).
Gradual mirror adjustment from one end of the slider to the
other (0-255, 128-center). The mirror can be stopped at
any position you wish.
4.1.2 Channel 2 - Tilt
Push slider up in order to move mirror vertically (TILT).
Gradual mirror adjustment from one end of the slider
to the other (0-255, 128-center). The mirror can be
stopped at any position you wish.
4.1.3 Channel 3 - Pan fine 16bit
4.1.4 Channel 4 - Tilt fine 16bit
4.1.5 Channel 5 - Speed of PAN / TILT movement
0 Max speed
249 Min. speed
250-255 Max. speed
4.1.6 Channel 6 - Switch On / Off the lamp, reset, speed control of cooling fan
0 open, max. speed of fan
127 open, min. speed of fan (silent operation)
from 0 to 127 - decreasing speed of fan
128 - 139 Switch On the lamp, reset, open position
140 - 239 No function
230 - 239 Switch Off the lamp after 3sec.
240 - 255 No function
4.1.7 Channel 7 - Colours
Linear colour change following the movement of the slider. In this way you can stop the colour-wheel in any
position - also between two colours creating double-coloured beams.
Between 128 and 190 and between 193 and 255, the colour-wheel rotates continuously the so-called "Rainbow"
effect.
