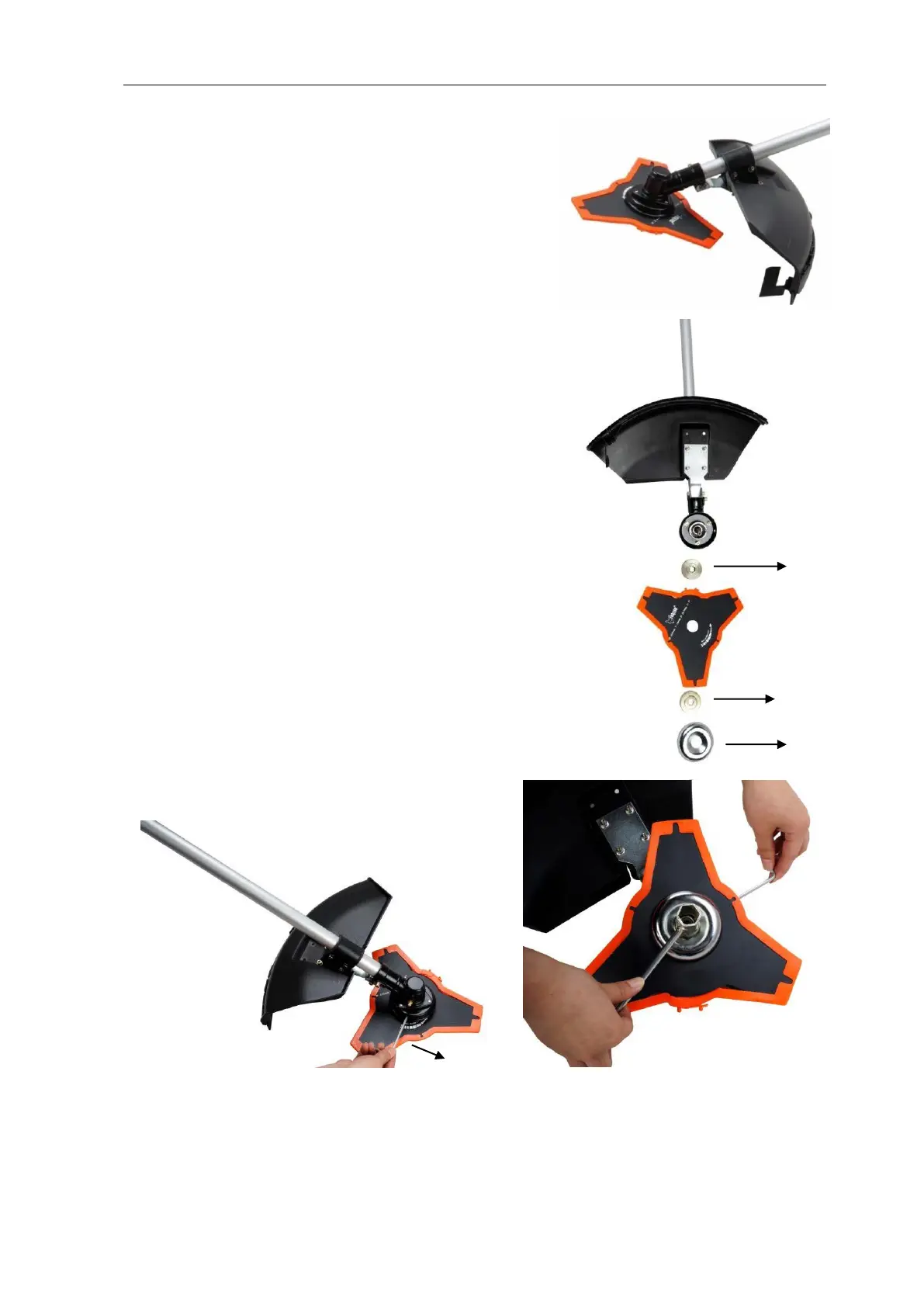

Installation of the protective shield
Install the protective shield on the driveshaft tube
against the gear housing. Tighten the holder of the
guard so that the blade guard does not move or slide
down during operation.
Mounting the metal blade
steps:
1. Place the key (1) in the hole at the gear head.
2. Remove the nut, the cover (4), and the
upper distance disk (3) from the gear shaft
3. Place the metal sheet on the lower
distance disk (2). Make sure that the marked
side of the cutting blade is in contact with the disc (2).
4. Slide the upper distance disk (3) over the
gear shaft on the metal sheet. Make sure the upper side
of the cutting blade is in contact with the
distance disk (3).
5. Put on the cover (4) and screw
the union nut tight with locked gear head
(see point 1)
