Original User Manual FUXTEC FX-BV140 rev03

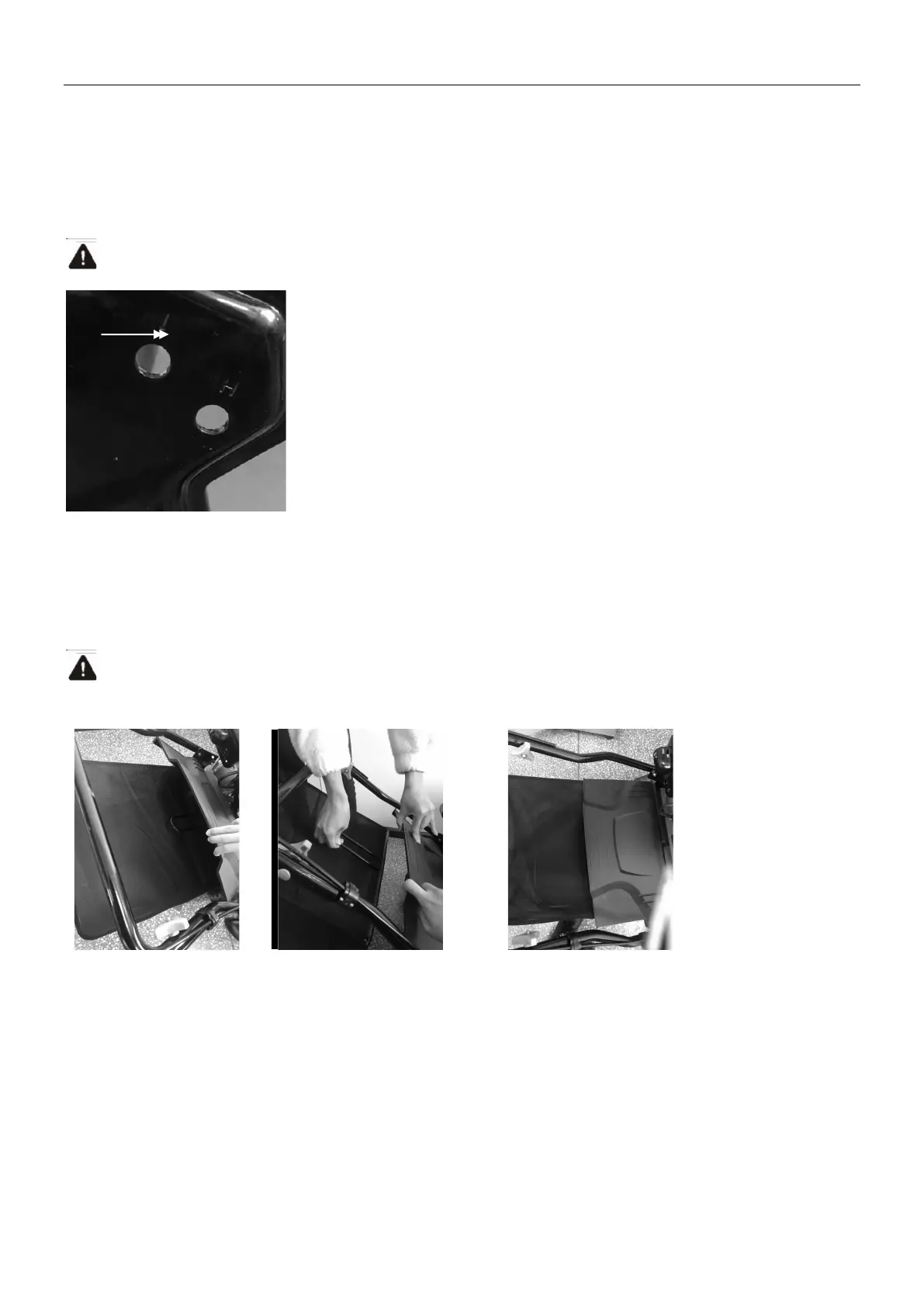

4.2 SETTING THE APPROPRIATE ANGLE
1. Unscrew the locking attachments with which the lower handle was fixed. (Fig.3A)
2. Move the lower handle up or down and adjust it to the desired height. With this scarifier, 2 setting heights
can be selected; at 2 height levels, the lower handle is highest to the ground, and at one height, it is lowest.
3. Set the correct height and then attach the lower handle with the locking attachments.
CAUTION: The left and right sides of the lower handle must be adjusted to the same height.
Fig.3A
4.3 MOUNTING AND DISMOUNTING THE GRASS COLLECTOR
To attach: Lift the rear cover and hang the grass collector on the rear of the scarifier. (Fig.4A/Fig.4B/Fig.4C).
To remove: Grip and lift the rear cover, remove grass collector.
CAUTION: Before connecting the grass collector to the device, make sure that the engine is switched off,
and the mowing unit is not rotating.
