Original User Manual FUXTEC FX-MS152 / FX-MS162
14

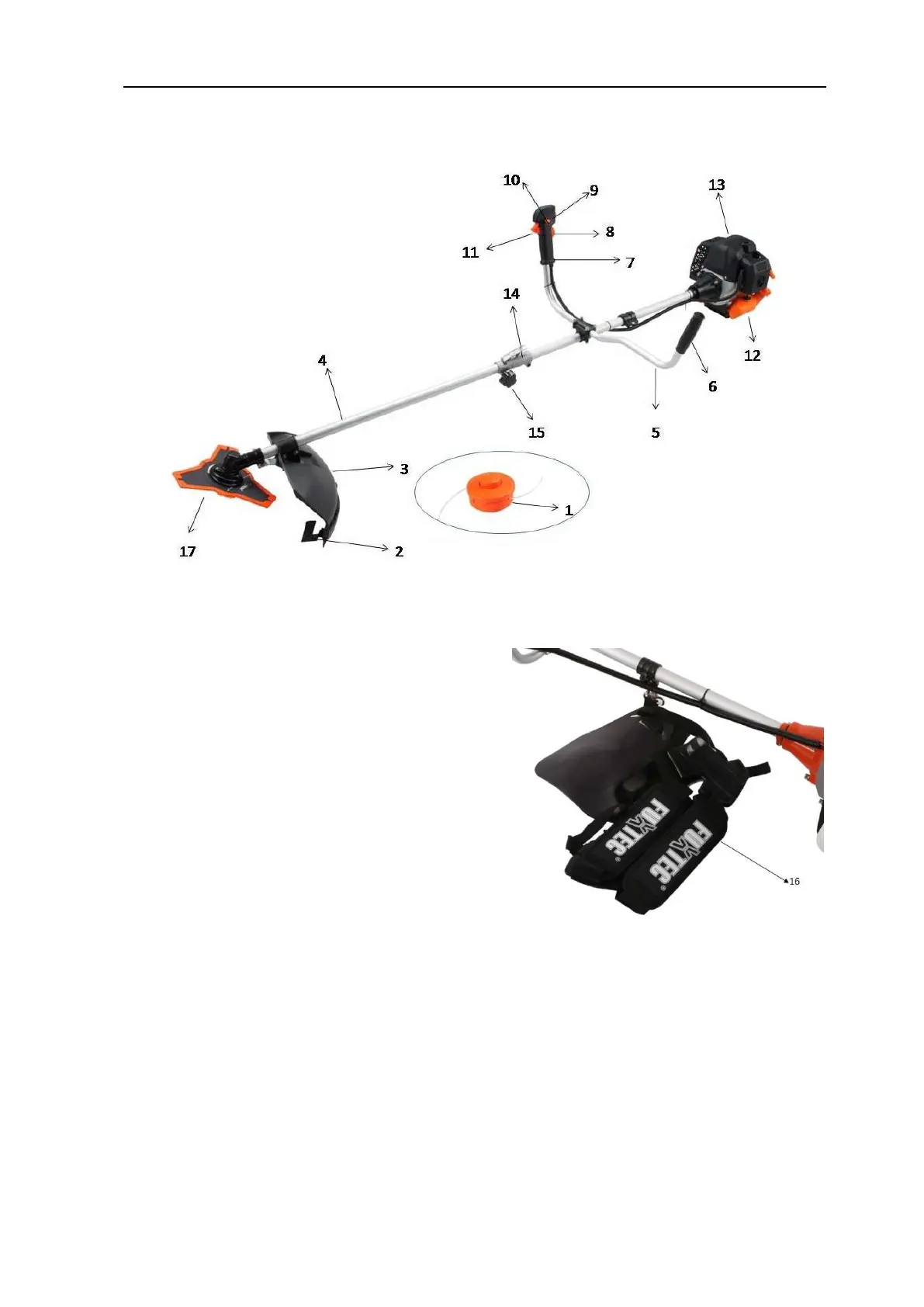

7. Component overview
1. Nylon thread head
2. Cutting blades
3. Shield
4. Drive axle
5. U-Handle
6. Auxiliary handle
7. Accelerator handle
8. Throttle lock*
9. Start/stop switch
10. Gas interlock**
11. Throttle
12. Tank
13. Exhaust pipe
14. Connector
15. Locking screw
16. Shoulder strap
17. 3-tooth metal blade
*8 The throttle lock prevents accidental acceleration of the engine. The throttle stick can only be pressed when
the throttle stick lock is pressed.
**10 Activate the throttle lock only when starting. During regular work, both hands must
continuously be on the handles.
