FUXTEC FX-MSP2.2 - Connecting the Spray Unit; Spray Nozzle Assembly

Original User Manual FUXTEC FX-MSP2.2
8

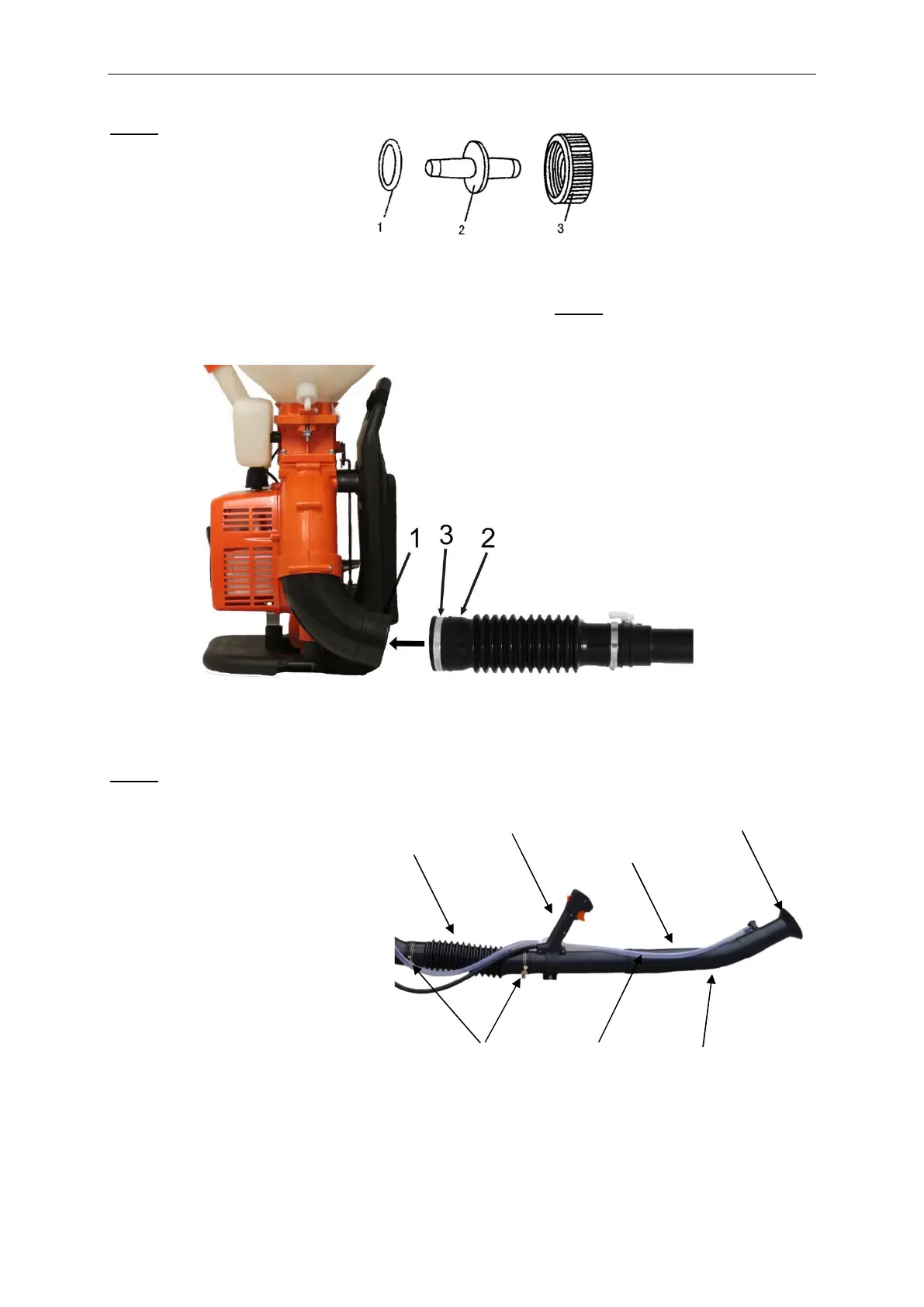

Fig. 3
1.Sealing
2.Connection
3.Fixing screw
3)Connect the spray unit to the device as shown in Fig. 4
2. Assembly of the spray nozzle
Fig. 5
1. Flexible hose
2. Spray pipe
3. Handle/gas handle
4. Pipe Elbow
5. Spray attachment chemical
6. Pipe clamps
7. Hose
1
3
2
6
4
5
7
