FXA 60CM - Upper Handle Assembly; Chute Assembly

12

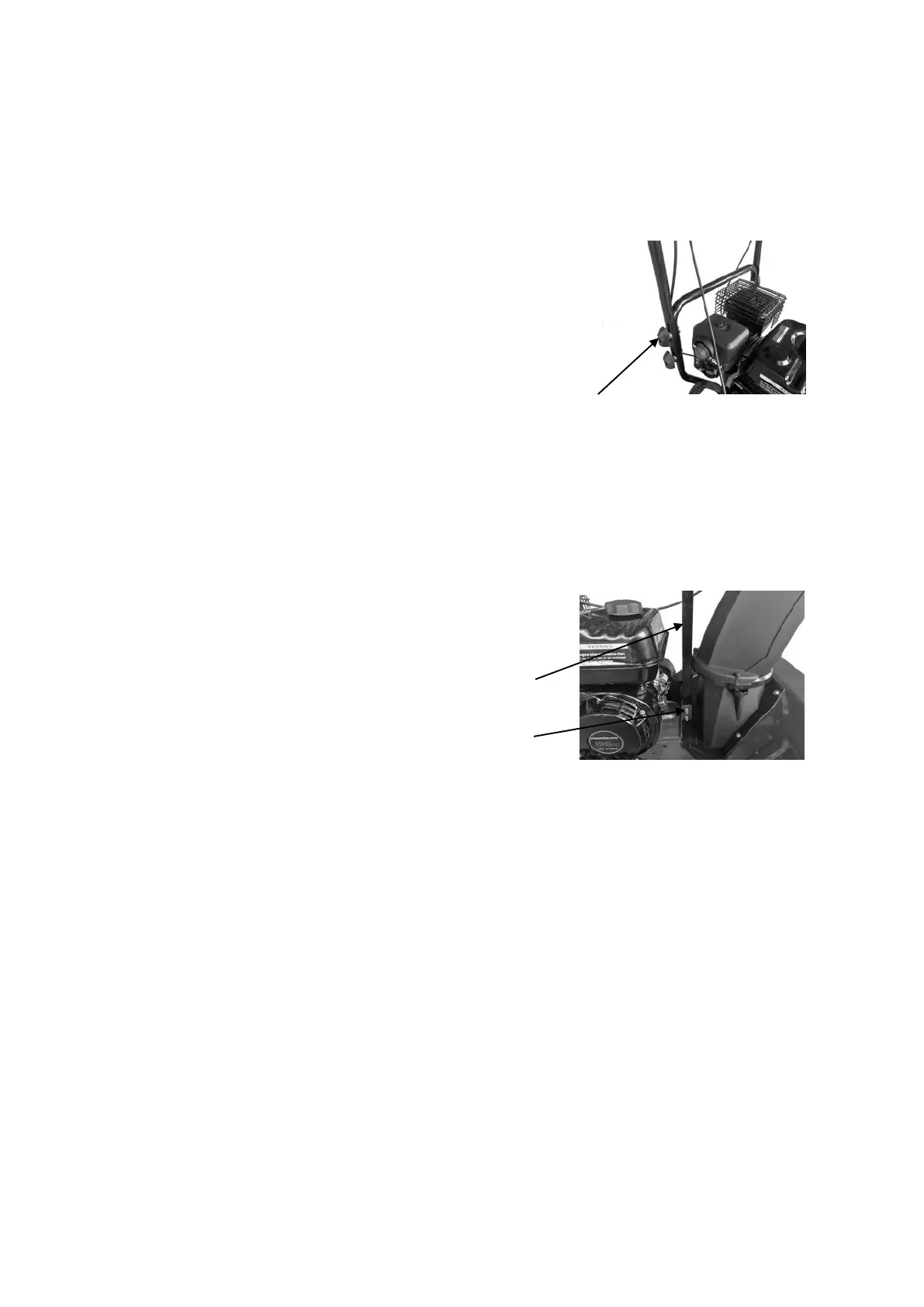

Step 1 – Upper handle assembly
1.Attached the upper handle to the lower handle using (4) knobs,
washers and bolts.
Knob,Washer and Bolt
Step 2 – Chute assembly
1.Install the discharge chute onto the chute flange on
the auger housing. The chute only rests on the
flange.
2
1
2.Using provided 2 bolts and nuts (1) to lock chute direction support column (2) in position.
