FXA 60CM - Knowing Your Snow Thrower; Technical Specifications

9
II-KNOWING YOUR SNOW THROWER
DB7004 Technical Specification
Gasoline Snowthrower
Displacement: 196 cm
3
Power:3.8kW
Clearing Width: 600mm;
Clearing thickness: Approx.406mm;
Throwing distance: about 8m;
Throwing Operation: single stage;
Walking speed: 1 forward;
Discharge Chute: 180 Degree;
Chute Deflector: 70 degree;

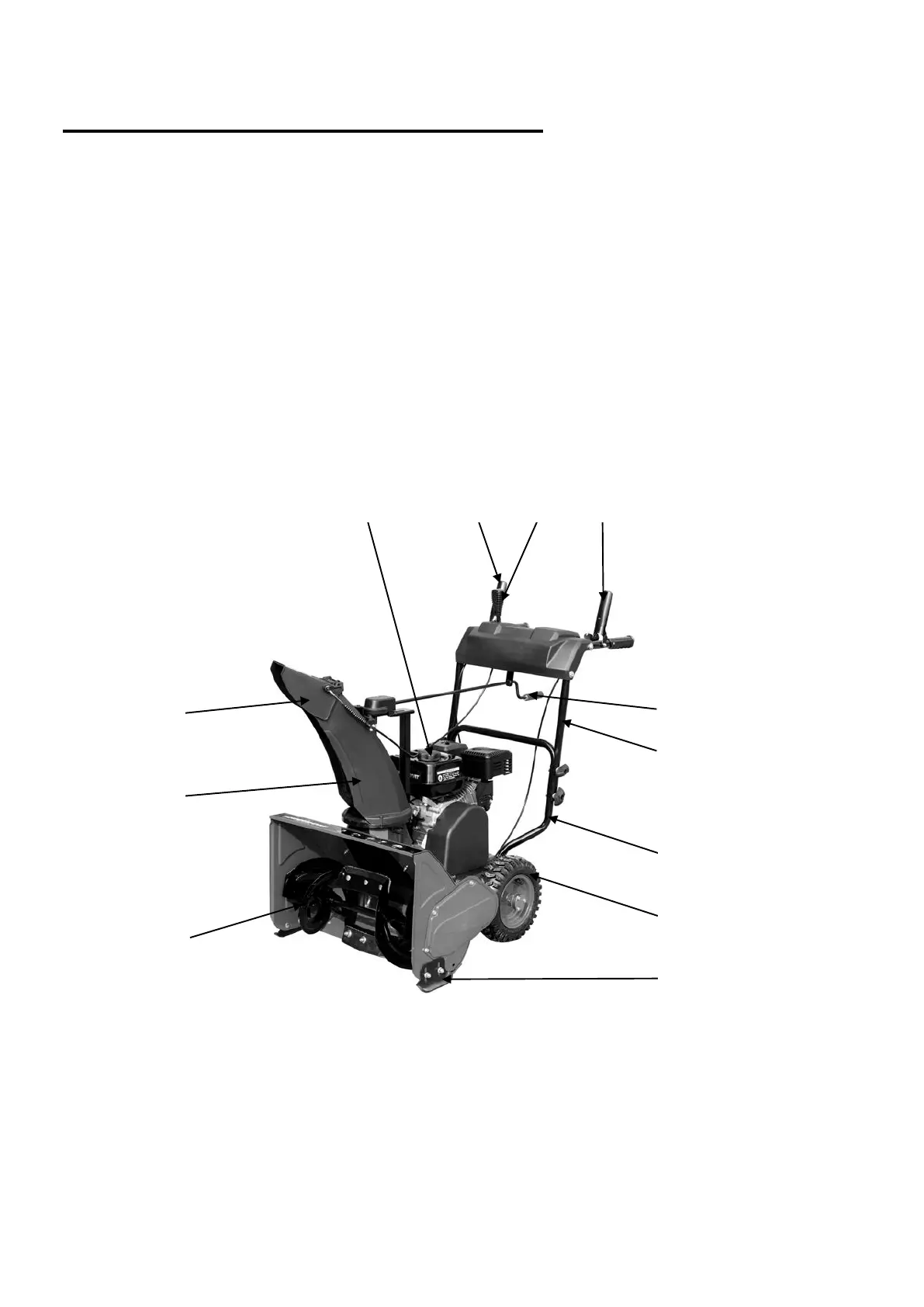

Use the illustrations below to become familiar with the locations and functions of the various
components and controls of this snow thrower.
1 2 3 4
10
5
6
11
7
8
12
9
1 Fuel Tank Cap 8 Tire
2 Drive Control Handle 9 Skid Shoe
3 Chute Deflector Lever 10 Discharge Chute Deflector
4 Auger Control Handle 11 Discharge Chute
5 Chute Rotation Handle 12 Auger
6 Upper Handle
7 Lower Handle
