Fyne Audio F1 Series User Manual

15
LINK CABLES IN PLACE
LEFT SPEAKER
POWER AMPLIFIER
LEFT
-
+
RIGHT
-
+
TO RIGHT
SPEAKER
LINK CABLES REMOVED
LEFT SPEAKER
POWER AMPLIFIER
LEFT
-
+
RIGHT
-
+
TO RIGHT
SPEAKER
LINK CABLES REMOVED
LEFT SPEAKER
TO 'GROUND' OR 'EARTH'
CONNECTION ON AMPLIFIER
(OPTIONAL)
TO RIGHT
SPEAKER
TO 'GROUND' OR 'EARTH'
CONNECTION ON AMPLIFIER
(OPTIONAL)
TO 'GROUND' OR 'EARTH'
CONNECTION ON AMPLIFIER
(OPTIONAL)
LOW FREQUENCY
POWER AMPLIFIER
LEFT
-
+
RIGHT
-
+
HIGH FREQUENCY
POWER AMPLIFIER
LEFT
-
+
RIGHT
-
+
TO RIGHT
SPEAKER
FIG 7. PRESENCE ADJUSTMENT

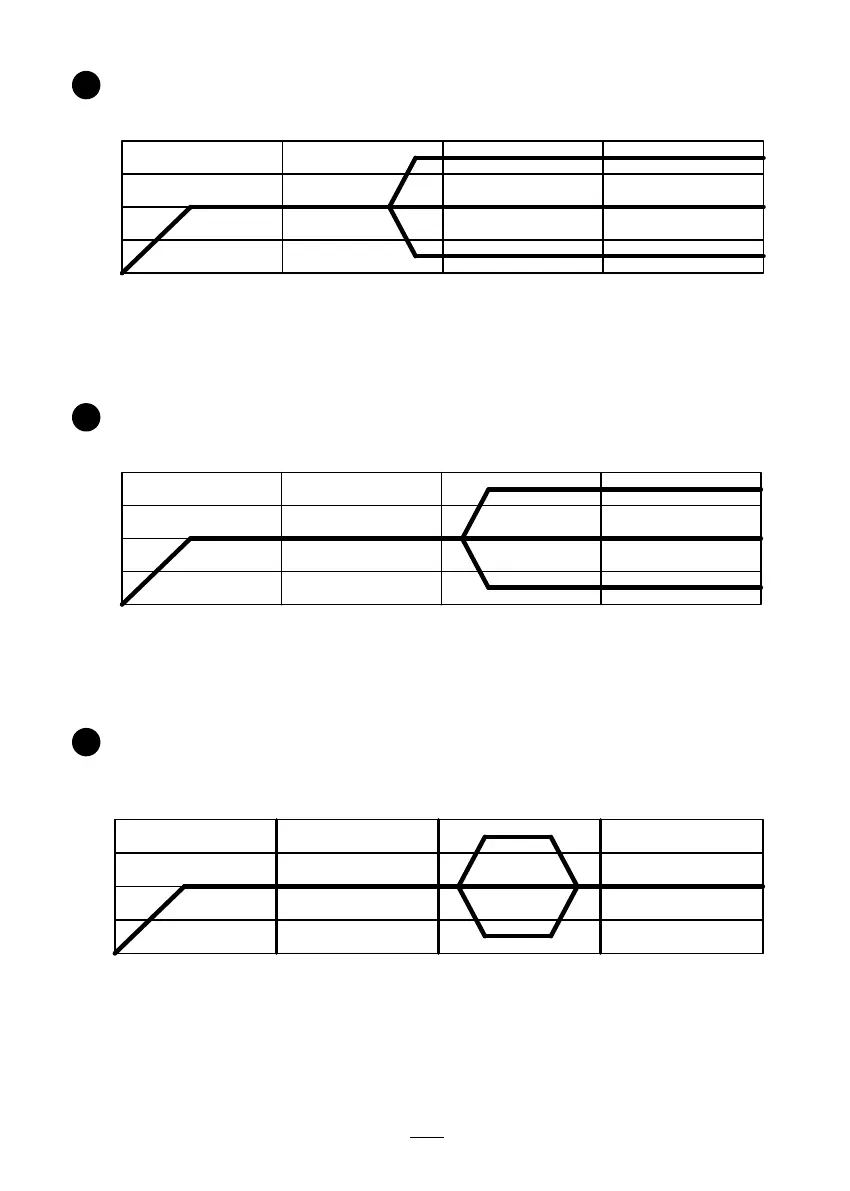

FIG 6. HF ENERGY ADJUSTMENT
+4 dB
+2 dB
0 dB
-2 dB
-4 dB
100 Hz 1 kHz 10 kHz 20 kHz
+4 dB
+2 dB
0 dB
-2 dB
-4 dB
100 Hz 1 kHz 10 kHz 20 kHz
0.5 METRE
MINIMUM
1.5 TO 4.5 METRES
1 METRE
MINIMUM
LINK CABLES IN PLACE
LEFT SPEAKER
POWER AMPLIFIER
LEFT
-
+
RIGHT
-
+
TO RIGHT
SPEAKER
LINK CABLES REMOVED
LEFT SPEAKER
POWER AMPLIFIER
LEFT
-
+
RIGHT
-
+
TO RIGHT
SPEAKER
LINK CABLES REMOVED
LEFT SPEAKER
TO 'GROUND' OR 'EARTH'
CONNECTION ON AMPLIFIER
(OPTIONAL)
TO RIGHT
SPEAKER
TO 'GROUND' OR 'EARTH'
CONNECTION ON AMPLIFIER
(OPTIONAL)
TO 'GROUND' OR 'EARTH'
CONNECTION ON AMPLIFIER
(OPTIONAL)
LOW FREQUENCY
POWER AMPLIFIER
LEFT
-
+
RIGHT
-
+
HIGH FREQUENCY
POWER AMPLIFIER
LEFT
-
+
RIGHT
-
+
TO RIGHT
SPEAKER
FIG 7. PRESENCE ADJUSTMENT
FIG 6. HF ENERGY ADJUSTMENT
+4 dB
+2 dB
0 dB
-2 dB
-4 dB
100 Hz 1 kHz 10 kHz 20 kHz
+4 dB
+2 dB
0 dB
-2 dB
-4 dB
100 Hz 1 kHz 10 kHz 20 kHz
0.5 METRE
MINIMUM
1.5 TO 4.5 METRES
1 METRE
MINIMUM
12
HF ENERGY ADJUSTMENT (F1-10S & F1-12S)
14
PRESENCE ADJUSTMENT
LINK CABLES IN PLACE
LEFT SPEAKER
POWER AMPLIFIER
LEFT
-
+
RIGHT
-
+
TO RIGHT
SPEAKER
LINK CABLES REMOVED
LEFT SPEAKER
POWER AMPLIFIER
LEFT
-
+
RIGHT
-
+
TO RIGHT
SPEAKER
LINK CABLES REMOVED
LEFT SPEAKER
TO 'GROUND' OR 'EARTH'
CONNECTION ON AMPLIFIER
(OPTIONAL)
TO RIGHT
SPEAKER
TO 'GROUND' OR 'EARTH'
CONNECTION ON AMPLIFIER
(OPTIONAL)
TO 'GROUND' OR 'EARTH'
CONNECTION ON AMPLIFIER
(OPTIONAL)
LOW FREQUENCY
POWER AMPLIFIER
LEFT
-
+
RIGHT
-
+
HIGH FREQUENCY
POWER AMPLIFIER
LEFT
-
+
RIGHT
-
+
TO RIGHT
SPEAKER
FIG 7. PRESENSE ADJUSTMENT
FIG 6. HF ENERGY ADJUSTMENT
+4 dB
+2 dB
0 dB
-2 dB
-4 dB
100 Hz 1 kHz 10 kHz 20 kHz
+4 dB
+2 dB
0 dB
-2 dB
-4 dB
100 Hz 1 kHz 10 kHz 20 kHz
0.5 METRE
MINIMUM
1.5 TO 4.5 METRES
1 METRE
MINIMUM
13
HF ENERGY ADJUSTMENT (F1-8S)

Fyne Audio F1 Series Specifications

General

Series	F1 Series
Nominal Impedance	8 Ohms
Woofer	Multi-fibre cone
Cabinet	Birch
Finish Options	Piano Black, Walnut
