Fyne Audio F1 Series User Manual

7
LINK CABLES IN PLACE
LEFT SPEAKER
POWER AMPLIFIER
LEFT
-
+
RIGHT
-
+
TO RIGHT
SPEAKER
LINK CABLES REMOVED
LEFT SPEAKER
POWER AMPLIFIER
LEFT
-
+
RIGHT
-
+
TO RIGHT
SPEAKER
LINK CABLES REMOVED
LEFT SPEAKER
TO 'GROUND' OR 'EARTH'
CONNECTION ON AMPLIFIER
(OPTIONAL)
TO RIGHT
SPEAKER
TO 'GROUND' OR 'EARTH'
CONNECTION ON AMPLIFIER
(OPTIONAL)
TO 'GROUND' OR 'EARTH'
CONNECTION ON AMPLIFIER
(OPTIONAL)
LOW FREQUENCY
POWER AMPLIFIER
LEFT
-
+
RIGHT
-
+
HIGH FREQUENCY
POWER AMPLIFIER
LEFT
-
+
RIGHT
-
+
TO RIGHT
SPEAKER
FIG 7. PRESENCE ADJUSTMENT
FIG 6. HF ENERGY ADJUSTMENT
+4 dB
+2 dB
0 dB
-2 dB
-4 dB
100 Hz 1 kHz 10 kHz 20 kHz
+4 dB
+2 dB
0 dB
-2 dB
-4 dB
100 Hz 1 kHz 10 kHz 20 kHz

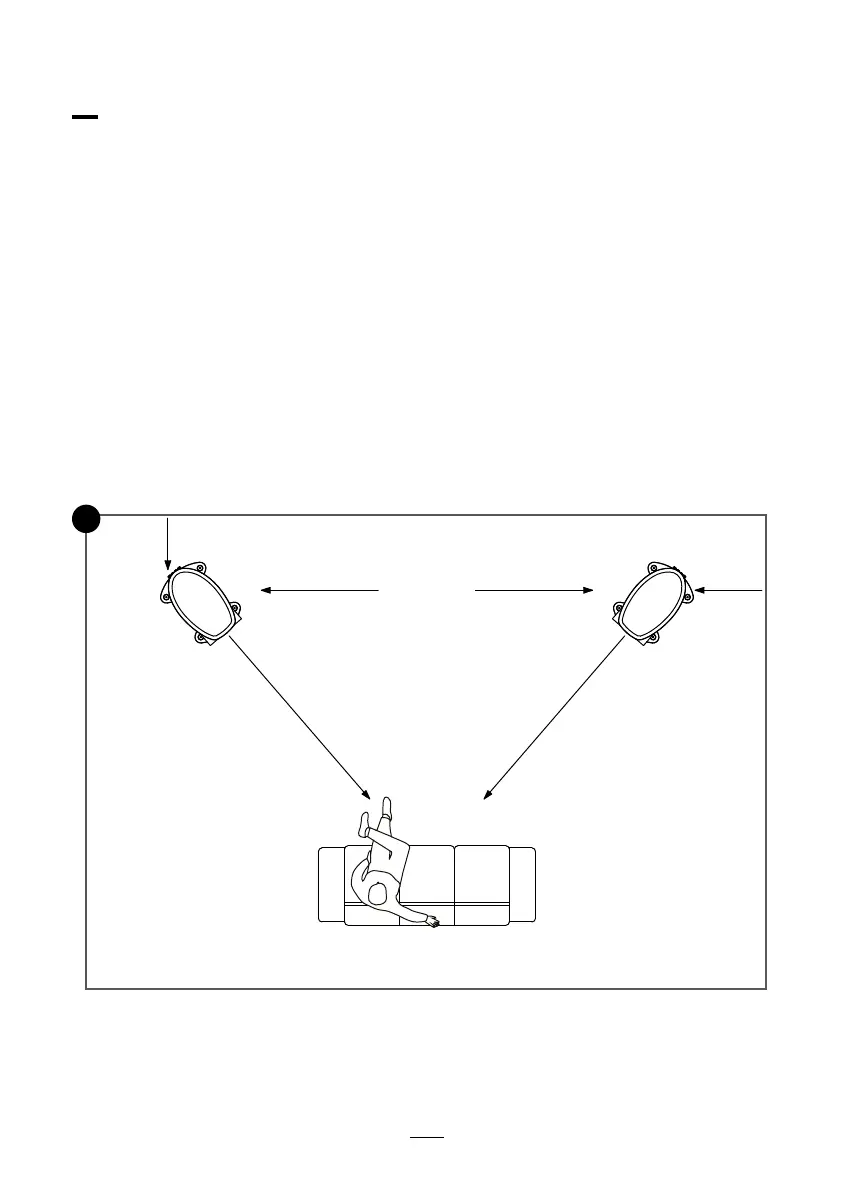

0.5 METRE
MINIMUM
1.5 TO 4.5 METRES
1 METRE
MINIMUM
1
3 POSITIONING

should be performed by two people to avoid

it slip or fall. With the loudspeaker still

positioning the loudspeakers with their rear

The proximity of a side wall should be no

proximity to the

bass performance and stereo imaging.

walls will be detrimental to the stereo image

toeing in the cabinets towards the listening


less sensitive to boundary conditions than
with a conventional design

Fyne Audio F1 Series Specifications

General

Series	F1 Series
Nominal Impedance	8 Ohms
Woofer	Multi-fibre cone
Cabinet	Birch
Finish Options	Piano Black, Walnut
