Fysic FX-3950 - Wall-Mounting

6

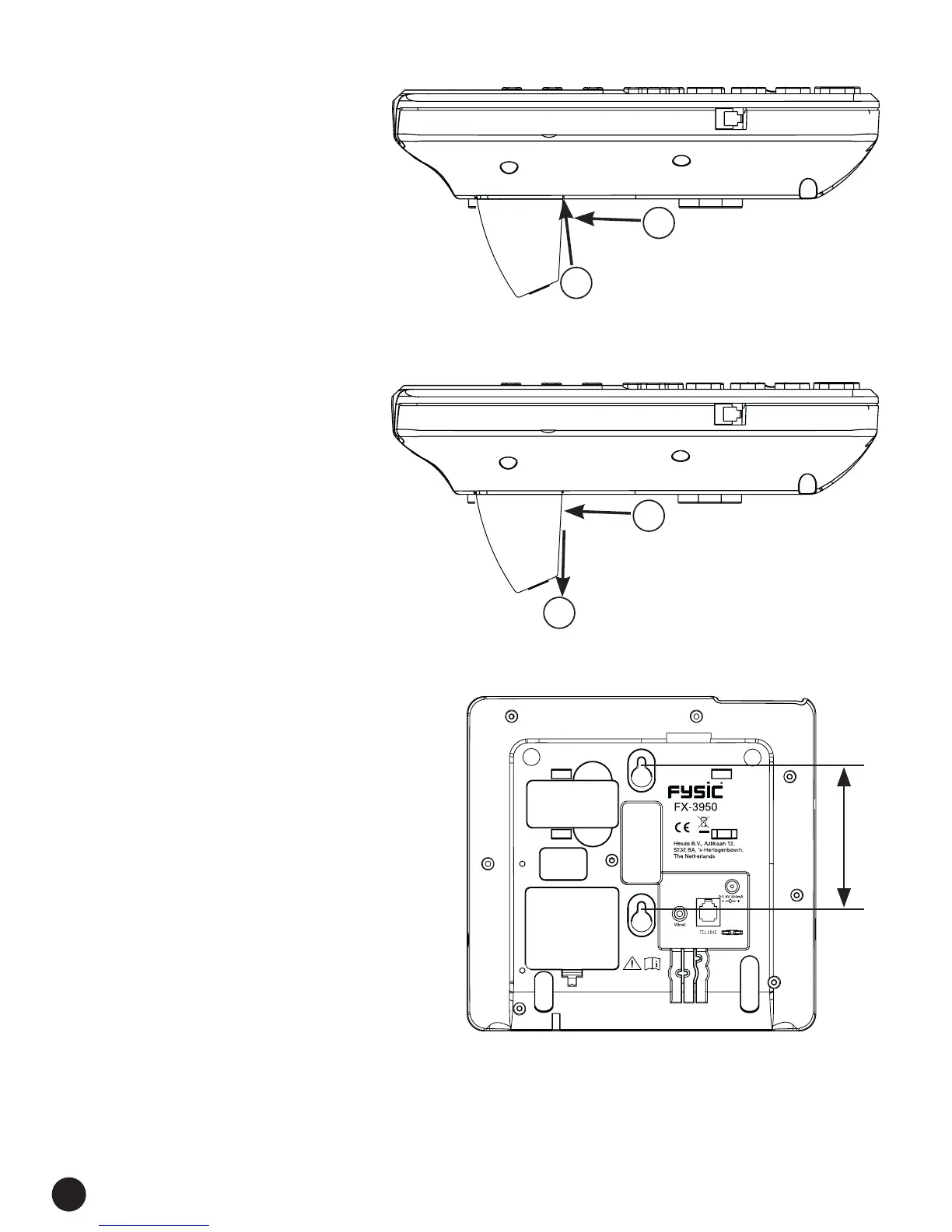

2. now push the other side of the stand into the
bottom until
the 2 clips lock
(see 2), if nec-
essary depress
these clips some-
what (see 3)
When you want to
detach the stand
again, press at 3
and remove in the
direction of 4.
4.2 Wall-mounting:
1. in a vertical line, drill
2 holes at a distance
of 8.4 cm from each
other and insert plugs
and screws; let the
head of the screws
protrude for 5 mm
8,4cm
3
4
2
3
