5 ． Alarm Input and Output

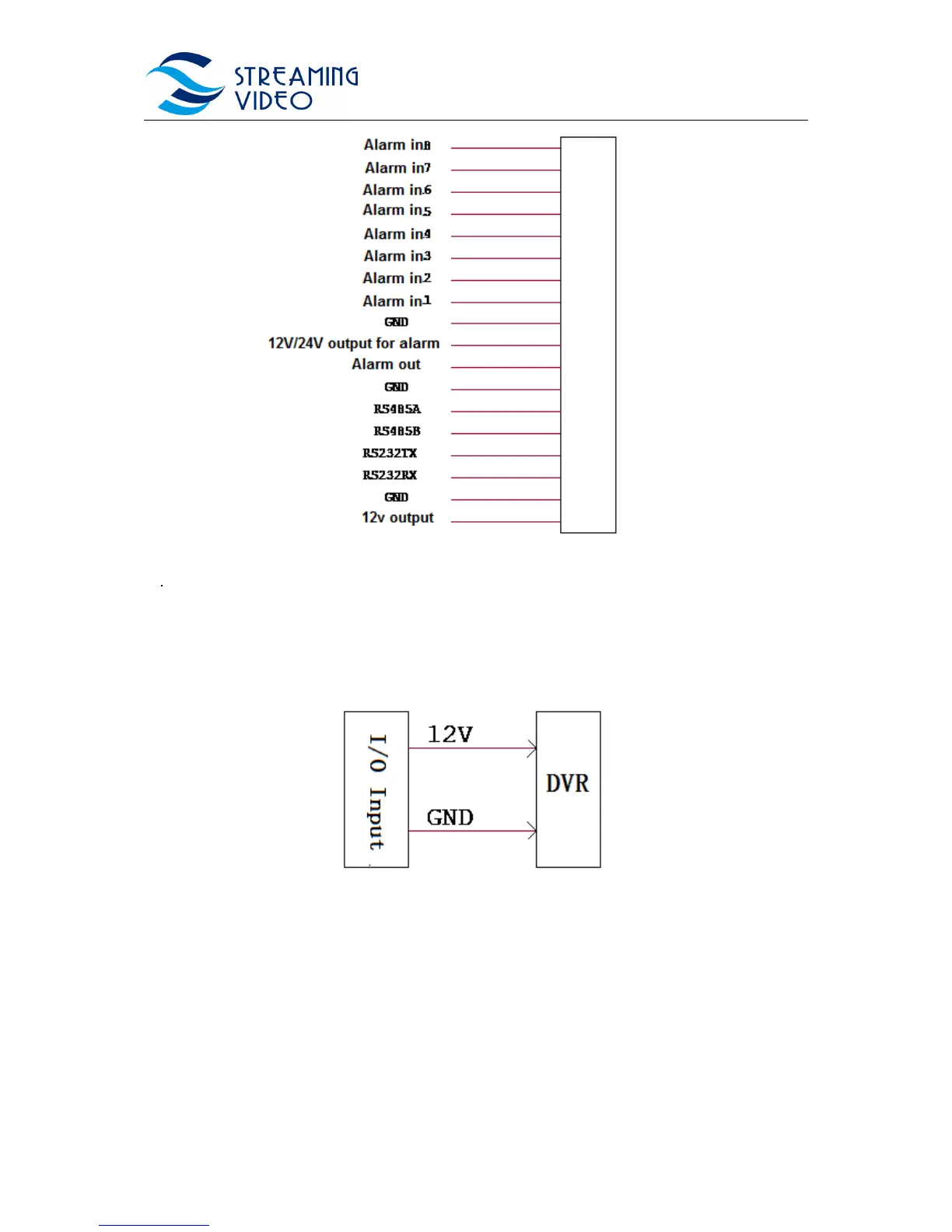

There are 8 sets alarm input connector and 1 set output for this DVR. Alarm input is for
connection IR annunciator, fog sensor. The connection diagram of DC alarm inout as following:
Connection diagram of AC alarm input as following:
